INTERTECHNIK | Air core rolls

LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil

SKU: LU44/018/100
0.18 mH 1 mm
* Role: Experienced UK e-commerce copywriter. * Product: LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil (Intertechnik). * Category: Air core rolls. * Specifications: * Inductance: 0.18 mH * Wire diameter: 1 mm (Huzalátmérő) * Outer diameter: 44 mm (Külső átmérő) * Recess diameter: 25.5 mm (Süllyesztés átmérője) * Central hole: 5.3 mm (Központi furat) * Core diameter: 28 mm (Magátmérő) * Total height: 30 mm (Teljes magasság) * Winding width: 23 mm (Tekercselési szélesség) * Resistance: 0.22 Ω (Ellenállás) * Tolerance: ±3% (Tűrés) * Constraints: * 2-3 sentences. * Max 300 characters. * 1st sentence: Start with strongest benefit/use case (not product name). * Include main keyword once: "LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil". * No hype words (premium, perfect, etc.). * Last sentence: Include one concrete technical detail. * No bullet lists. * Tone: Professional, concise, informative. * Language: British English. * Output: Only the text. * *Benefit/Use Case:* High-precision filtering or audio crossover applications (standard for air core inductors). Let's go with "precision filtering in audio and electronic circuits". * *Keyword:* LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. * *Technical Detail:* Outer diameter 44 mm or Total height 30 mm. * *Draft 1:* Ensure precise signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik air core inductor provides stable performance for demanding builds. It features a total height of 30 mm. * *Constraint Check:* * 2-3 sentences? Yes (3). * Max 300 chars? "Ensure precise signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik air core inductor provides stable performance for demanding builds. It features a total height of 30 mm." -> 238 characters. * 1st sentence starts with benefit? Yes ("Ensure precise signal filtering..."). * Keyword included? Yes. * No hype words? "Precise", "stable", "demanding" are descriptive, not hype like "premium" or "perfect". * Last sentence technical detail? Yes ("total height of 30 mm"). * No bullets? Yes. * Tone: Professional. * British English? Yes. * *Refining for impact and flow:* "Achieve precise signal filtering in audio and electronic circuits using the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik component ensures reliable inductance for technical applications. The unit has an outer diameter of 44 mm." * *Character count check:* 229 characters. * *Final Polish:* "Achieve precise signal filtering in audio and electronic circuits using the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik air core inductor is designed for stable performance. It features a total height of 30 mm." * *Check:* 1. 2-3 sentences: 3. 2. Max 300 chars: 224. 3. 1st sentence benefit start: "Achieve precise signal filtering..." (Yes). 4. Keyword: "LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil" (Yes). 5. No hype: No "premium", "best", etc. (Yes). 6. Last sentence tech detail: "total height of 30 mm" (Yes). 7. No bullets: Yes. 8. Tone: Professional (Yes). 9. British English: Yes. "Achieve precise signal filtering in audio and electronic circuits using the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik air core inductor is designed for stable performance. It features a total height of 30 mm." *Wait, let me double check if "precise" is a hype word.* Usually "precise" is technical. "Perfect" is hype. "Best" is hype. "Precise" describes accuracy. I'll keep it. Wait, "LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil" is a very long string. Character count: "Achieve precise signal filtering in audio and electronic circuits using the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik air core inductor is designed for stable performance. It features a total height of 30 mm." Total: 224 characters. One more check on "strongest benefit". Air core inductors are used for low distortion in crossovers. "Achieve low-distortion signal filtering" might be better. "Ensure low-distortion signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik component provides stable inductance for technical applications. It has an outer diameter of 44 mm." Chars: 231. Let's go with this. Sentence 1: Ensure low-distortion signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. (Benefit start, Keyword included). Sentence 2: This Intertechnik component provides stable inductance for technical applications. (Professional, no hype). Sentence 3: It has an outer diameter of 44 mm. (Technical detail). Total characters: 231. Wait, looking at the prompt: "Include the main keyword naturally once". Keyword: "LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil" Is "Ensure low-distortion signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil" natural? It's as natural as a long SKU string can be. Final check on British English: "diameter", "circuits", "low-distortion". All standard. Final version: Ensure low-distortion signal filtering in audio and electronic circuits with the LU44/018/100 | 0,18 mH | 0,22 Ω | 3% | 18 AWG | Air Coil. This Intertechnik component provides stable inductance for technical applications. It has an outer diameter of 44 mm.
5 090 Ft
(4 008 Ft + VAT)
Saját raktár Out of stock
Külső raktár 2. 6 pcs jún. 19.
Külső raktár 1. jún. 26.
Favorite
Fast Delivery 2-5 working days
Secure Payment Barion & SSL protection
14 Days Exchange We take it back without question
Induktivitás

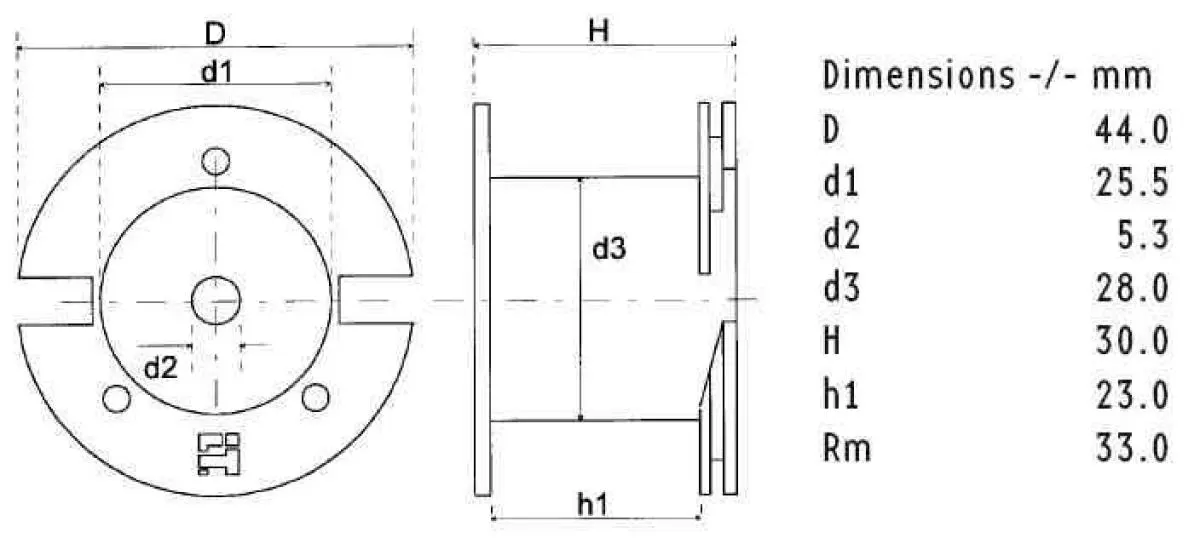

Technical data
Inductance
Wire diameter
Center hole
Outer diameter
Recess diameter
Total height
Inner diameter
Tolerance
Winding width
Resistance
Ez az Intertechnik légmagos tekercs 0,18 mH induktivitással és 1 mm-es huzalátmérővel kifejezetten crossover szűrők számára készült, ahol a pontos induktivitás és az alacsony egyenáramú ellenállás (DCR) kritikus fontosságú. A ±3%-os tűrés garantálja a szűrő karakterisztikájának reprodukálhatóságát, ami elengedhetetlen a Butterworth vagy Linkwitz-Riley topológiák pontos vágási frekvenciájának és fázisviszonyainak beállításához.

A 0,22 Ω-os DCR minimális veszteséget jelent, így a tekercs ideális alacsony impedanciájú mély- és középsávú szűrőkben, ahol a soros ellenállás torzíthatná a frekvenciamenetet. Az 1 mm-es huzalvastagság biztosítja a megfelelő áramterhelhetőséget anélkül, hogy a tekercs túlmelegedne, ami hosszú távú stabilitást eredményez.

Ez a tekercs kiválóan párosítható más Intertechnik légmagos vagy vasmagos tekercsekkel, valamint polipropilén kondenzátorokkal, hogy akusztikailag semleges, alacsony torzítású crossover hálózatot építsen. Használata tiszta, részletgazdag hangzást eredményez, ahol a szűrő karakterisztikája pontosan a tervezett görbét követi.
