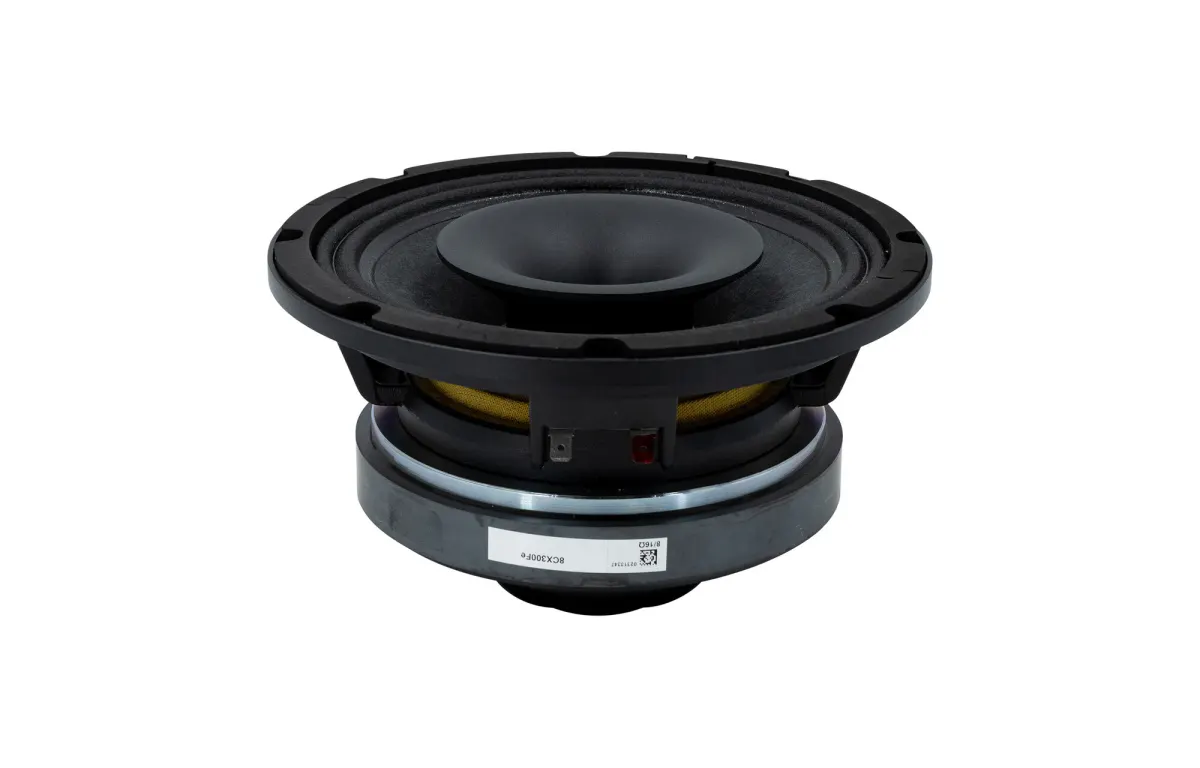

Beyma 8CX300Fe Coaxial Woofer

Name: Beyma 8CX300Fe mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 8CX300Fe
Price: 87890.00 HUF
Availability: LimitedAvailability

SKU: 8CX300Fe

254 mm subwoofer, 44.5 mm compression driver mm Woofer 8 Ω, Tweeter 16 Ω

Achieve powerful, full-range sound in a compact installation with this coaxial design that integrates a 254 mm woofer and a 44.5 mm compression driver. The 8-inch driver delivers a sensitivity of 95 dB SPL at 1 metre with 2.83 V input, ensuring efficient performance. Total Q factor is 0.55.

87 890 Ft

(69 205 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 1 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	254 mm subwoofer, 44.5 mm compression driver mm
Impedance	Woofer 8 Ω, Tweeter 16 Ω
Sensitivity (SPL at 1 m / 2.83 V)	95 dB
Continuous program performance	Subwoofer 600 W, Tweeter 100 W
Resonance frequency (Fs)	89 Hz

Maximum linear deflection (Xmax)	6 mm
Total Q (Qts)	0.55
Electromagnetic Q (Qes)	0.63
Mechanical Q (Qms)	4.2
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	0.2 mH
BL product (BL)	9.6 T·m
The surface area of the cone (Sd)	22 cm²
Equivalent volume (Iron)	10.8 l
Moving mass with air load (Mms)	20 g
Mechanical compliance of the suspension (Cms)	0.158 mm/N
Drive mechanical losses (RMS)	2.7 kg/s
Volume of displacement (Vd)	132 cm³
Woofer type	DL300 Audio DAC
Voice coil diameter	63.5 mm woofer, 44.5 mm compression driver mm
Magnetic material	Ferrite
Dimensions (mm)	211.5 mm
Depth	126 mm

The Beyma 8CX300Fe Coaxial Woofer represents a sophisticated solution for those seeking exceptional full-range audio performance within a compact footprint. This expertly engineered driver seamlessly integrates a 254 mm woofer with a 44.5 mm compression driver, delivering a cohesive soundstage that belies its size. Ideal for high-end car audio installations, professional sound reinforcement, or custom home theatre systems, this coaxial design simplifies installation while ensuring precise time alignment and phase coherence between the low and high-frequency sections.

Technically, the 8CX300Fe boasts an impressive sensitivity of 95 dB (1m/2.83V), ensuring efficient power handling and dynamic output. The woofer features a maximum linear excursion (Xmax) of 6 mm and a displacement volume (Vd) of 132 cm³, contributing to robust bass reproduction. Electrical parameters include a DC resistance (Re) of 5.2 ohms, a total Q factor (Qts) of 0.55, and a low voice coil inductance (Le) of 0.2 mH, promoting controlled, accurate response. The ferrite magnet structure and robust build quality underscore Beyma’s commitment to reliability. With an impedance of 8 ohms for the woofer section, this coaxial driver is a versatile and powerful choice for discerning audio enthusiasts.
