VOLT LOUDSPEAKERS | Coaxial subwoofer

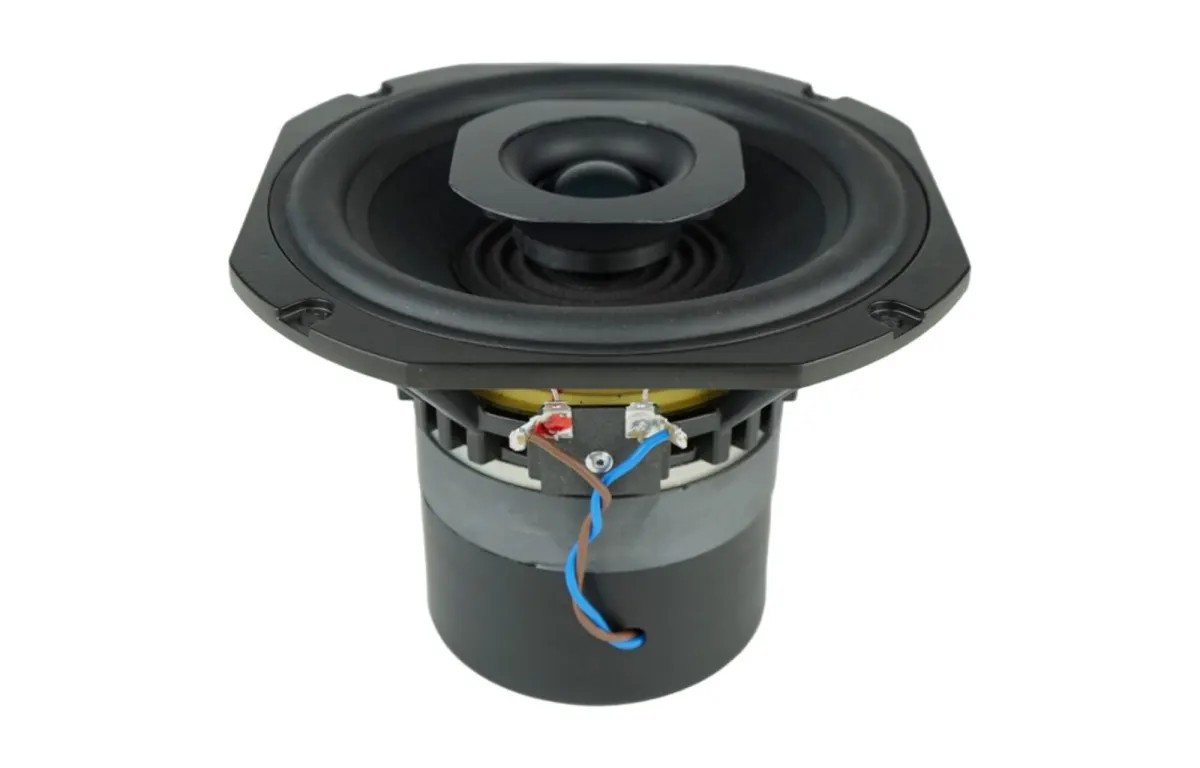

Volt Loudspeakers CX1601 Coaxial Woofer

Name: Volt Loudspeakers Loudspeakers mélysugárzó | HQ AudioParts
Brand: Volt Loudspeakers
SKU: CX1601
Price: 129990.00 HUF
Availability: LimitedAvailability

SKU: CX1601

165.1 mm 8 Ω

Achieve rich, full-range sound in a compact installation with this 6.5" coaxial subwoofer, designed to deliver both bass and midrange from a single driver. The paper cone and integrated tweeter provide clear, natural audio reproduction. With a total Q factor of 0.35, it is well-suited for sealed enclosure designs.

129 990 Ft

(102 354 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. 2 pcs júl. 9.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	165.1 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	89 dB
Total Q (Qts)	0.35
Electromagnetic Q (Qes)	0.36

Mechanical Q (Qms)	9.53
DC resistance (Re)	5.6 Ω
Voice coil inductance (L_e)	0.67 mH
BL product (BL)	9.5 T·m
The surface area of the cone (Sd)	154 cm²
Equivalent volume (Iron)	22.6 l
Mechanical compliance of the suspension (Cms)	0.67 mm/N
Drive mechanical losses (RMS)	0.61 kg/s
Volume of displacement (Vd)	0.7 dm³ cm³
Woofer type	DL300 Audio DAC
Membrane material	Paper
Voice coil diameter	38 mm
Basket / frame material	Aluminum
Dimensions (mm)	189 x 171 mm
Diameter of the baffle cutout	178.5 mm
# Mounting holes	4
Diameter of the access opening	5 mm
Depth	125 mm

The Volt Loudspeakers CX1601 6.5" Coaxial Subwoofer represents a sophisticated solution for those seeking to combine deep bass response with clear midrange and treble from a single driver. This 8-ohm unit is engineered to deliver rich, full-range sound in installations where space is at a premium, making it an ideal choice for custom car audio builds, compact home theatre systems, or any application requiring a versatile, space-saving driver.

With a total Q factor of 0.35 and a sensitivity of 89 dB SPL at 1 metre with 2.83V, this subwoofer is well-suited for both sealed and ported enclosures, offering tight, controlled low-frequency extension. The paper cone provides a natural, warm tonal character, while the integrated coaxial tweeter ensures seamless high-frequency reproduction without the need for a separate driver. The 5.6-ohm DC resistance and 0.67 mH voice coil inductance contribute to efficient power handling and stable amplifier loading.

Technical highlights include a mechanical Q of 9.53 and an electromagnetic Q of 0.36, ensuring precise damping and transient response. The 178.5 mm cut-out diameter and 125 mm mounting depth facilitate straightforward installation, while the four mounting holes provide secure fitting. With a displacement volume of 7 litres, this coaxial subwoofer delivers impressive output from a compact footprint, making it a superb choice for discerning audiophiles.
