BEYMA | Coaxial driver

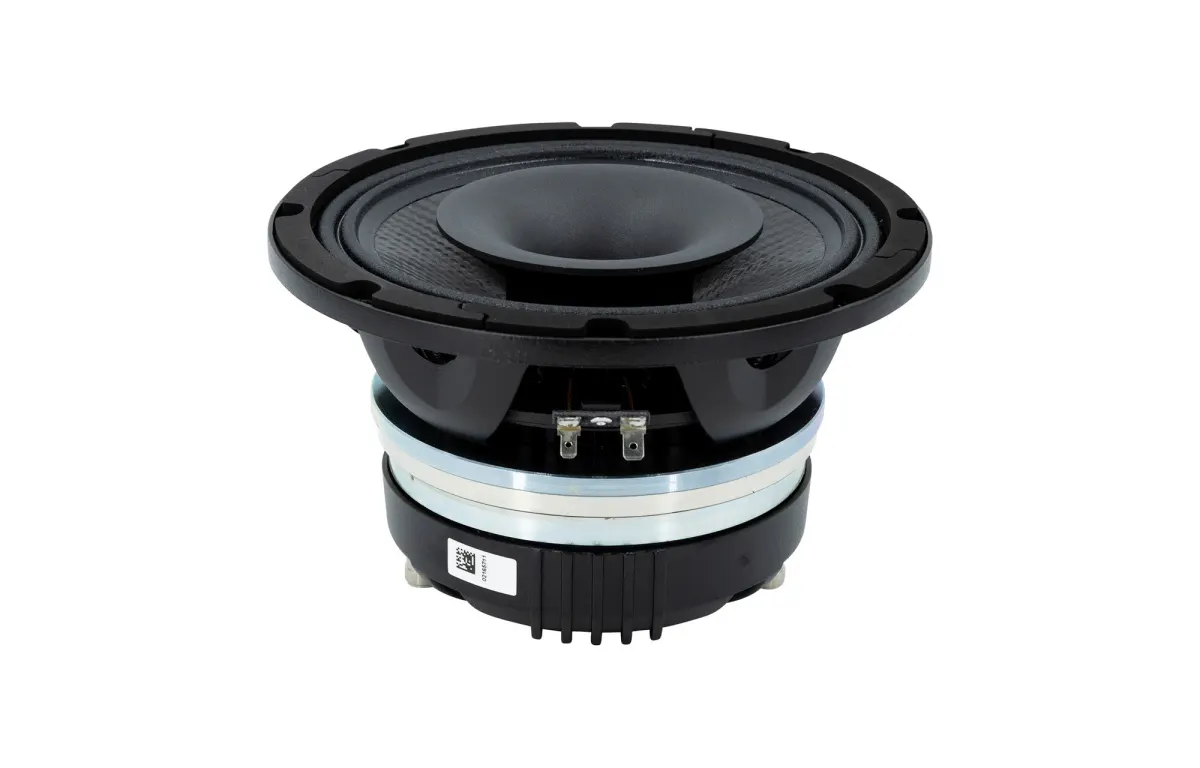

Beyma 8CFX260Nd Coaxial Woofer

Name: Beyma 8CFX260Nd mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 8CFX260Nd
Price: 222890.00 HUF
Availability: LimitedAvailability

SKU: 8CFX260Nd

254 mm subwoofer, 44.5 mm compression driver mm Woofer 8 Ω, Tweeter 16 Ω

Achieve powerful, clear sound in a compact installation with this coaxial woofer, which integrates a 254 mm bass driver and compression driver in a single chassis. The design simplifies mounting while delivering a sensitivity of 97 dB SPL at 1 metre with 2.83 V input. Total Q factor is 0.35.

222 890 Ft

(175 504 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 2 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	254 mm subwoofer, 44.5 mm compression driver mm
Impedance	Woofer 8 Ω, Tweeter 16 Ω
Sensitivity (SPL at 1 m / 2.83 V)	97 dB
Continuous program performance	Subwoofer 500 W, Tweeter 120 W
Resonance frequency (Fs)	1000 Hz

Maximum linear deflection (Xmax)	6 mm
Total Q (Qts)	0.35
Electromagnetic Q (Qes)	0.37
Mechanical Q (Qms)	4.8
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	0.23 mH
BL product (BL)	13.5 T·m
The surface area of the cone (Sd)	22 cm²
Equivalent volume (Iron)	8 l
Moving mass with air load (Mms)	21 g
Mechanical compliance of the suspension (Cms)	0.119 mm/N
Drive mechanical losses (RMS)	2.7 kg/s
Volume of displacement (Vd)	132 cm³
Woofer type	DL300 Audio DAC
Membrane material	Carbon fiber
Voice coil diameter	63.5 mm woofer, 44.5 mm compression driver mm
Magnetic material	Neodymium
Dimensions (mm)	212 mm
Screw head diameter	195 mm
Diameter of the baffle cutout	181 mm
# Mounting holes	8
Diameter of the access opening	5.5 mm
Depth	134 mm

The Beyma 8CFX260Nd Coaxial Woofer represents a sophisticated solution for those seeking high-fidelity audio reproduction without compromising on installation simplicity. This expertly engineered driver combines a 254 mm bass woofer with a compression driver in a single, unified chassis, delivering exceptional sound quality in a compact footprint. Ideal for professional sound reinforcement, high-end home theatre systems, and custom car audio installations, it excels in applications where space is at a premium but performance cannot be sacrificed. The coaxial design ensures coherent sound dispersion and a point-source listening experience, making it particularly suited for near-field monitoring and multi-channel setups where precise imaging is critical.

From a technical standpoint, this woofer boasts impressive specifications that underline its capability. With a sensitivity of 97 dB SPL at 1 metre with 2.83V input, it offers remarkable efficiency, while a total Q factor (Qts) of 0.35 and a maximum linear excursion (Xmax) of 6 mm ensure controlled, accurate bass response. The low voice coil inductance (Le) of 0.23 mH and DC resistance (Re) of 5.2 ohms contribute to clean transient behaviour and stable impedance. The mounting cut-out diameter of 181 mm and eight fixing holes simplify integration, while the robust construction guarantees long-term reliability. This coaxial woofer is a superb choice for audiophiles and professionals who demand both performance and practicality in equal measure.
