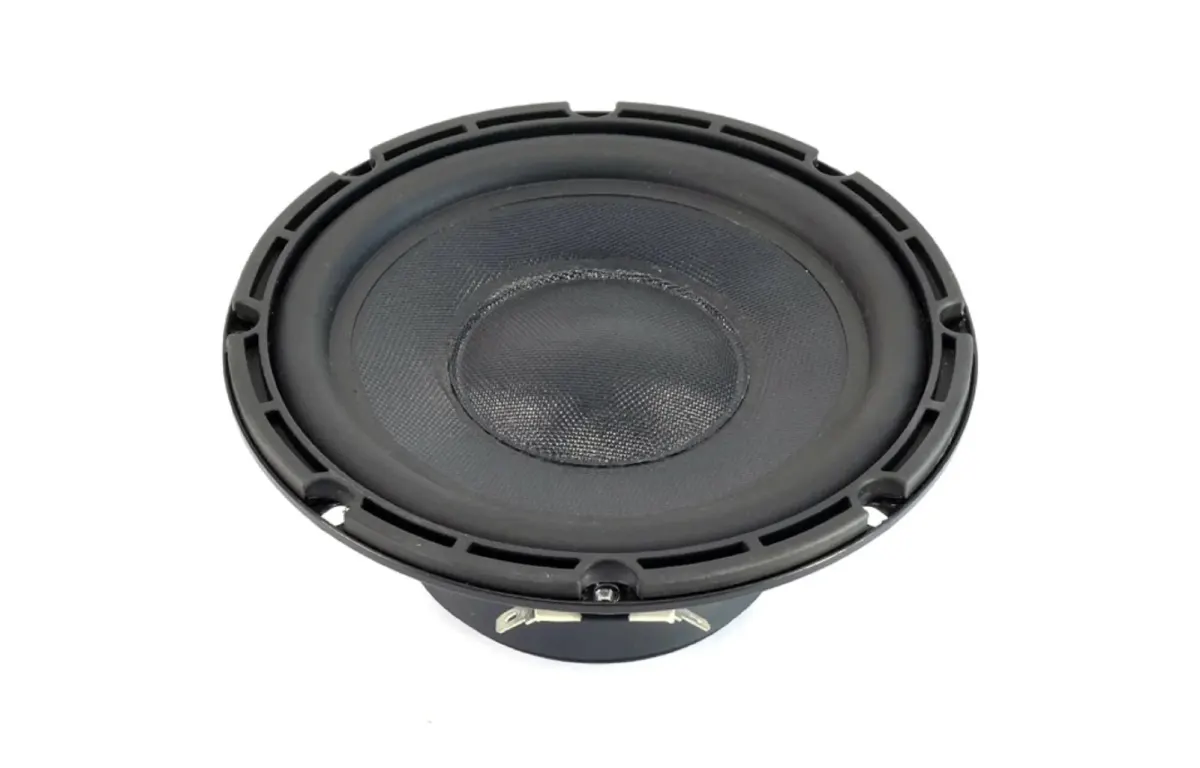

Visaton W 165 A Bass-midwoofer

Name: Visaton W mélysugárzó | HQ AudioParts
Brand: Visaton
SKU: W 165 A
Price: 34490.00 HUF
Availability: LimitedAvailability

SKU: W 165 A

165.1 mm 2 Ω

Achieve clear, detailed bass and midrange reproduction in your speaker build with this 165mm driver. Its glass fibre membrane and rubber surround ensure controlled, low-distortion performance. The driver offers a maximum linear excursion (Xmax) of 10.3mm.

34 490 Ft

(27 157 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	165.1 mm
Impedance	2 Ω
Resonance frequency (Fs)	60 Hz
Sensitivity (SPL at 1 m / 2.83 V)	84 dB
Maximum linear deflection (Xmax)	10.3 mm

Woofer type	VMV D1se MQA Hi-End Audio DAC with Bluetooth 5.0 AptX
Membrane material	Fiberglass
Surround material	Rubber
Voice coil diameter	31 mm
Basket / frame material	Steel
Dimensions (mm)	165 mm
Diameter of the baffle cutout	144 mm
# Mounting holes	8
Diameter of the access opening	5 mm
Depth	67.3 mm

The Visaton W 165 A Bass-midwoofer is a high-quality 165mm driver engineered to deliver exceptional clarity and detail across both bass and midrange frequencies. Designed for discerning audio enthusiasts, this speaker component excels in a variety of applications, from compact two-way bookshelf speakers to more complex multi-way systems where precise mid-bass reproduction is essential. Its robust construction makes it equally suitable for upgrading existing designs or for new, custom loudspeaker projects where controlled, low-distortion performance is paramount.

At the heart of this driver lies a rigid glass fibre membrane, chosen for its excellent stiffness-to-weight ratio, which ensures clean, articulate sound with minimal breakup. The rubber surround provides long-lasting durability and contributes to the driver's controlled excursion, while the steel basket offers a stable foundation, reducing unwanted resonances. With a nominal impedance of 2 ohms, a sensitivity of 84 dB SPL (1m/2.83V), and a maximum linear excursion (Xmax) of 10.3 mm, the W 165 A is capable of producing impressive output levels with low distortion. The 31 mm voice coil and a resonance frequency (Fs) of 60 Hz further enhance its ability to deliver tight, punchy bass and a smooth midrange.

This driver represents a superb choice for those seeking a reliable, high-performance bass-midwoofer that combines technical precision with versatile application, ensuring a rewarding listening experience in any well-designed enclosure.
