SICA | Mid-bass driver

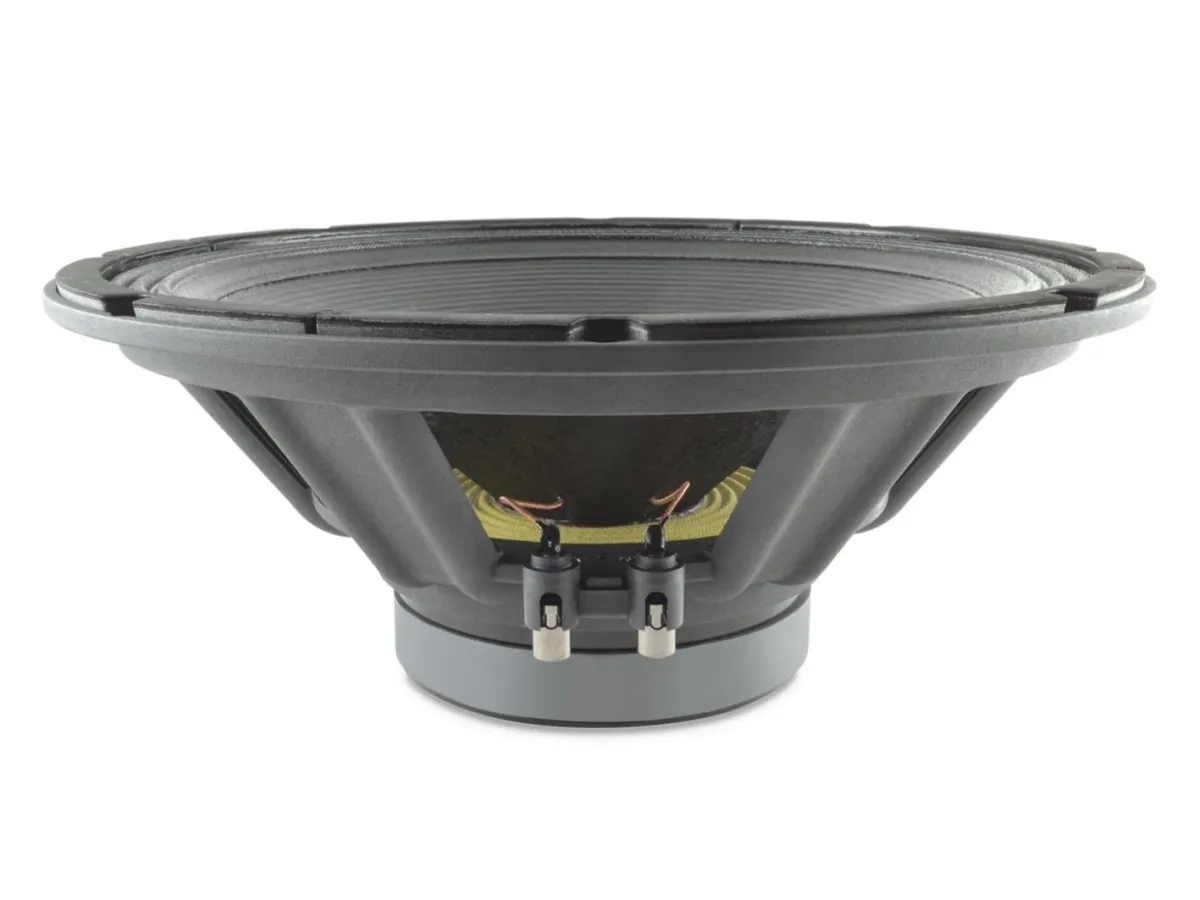

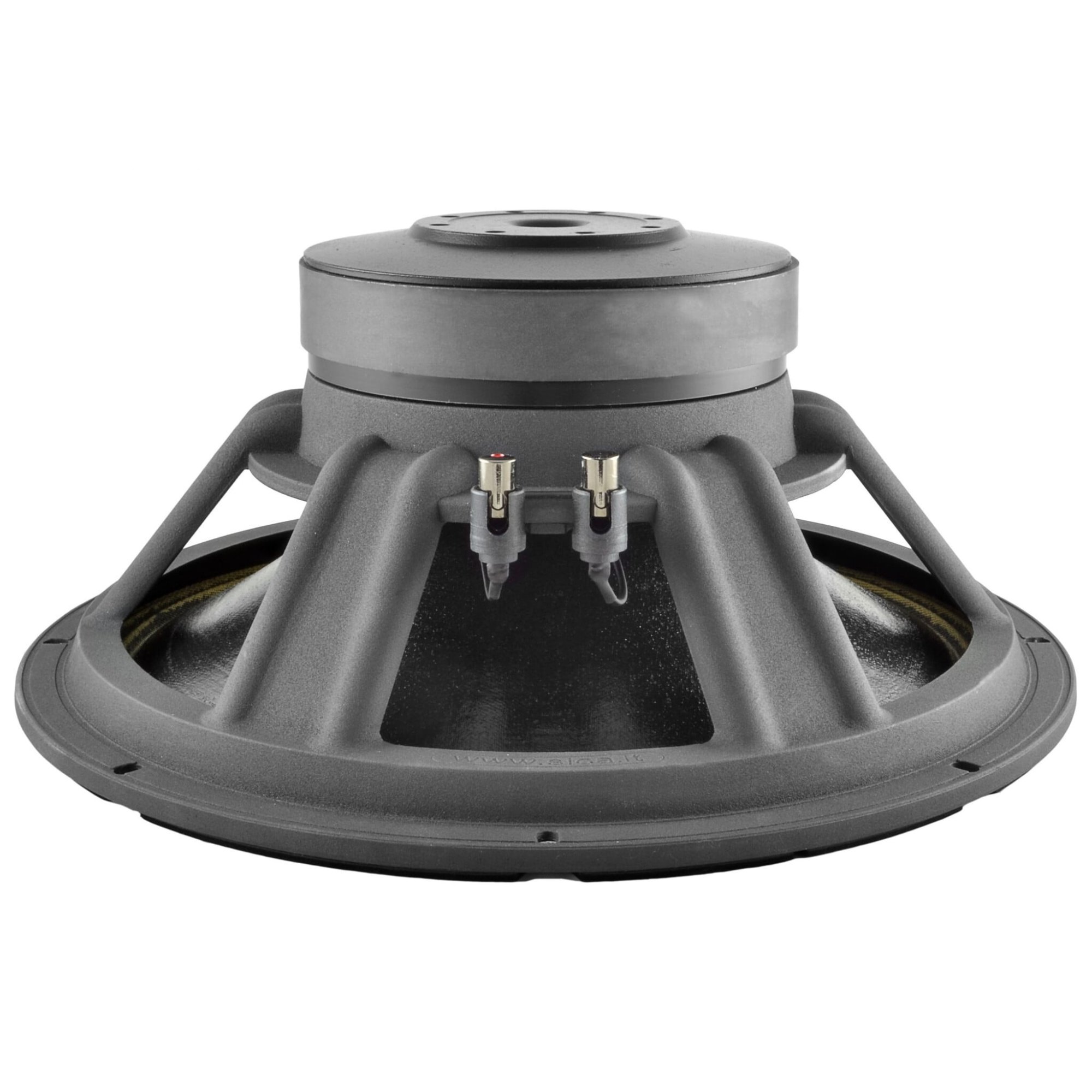

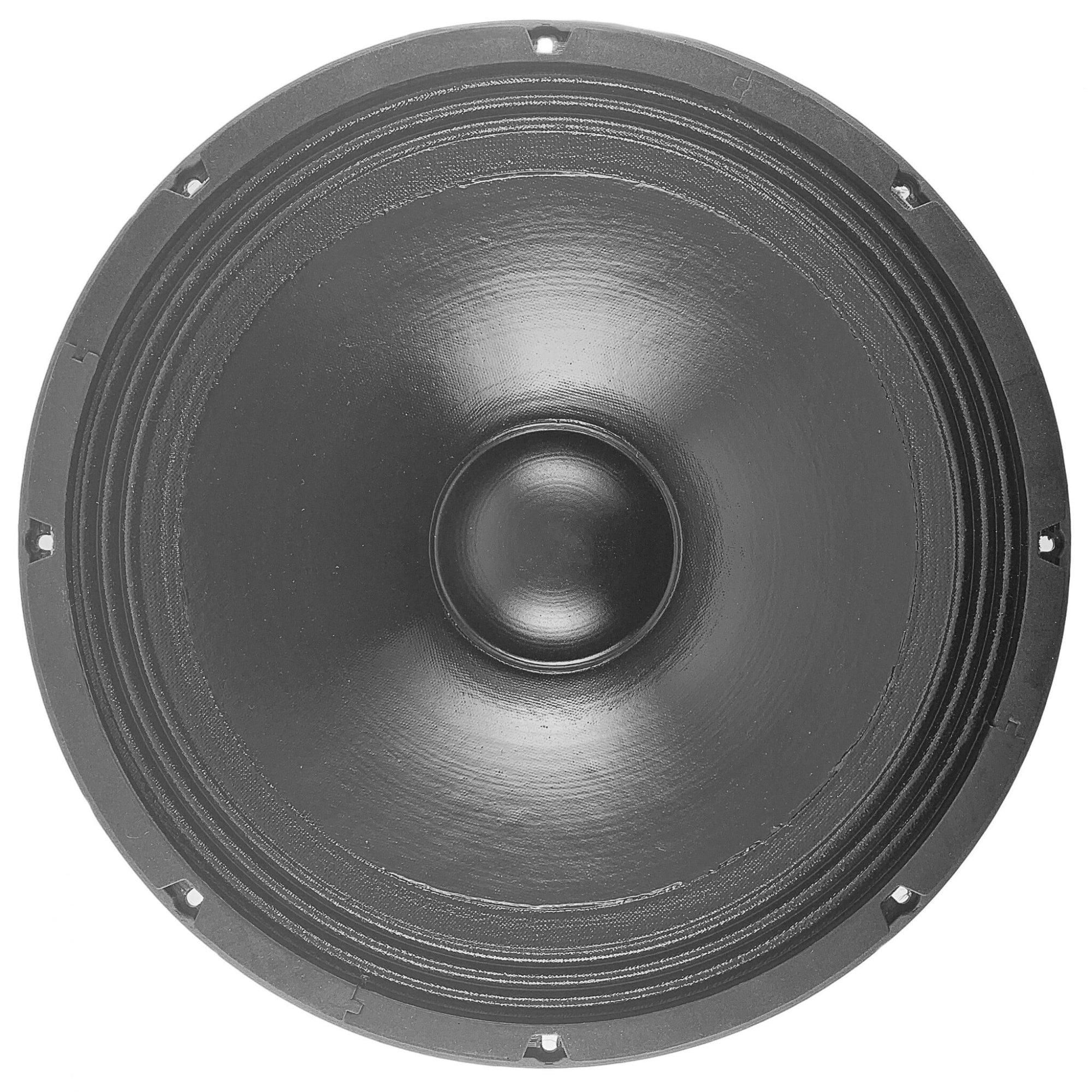

SICA 15 PF 3 - 8 Bass-mid woofer

Name: SICA 15 PF 3 - 8 Bass-mid woofer | HQ Audio Parts
Brand: SICA
SKU: 15 PF 3 - 8
Price: 103990.00 HUF
Availability: LimitedAvailability

SKU: 15 PF 3 - 8

389 mm 8 Ω

Professional audio component. SICA 15 PF 3 - 8 Bass-mid woofer provides superior sound quality. Ideal for audio systems.

103 990 Ft

(81 882 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 4 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	389 mm
Impedance	8 Ω
Resonance frequency (Fs)	45 Hz
Sensitivity (SPL at 1 m / 2.83 V)	99.1 dB
Maximum linear deflection (Xmax)	8 mm

Total Q (Qts)	0.31
Electromagnetic Q (Qes)	0.33
Mechanical Q (Qms)	5.56
DC resistance (Re)	5.1 Ω
Voice coil inductance (L_e)	1.02 mH
Equivalent volume (Iron)	117.6 l
Voice coil diameter	75 mm
Diameter of the baffle cutout	355 mm
Diameter of the access opening	6 mm
Depth	169 mm
Load capacity	600 W

Tags

Új termékek

The SICA 15 PF 3 - 8 Bass-mid woofer is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
