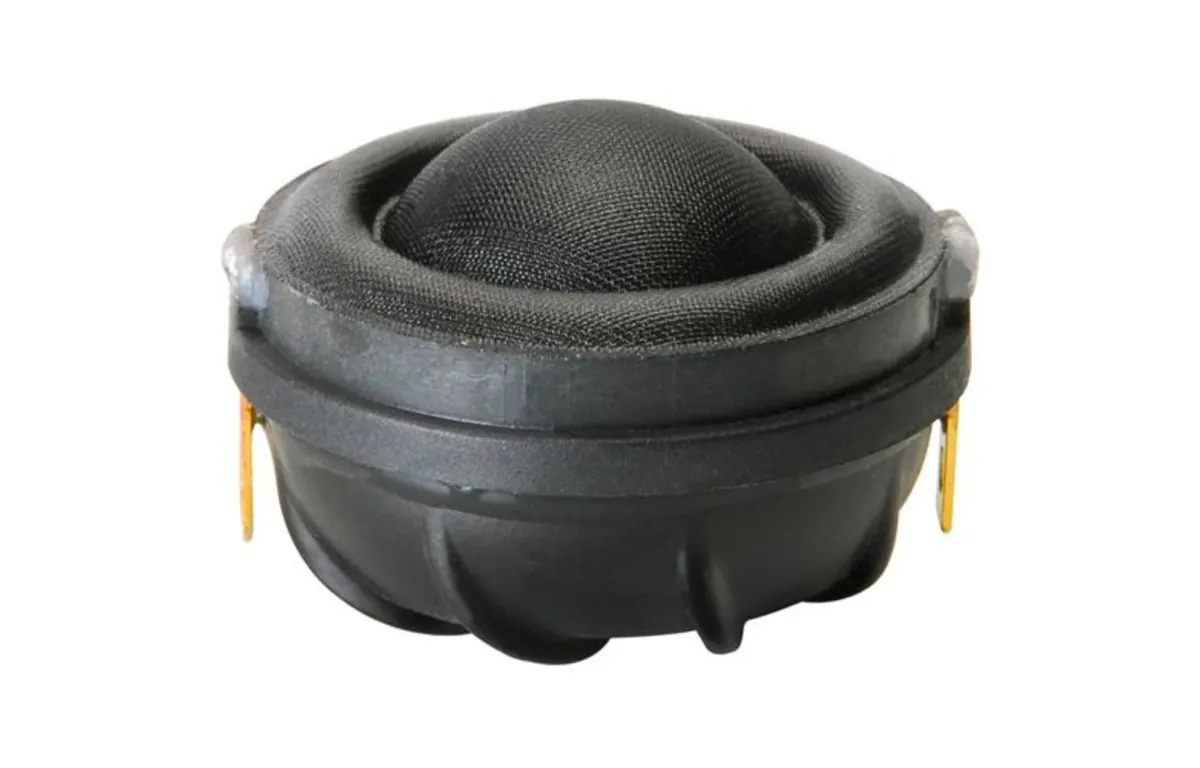

OX20SC00-04 Dome Tweeter

The Peerless by Tymphany OX20SC00-04 Dome Tweeter delivers exceptionally clear and detailed high-frequency reproduction, making it an ideal choice for discerning audio enthusiasts and professional designers alike. Engineered for precision, this soft dome tweeter excels in a variety of applications, from high-fidelity home audio systems and studio monitors to custom loudspeaker projects where accurate treble response is paramount. Its controlled performance ensures seamless integration into both two-way and multi-way designs, providing a refined listening experience across diverse musical genres.

Technically, the OX20SC00-04 features a 19mm soft dome diaphragm, renowned for its smooth and natural sound character. With a sensitivity of 93dB (SPL 1m/2.83V) and a 4-ohm impedance, it offers efficient power handling and easy system matching. The total Q factor (Qts) of 1.39, combined with a resonance frequency (Fs) of 106Hz, contributes to well-damped, controlled behaviour. Additional specifications include a DC resistance (Re) of 3.2 ohms, a voice coil inductance (Le) of just 0.01mH, and mechanical (Qms) and electrical (Qes) Q factors of 7.72 and 1.7 respectively. The tweeter’s compact dimensions—33.3mm overall diameter with a 28.7mm cut-out and 23.4mm depth—facilitate straightforward installation. Part of the esteemed OX Series, this tweeter represents a reliable choice for achieving articulate, detailed high frequencies in any quality audio project.
