Scan-Speak Illuminator D2004/602200 Dome Tweeter

SCAN-SPEAK | Dome tweeter

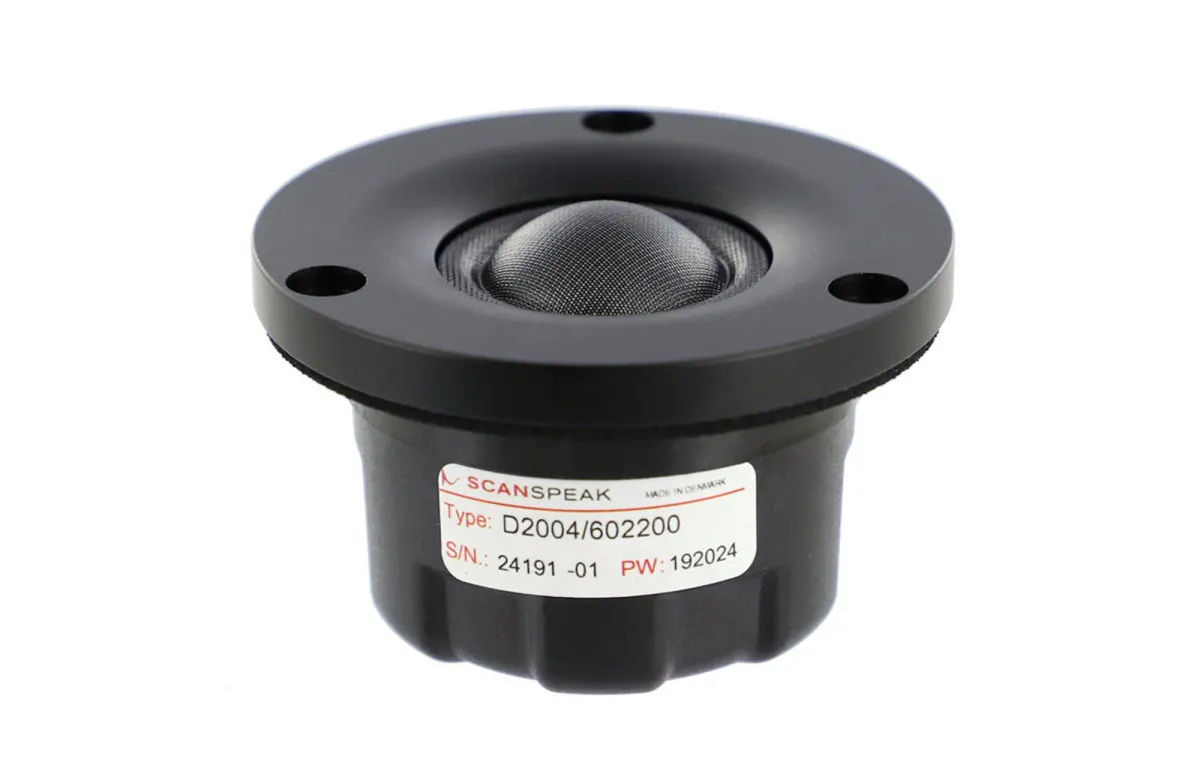

Scan-Speak Illuminator D2004/602200 Dome Tweeter

Name: Scan-Speak Illuminator magassugárzó | HQ AudioParts
Brand: Scan-Speak
SKU: D2004/602200
Price: 51990.00 HUF
Availability: LimitedAvailability

SKU: D2004/602200

19 mm 89 dB

Achieve precise high-frequency reproduction with a 19mm coated fabric dome that delivers natural, uncoloured sound. This tweeter integrates seamlessly into high-end two-way or multi-way speaker designs. Key specifications include a sensitivity of 89 dB SPL at 1m/2.83V and a total Q factor (Qts) of 0.95.

51 990 Ft

(40 937 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 5 pcs Aug 6.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Diameter of the cone / dome	19 mm
Sensitivity (SPL at 1 m / 2.83 V)	89 dB
Resonance frequency (Fs)	55 Hz
Total Q (Qts)	0.95
Electromagnetic Q (Qes)	1.26

Mechanical Q (Qms)	3.8
DC resistance (Re)	2.8 Ω
Voice coil inductance (L_e)	0.02 mH
Tweeter type	Dome speaker
Tweeter Series	Illuminator

The Scan-Speak Illuminator D2004/602200 Dome Tweeter represents a pinnacle of high-frequency driver engineering, designed to deliver an exceptionally natural and uncoloured sound reproduction. This 19mm coated fabric dome tweeter is the ideal choice for discerning audiophiles and speaker builders seeking to achieve precise, airy highs in their projects. Whether employed in a refined two-way bookshelf speaker or as part of a sophisticated multi-way floorstanding design, this driver integrates seamlessly, bringing clarity and detail to any high-end audio system.

At the heart of the Illuminator series, this tweeter boasts a remarkably low resonance frequency of just 55 Hz, allowing for a smooth crossover integration. The total Q factor of 0.95, combined with a mechanical Q of 3.8 and an electromagnetic Q of 1.26, ensures controlled, well-damped behaviour. With a sensitivity of 89 dB (SPL 1m/2.83V) and a minimal voice coil inductance of only 0.02 mH, it offers outstanding transient response and low distortion. The 2.8-ohm DC resistance further complements its efficient design, making the D2004/602200 a superb choice for those who demand the highest fidelity from their loudspeaker creations.
