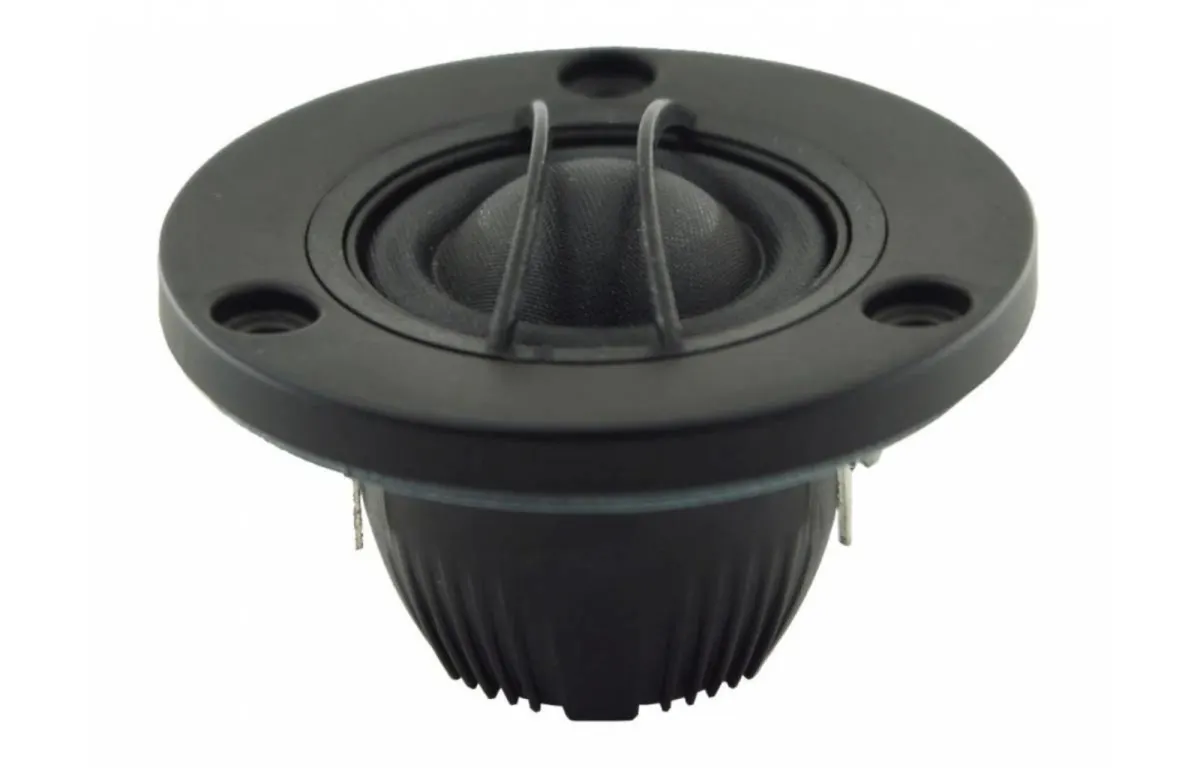

NE19VTS-04 3/4" Silk Dome Tweeter

The Peerless by Tymphany NE19VTS-04 is a meticulously engineered 3/4" silk dome tweeter that brings refined high-frequency performance to a wide range of loudspeaker projects. Its soft fabric diaphragm delivers a smooth, natural treble response that avoids the harshness often associated with metal domes, making it an excellent choice for hi-fi systems, studio monitors, and custom speaker builds where clarity and musicality are paramount.

With a sensitivity of 90.4 dB and a 4-ohm impedance, this tweeter integrates easily into both two-way and multi-way designs. The low DC resistance of 2.8 ohms and a total Q factor of 1.1 ensure controlled damping and seamless crossover integration. Its 19 mm silk dome is driven by a voice coil with minimal inductance (0.014 mH), contributing to extended high-frequency extension and low distortion. The resonance frequency of 77 Hz allows for flexible crossover points, while the compact 52 mm frame and 38 mm cut-out simplify mounting in tight enclosures.

Built as part of the NE Series, this tweeter combines precision engineering with high-quality materials. The fabric diaphragm is treated for consistent performance, and the robust construction ensures long-term reliability. Whether upgrading existing speakers or designing new ones, the NE19VTS-04 delivers articulate, airy highs that enhance any listening experience.
