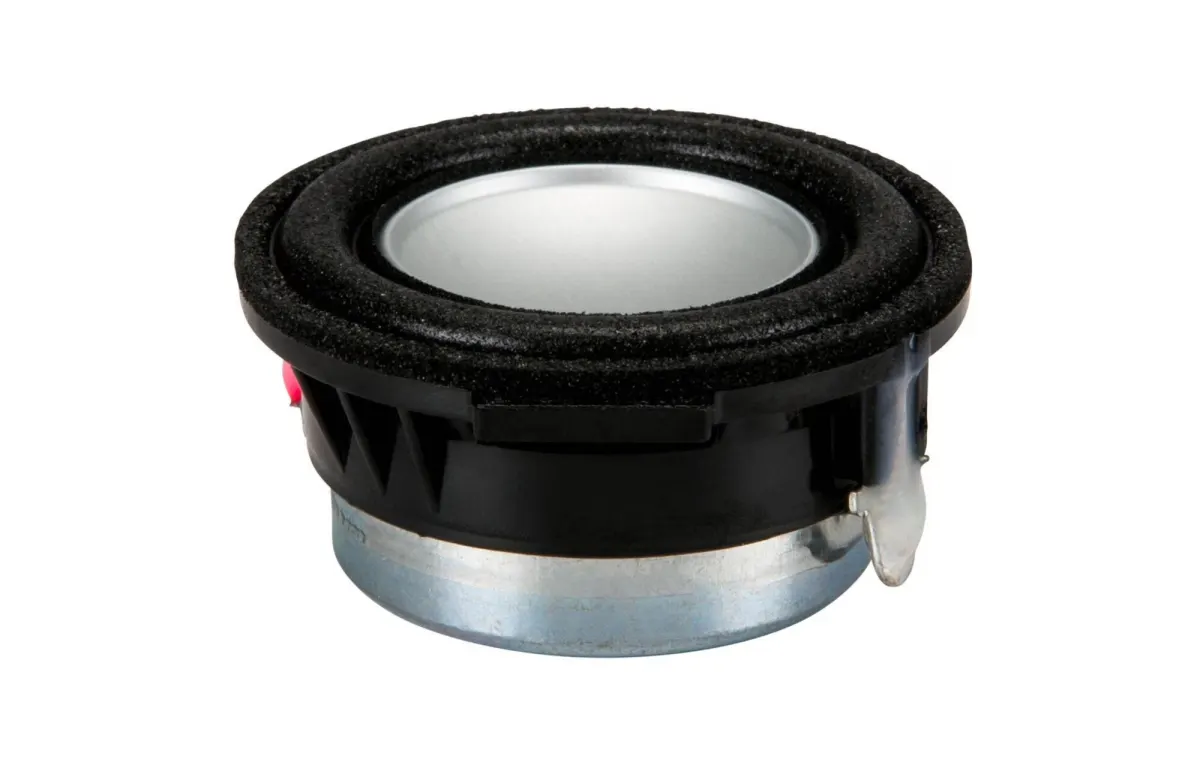

Peerless by Tymphany PMT-30N18AL04-04 Micro Dome Speaker
SKU:
PMT-30N18AL04-04
4 Ω
30 mm
Achieve clear, detailed high-frequency reproduction in compact designs with this 30mm aluminium dome tweeter. Its neodymium magnet motor ensures precise transient response, while the total Q factor of 0.65 allows flexible crossover integration.
4 090 Ft
(3 220 Ft + VAT)
Own warehouse
Out of stock
Külső raktár 2.
10+ pcs
Aug 5.
Fast Delivery
2-5 working days
Secure Payment
Barion & SSL protection
14 Days Exchange
We take it back without question
Technical data
| Impedance | |
| Nominal diameter | |
| Sensitivity (SPL at 1 m / 2.83 V) | |
| Resonance frequency (Fs) | |
| Maximum linear deflection (Xmax) |
| Total Q (Qts) | |
| Electromagnetic Q (Qes) | |
| Mechanical Q (Qms) | |
| DC resistance (Re) | |
| Voice coil inductance (L_e) | |
| The surface area of the cone (Sd) | |
| Equivalent volume (Iron) | |
| Moving mass with air load (Mms) | |
| Mechanical compliance of the suspension (Cms) | |
| Woofer type | |
| Membrane material | |
| Voice coil diameter | |
| Magnetic material | |
| Subwoofer Series | |
| Dimensions (mm) | |
| Depth |
The Peerless by Tymphany PMT-30N18AL04-04 Micro Dome Speaker is a precision-engineered dome tweeter designed to deliver exceptional high-frequency clarity in a remarkably compact form. This 30mm aluminium dome driver is ideal for upgrading bookshelf speakers, creating custom multi-channel systems, or integrating into portable audio projects where space is at a premium but sound quality cannot be compromised. Its lightweight yet rigid aluminium diaphragm ensures detailed, airy treble that brings recordings to life.
Technically, this tweeter features a neodymium magnet motor assembly, which provides a powerful magnetic field for rapid transient response and low distortion. With a sensitivity of 80.1 dB SPL at 1m/2.83V and a nominal impedance of 4 ohms, it pairs well with a wide range of amplifiers. The total Q factor (Qts) of 0.65, combined with a mechanical Q (Qms) of 2.13 and electrical Q (Qes) of 0.94, indicates controlled damping suitable for sealed or small vented enclosures. The voice coil inductance is a mere 0.067 mH, contributing to extended high-frequency extension, while the maximum linear excursion (Xmax) of 3.14 mm allows for surprising dynamic range from such a small driver. Measuring just 31.5 mm in diameter with a depth of 16 mm, this tweeter is an excellent choice for designers seeking high-performance audio in miniature applications.
Technically, this tweeter features a neodymium magnet motor assembly, which provides a powerful magnetic field for rapid transient response and low distortion. With a sensitivity of 80.1 dB SPL at 1m/2.83V and a nominal impedance of 4 ohms, it pairs well with a wide range of amplifiers. The total Q factor (Qts) of 0.65, combined with a mechanical Q (Qms) of 2.13 and electrical Q (Qes) of 0.94, indicates controlled damping suitable for sealed or small vented enclosures. The voice coil inductance is a mere 0.067 mH, contributing to extended high-frequency extension, while the maximum linear excursion (Xmax) of 3.14 mm allows for surprising dynamic range from such a small driver. Measuring just 31.5 mm in diameter with a depth of 16 mm, this tweeter is an excellent choice for designers seeking high-performance audio in miniature applications.
