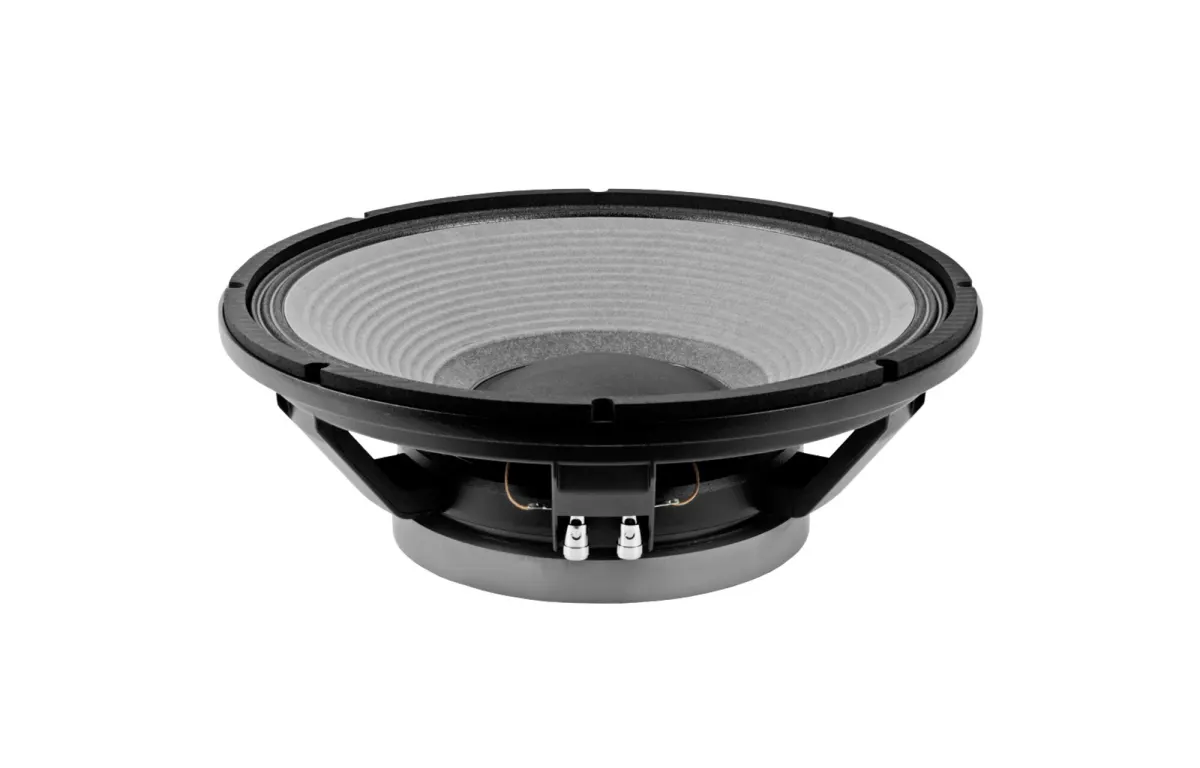

Beyma 15LX60V2 Subwoofer
SKU:
15LX60V2
381 mm
8 Ω
Deliver deep, authoritative low-end response in your sound system with this high-excursion subwoofer. It combines a 98 dB sensitivity rating with a total Q factor of 0.44 for controlled, accurate bass reproduction. The driver achieves a maximum linear excursion (Xmax) of 8 mm.
100 790 Ft
(79 362 Ft + VAT)
Own warehouse
Out of stock
Külső raktár 2.
6 pcs
Aug 6.
Fast Delivery
2-5 working days
Secure Payment
Barion & SSL protection
14 Days Exchange
We take it back without question
Technical data
| Nominal diameter | |
| Impedance | |
| Resonance frequency (Fs) | |
| Sensitivity (SPL at 1 m / 2.83 V) | |
| Maximum linear deflection (Xmax) |
| Total Q (Qts) | |
| Electromagnetic Q (Qes) | |
| Mechanical Q (Qms) | |
| DC resistance (Re) | |
| Voice coil inductance (L_e) | |
| BL product (BL) | |
| The surface area of the cone (Sd) | |
| Equivalent volume (Iron) | |
| Moving mass with air load (Mms) | |
| Mechanical compliance of the suspension (Cms) | |
| Drive mechanical losses (RMS) | |
| Volume of displacement (Vd) | |
| Woofer type | |
| Voice coil diameter | |
| Dual voice coil | |
| Magnetic material | |
| Subwoofer Series | |
| Dimensions (mm) | |
| Screw head diameter | |
| Diameter of the baffle cutout | |
| # Mounting holes | |
| Diameter of the access opening | |
| Depth |
The Beyma 15LX60V2 Subwoofer delivers deep, authoritative low-end response for any serious sound system, combining high-excursion capability with exceptional efficiency. This 15-inch driver is engineered to produce controlled, accurate bass that brings music and film soundtracks to life with remarkable clarity and impact.
Ideal for both professional audio installations and high-fidelity home theatre systems, this subwoofer excels in sealed and ported enclosures where precise, punchy low frequencies are required. Its robust construction makes it suitable for live sound reinforcement, car audio competitions, and custom studio monitor builds where reliable, high-output performance is essential.
Technically, the 15LX60V2 features a 98 dB sensitivity rating (1m/2.83V) for impressive output from modest amplifier power. The total Q factor of 0.44, derived from a mechanical Q of 21.2 and an electromagnetic Q of 0.45, ensures tight, well-damped bass response. With a maximum linear excursion of 8 mm and a displacement volume of 728 cm³, it moves substantial air while maintaining low distortion. The 5.1 ohm DC resistance and 2.1 mH voice coil inductance contribute to stable electrical performance, while the 349.5 mm cutout diameter and eight mounting holes facilitate straightforward installation.
This subwoofer represents a superb choice for those seeking deep, accurate bass with high efficiency and robust build quality.
Ideal for both professional audio installations and high-fidelity home theatre systems, this subwoofer excels in sealed and ported enclosures where precise, punchy low frequencies are required. Its robust construction makes it suitable for live sound reinforcement, car audio competitions, and custom studio monitor builds where reliable, high-output performance is essential.
Technically, the 15LX60V2 features a 98 dB sensitivity rating (1m/2.83V) for impressive output from modest amplifier power. The total Q factor of 0.44, derived from a mechanical Q of 21.2 and an electromagnetic Q of 0.45, ensures tight, well-damped bass response. With a maximum linear excursion of 8 mm and a displacement volume of 728 cm³, it moves substantial air while maintaining low distortion. The 5.1 ohm DC resistance and 2.1 mH voice coil inductance contribute to stable electrical performance, while the 349.5 mm cutout diameter and eight mounting holes facilitate straightforward installation.
This subwoofer represents a superb choice for those seeking deep, accurate bass with high efficiency and robust build quality.
