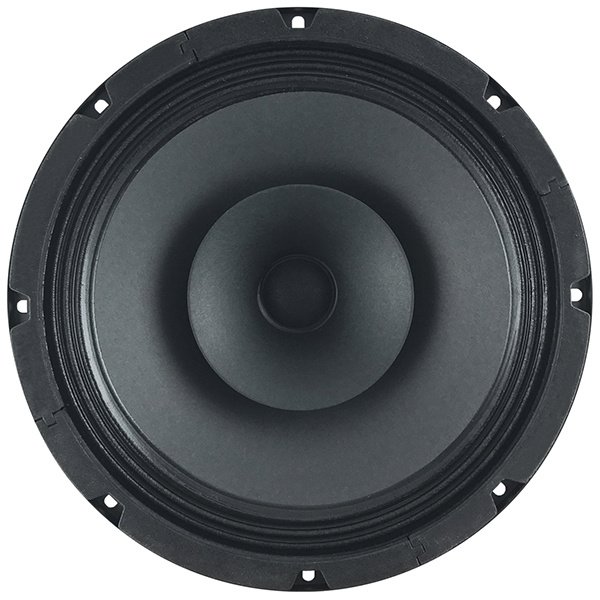

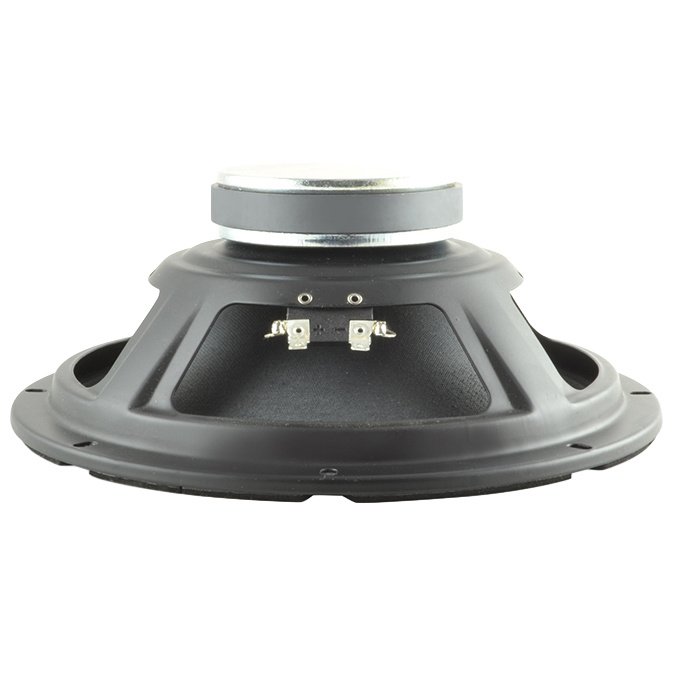

SICA 10 D 1,5 CS - 8 Full-range driver

Name: SICA 10 D 1,5 CS - 8 Full-range driver | HQ Audio Parts
Brand: SICA
SKU: 10 D 1,5 CS - 8
Price: 29790.00 HUF
Availability: LimitedAvailability

SKU: 10 D 1,5 CS - 8

266 mm 8 Ω

Professional audio component. SICA 10 D 1,5 CS - 8 Full-range driver provides superior sound quality. Ideal for audio systems.

29 790 Ft

(23 457 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 4 pcs Aug 6.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	266 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	93.9 dB
Resonance frequency (Fs)	68 Hz
Maximum linear deflection (Xmax)	2.5 mm

Total Q (Qts)	1.12
Electromagnetic Q (Qes)	1.23
Mechanical Q (Qms)	12.27
DC resistance (Re)	5 Ω
Voice coil inductance (L_e)	0.26 mH
Equivalent volume (Iron)	37.5 l
Voice coil diameter	38 mm
Diameter of the baffle cutout	237 mm
Diameter of the access opening	5 mm
Depth	97.4 mm
Load capacity	100 W

Tags

Új termékek

The SICA 10 D 1,5 CS - 8 Full-range driver is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
