SICA | Mid-bass driver

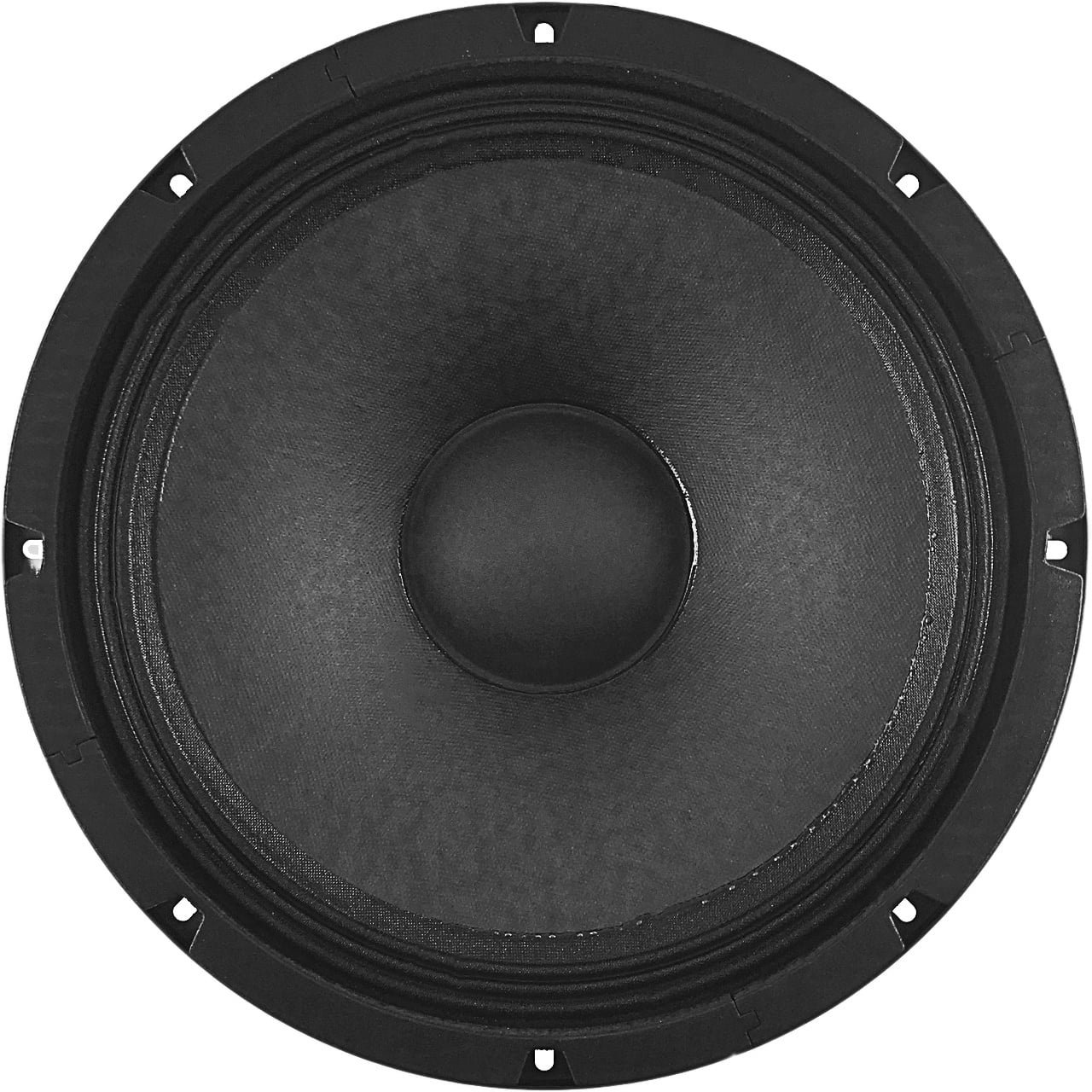

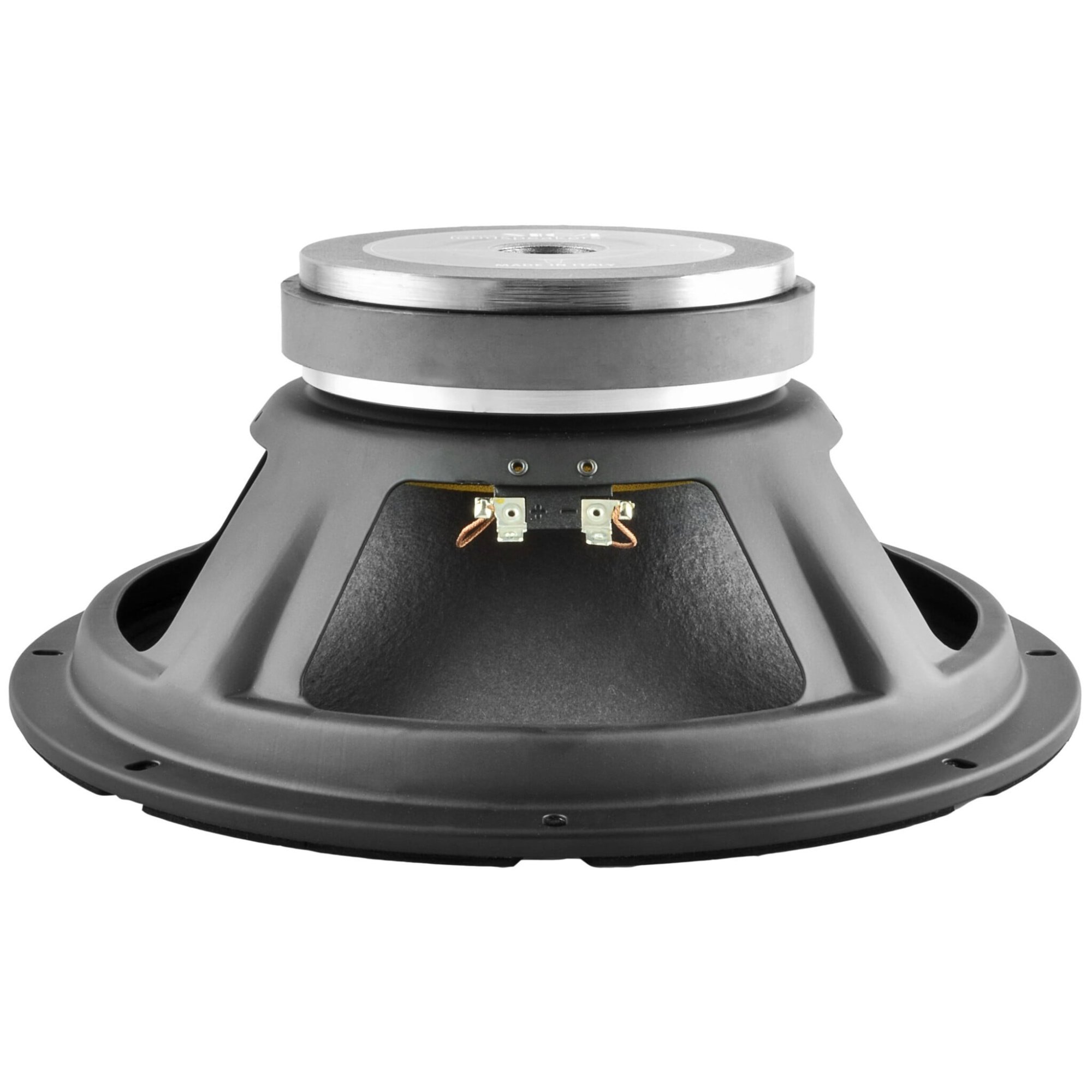

SICA 12 E 2,5 CS - 8 Bass-mid woofer

Name: SICA 12 E 2,5 CS - 8 Bass-mid woofer | HQ Audio Parts
Brand: SICA
SKU: 12 E 2,5 CS - 8
Price: 57590.00 HUF
Availability: LimitedAvailability

SKU: 12 E 2,5 CS - 8

318 mm 8 Ω

Professional audio component. SICA 12 E 2,5 CS - 8 Bass-mid woofer provides superior sound quality. Ideal for audio systems.

57 590 Ft

(45 346 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 4 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	318 mm
Impedance	8 Ω
Resonance frequency (Fs)	48 Hz
Sensitivity (SPL at 1 m / 2.83 V)	97.8 dB
Maximum linear deflection (Xmax)	4.5 mm

Total Q (Qts)	0.32
Electromagnetic Q (Qes)	0.33
Mechanical Q (Qms)	8.4
DC resistance (Re)	6.2 Ω
Voice coil inductance (L_e)	0.96 mH
Equivalent volume (Iron)	86.1 l
Voice coil diameter	65 mm
Diameter of the baffle cutout	287 mm
Diameter of the access opening	5 mm
Depth	132.2 mm
Load capacity	300 W

Tags

Új termékek

The SICA 12 E 2,5 CS - 8 Bass-mid woofer is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
