FAITALPRO | Mid-bass driver

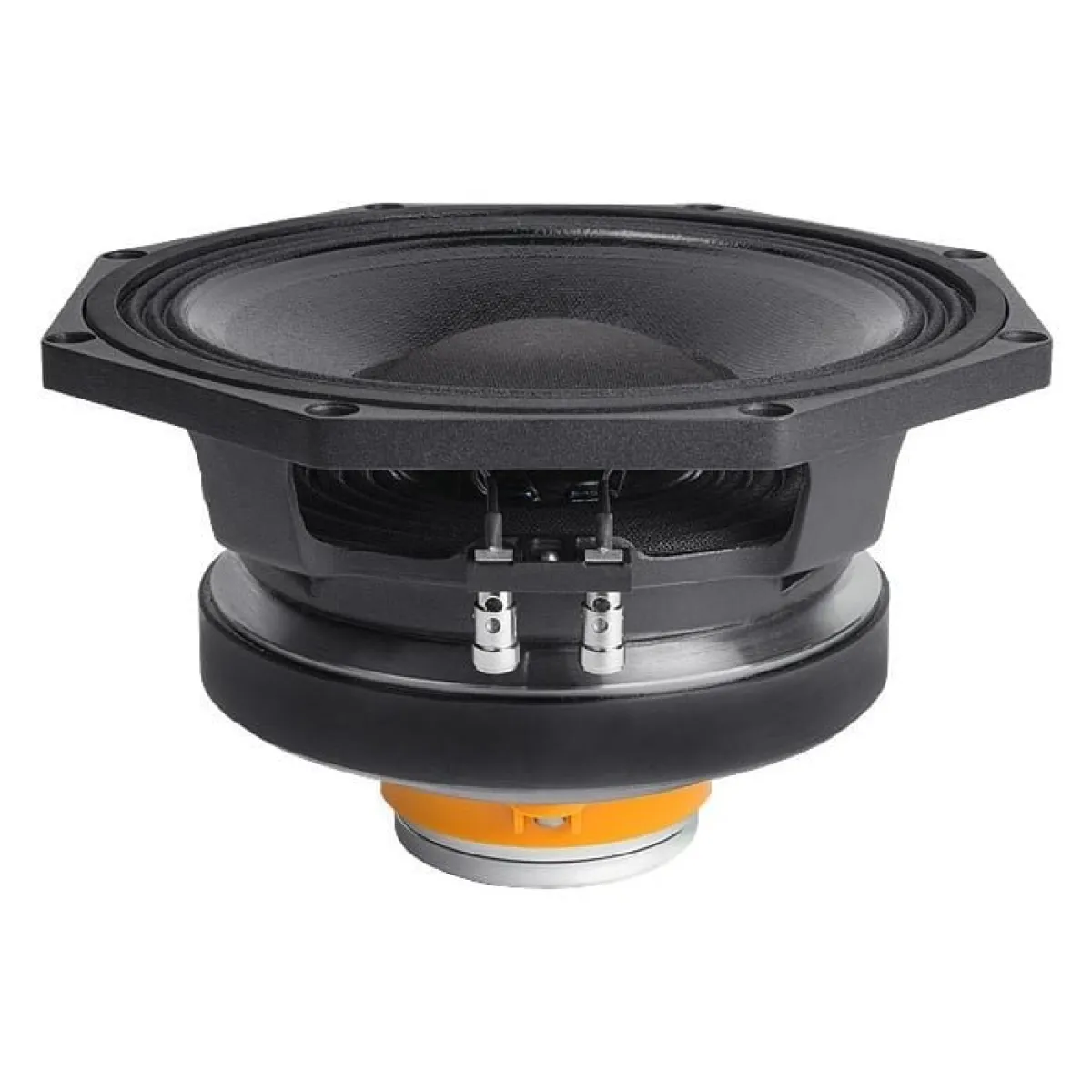

FaitalPRO 8HX230-8P Bass-midwoofer Coaxial

Name: FaitalPRO 8HX230-8P Bass-midwoofer Coaxial | HQ Audio Parts
Brand: FaitalPRO
SKU: 8HX230-8P
Price: 120690.00 HUF
Availability: LimitedAvailability

SKU: 8HX230-8P

200 mm 8 Ω

Professional audio component. FaitalPRO 8HX230-8P Bass-midwoofer Coaxial provides superior sound quality. Ideal for audio systems.

120 690 Ft

(95 031 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 2 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	200 mm
Impedance	8 Ω
Resonance frequency (Fs)	70 Hz
Sensitivity (SPL at 1 m / 2.83 V)	94 dB
Maximum linear deflection (Xmax)	6.17 mm

Total Q (Qts)	0.29
Electromagnetic Q (Qes)	0.31
Mechanical Q (Qms)	6
DC resistance (Re)	6.5 Ω
Voice coil inductance (L_e)	0.59 mH
Equivalent volume (Iron)	14.7 l
Voice coil diameter	65 mm
Diameter of the baffle cutout	183 mm
Diameter of the access opening	6.5 mm
Depth	93.7 mm
Load capacity	250 W

Tags

Új termékek

The FaitalPRO 8HX230-8P Bass-midwoofer Coaxial is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
