SICA | Mid-bass driver

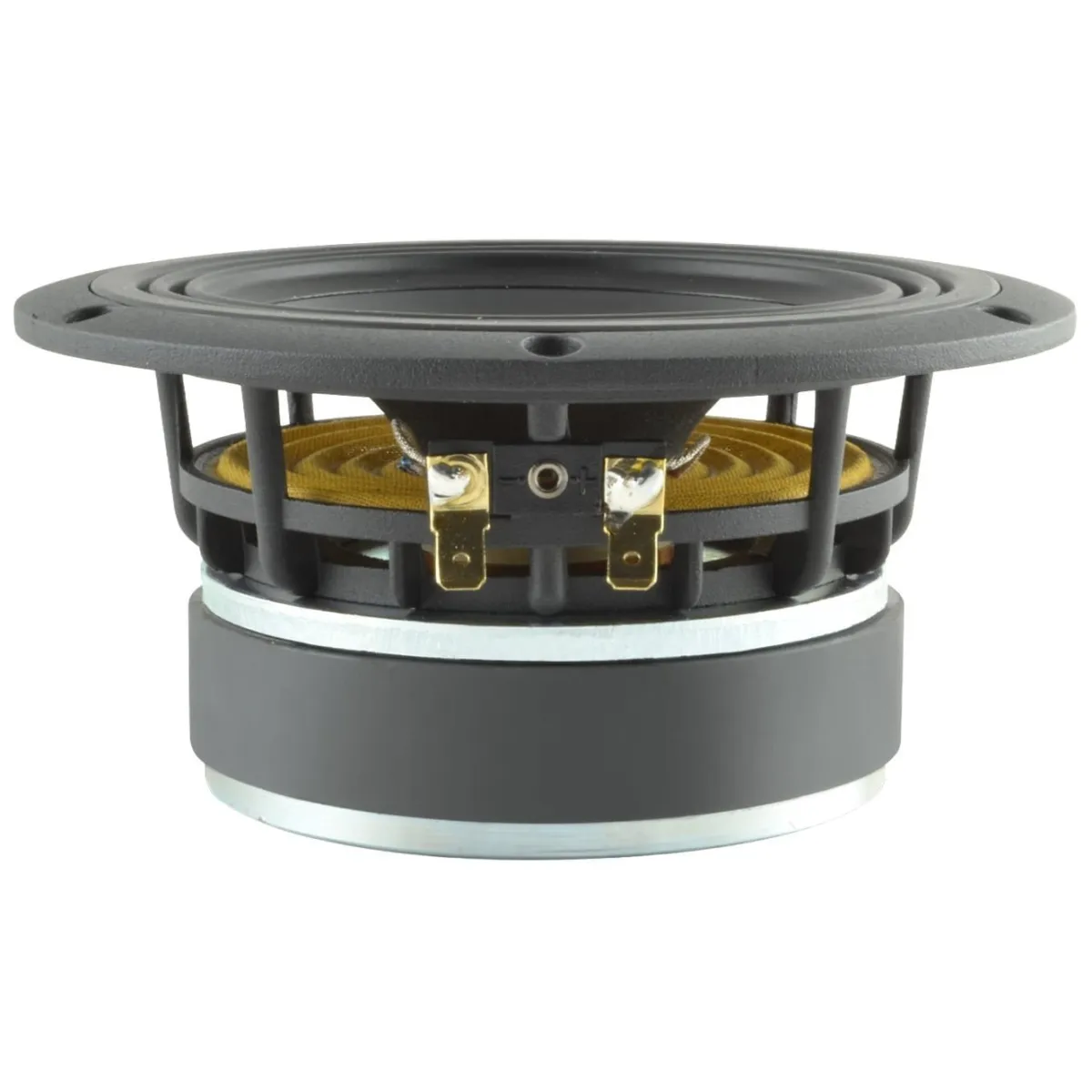

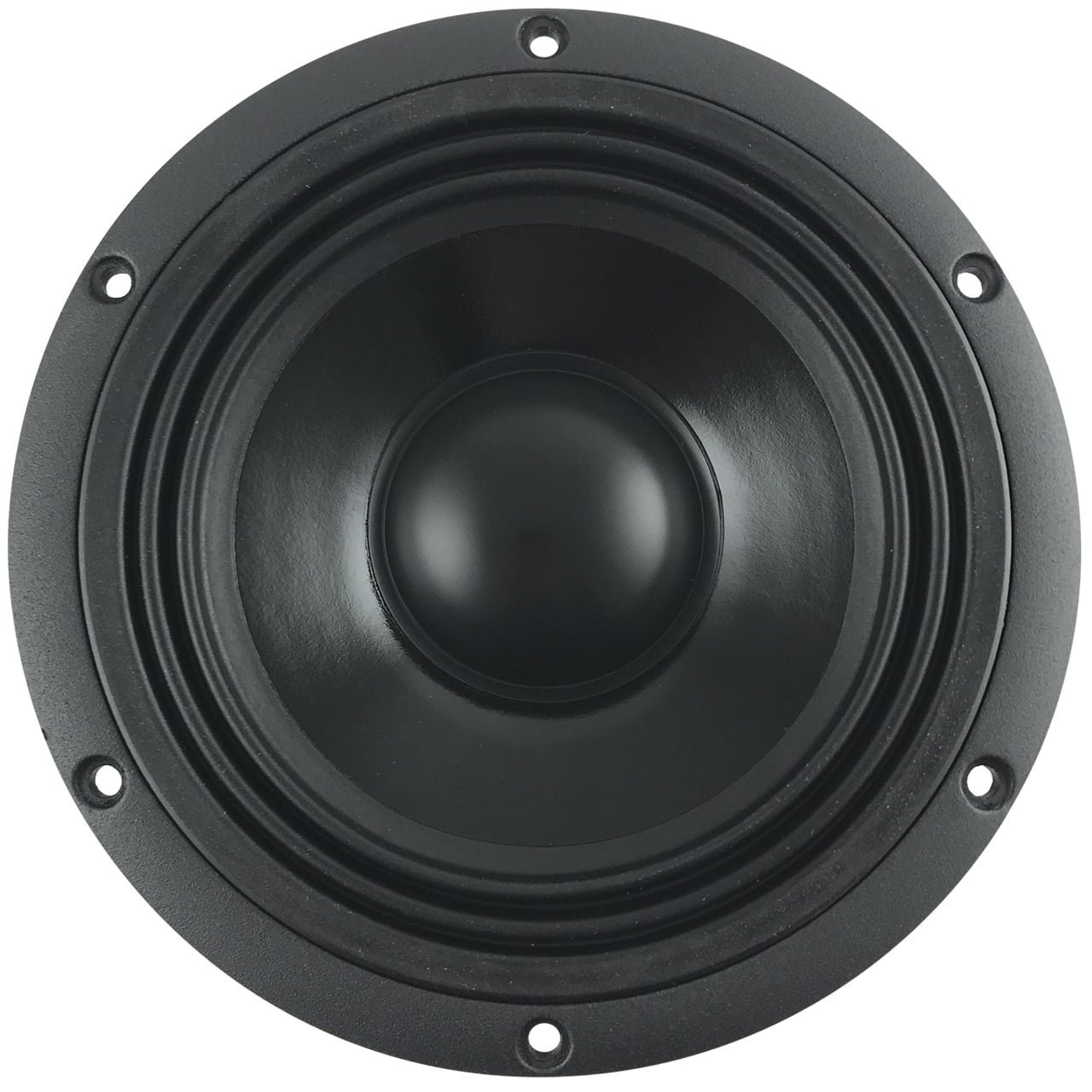

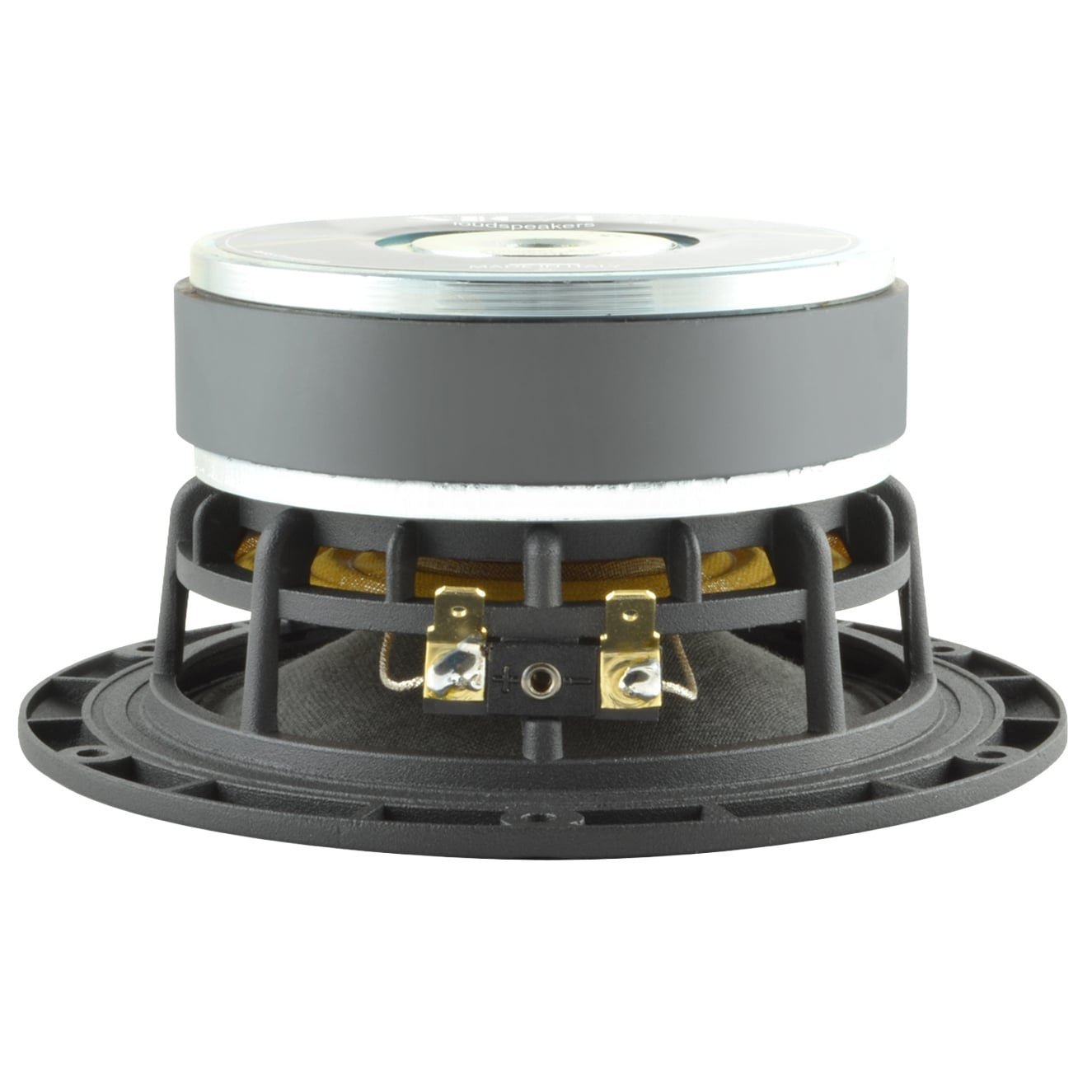

SICA 5,5 H 1,5 CP - 8 Bass-mid woofer

Name: SICA 5,5 H 1,5 CP - 8 Bass-mid woofer | HQ Audio Parts
Brand: SICA
SKU: 5,5 H 1,5 CP - 8
Price: 33090.00 HUF
Availability: OutOfStock

SKU: 5,5 H 1,5 CP - 8

140 mm 8 Ω

Professional audio component. SICA 5,5 H 1,5 CP - 8 Bass-mid woofer provides superior sound quality. Ideal for audio systems.

33 090 Ft

(26 055 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	140 mm
Impedance	8 Ω
Resonance frequency (Fs)	48 Hz
Sensitivity (SPL at 1 m / 2.83 V)	86.9 dB
Maximum linear deflection (Xmax)	4.5 mm

Total Q (Qts)	0.37
Electromagnetic Q (Qes)	0.4
Mechanical Q (Qms)	4.07
DC resistance (Re)	6.1 Ω
Voice coil inductance (L_e)	0.53 mH
Equivalent volume (Iron)	8.4 l
Voice coil diameter	38 mm
Diameter of the baffle cutout	113 mm
Diameter of the access opening	4.2 mm
Depth	71.5 mm
Load capacity	120 W

Tags

Új termékek

The SICA 5,5 H 1,5 CP - 8 Bass-mid woofer is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
