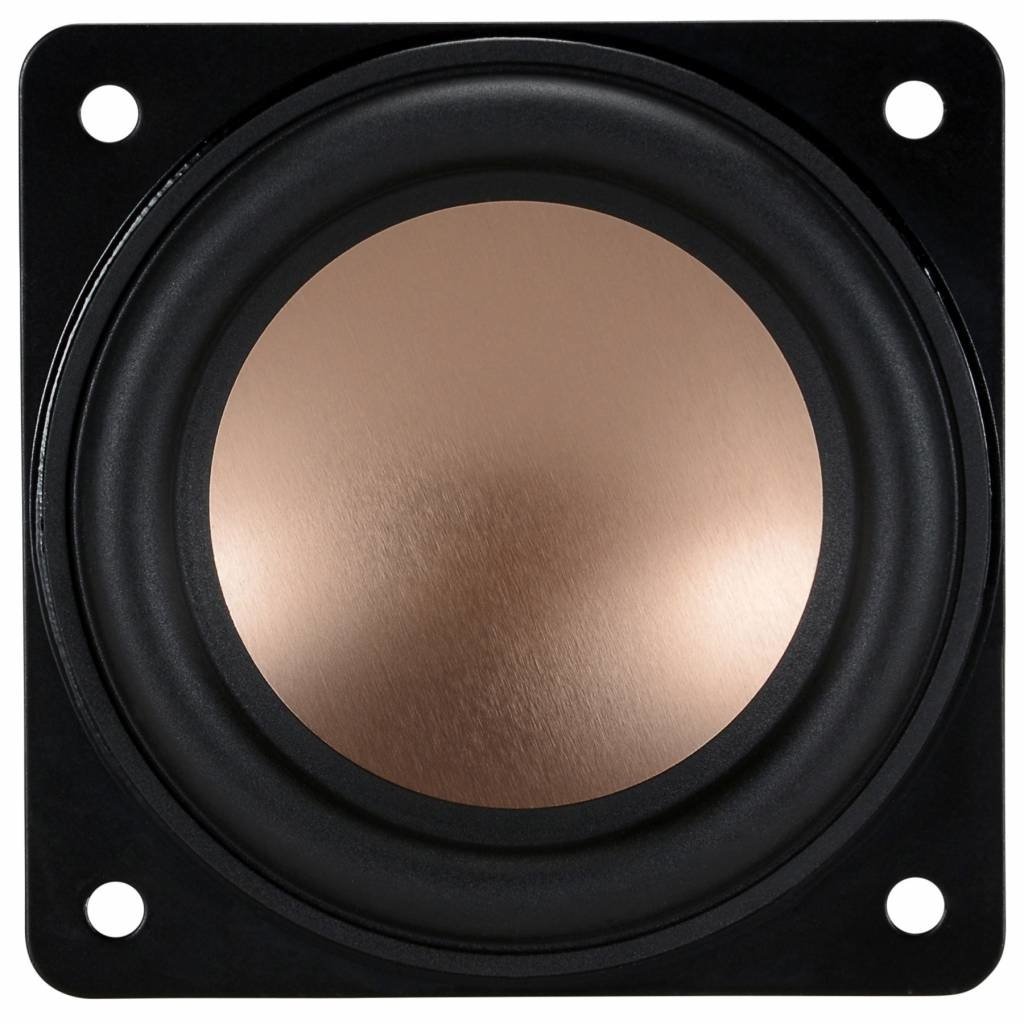

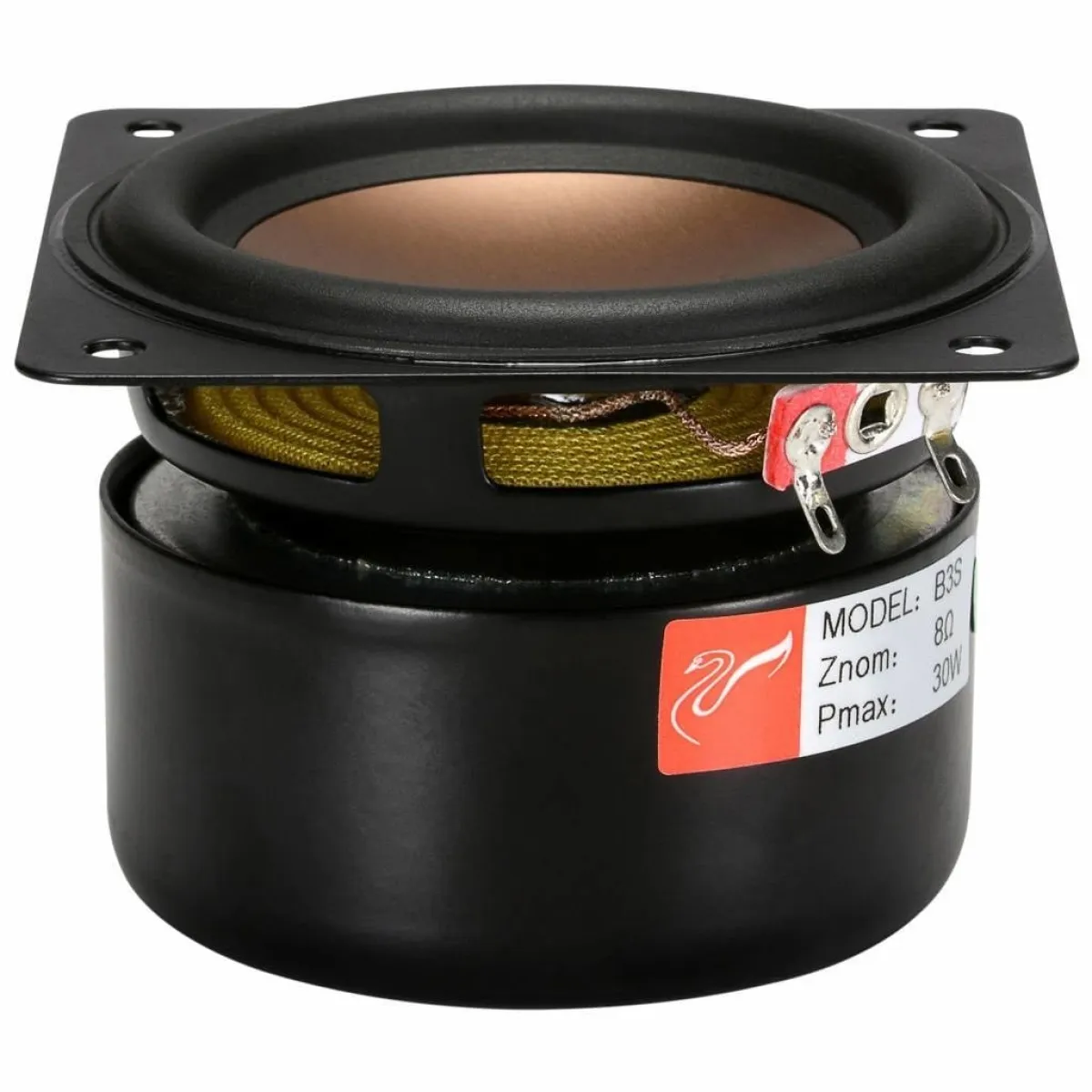

B3S 3" Shielded Aluminum Driver Square Frame

HIVI | Full-range driver

B3S 3" Shielded Aluminum Driver Square Frame

Name: B3S 3" Shielded Aluminum Driver Square Frame | HQ Audio Part
Brand: HiVi
SKU: B3S
Price: 6890.00 HUF
Availability: InStock

SKU: B3S

3 mm 8 Ω

Professional audio component. B3S 3" Shielded Aluminum Driver Square Frame provides superior sound quality. Ideal for audio systems.

6 890 Ft

(5 425 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10+ pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	3 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	82 dB
Resonance frequency (Fs)	100 Hz
Maximum linear deflection (Xmax)	3 mm

Total Q (Qts)	0.88
Electromagnetic Q (Qes)	1.15
Mechanical Q (Qms)	3.75
DC resistance (Re)	6.5 Ω
Equivalent volume (Iron)	0.04 l
Voice coil diameter	0.75 mm
Diameter of the baffle cutout	2.75 mm
Depth	2.13 mm
Load capacity	15 W

Tags

Új termékek

The B3S 3" Shielded Aluminum Driver Square Frame is a professional audio component providing superior sound quality. Precision engineering and premium materials guarantee reliable performance. Suitable for audio systems and applications. Audiophiles and engineers choose this component for exceptional sound quality.
