T-Amp Tripath TA2024 Amplifier module

Name: Tripath erősítő modul | HQ AudioParts
SKU: 320-600
Price: 10990.00 HUF
Availability: OutOfStock

SKU: 320-600

9W × 2 @ 4 Ω (0.04% THD+N). 11W × 2 @ 4 Ω (0.1% THD+N). 6W × 2 @ 8 Ω (0.1% THD+N). 15W × 2 @ 4 Ω (10% THD+N). 10W × 2 @ 8 Ω (THD+N) W Class T

Add high-efficiency audio amplification to your project with this compact amplifier module. It delivers 9W per channel into 4 ohms with only 0.04% total harmonic distortion plus noise.

10 990 Ft

(8 654 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Rated power (W)	9W × 2 @ 4 Ω (0.04% THD+N). 11W × 2 @ 4 Ω (0.1% THD+N). 6W × 2 @ 8 Ω (0.1% THD+N). 15W × 2 @ 4 Ω (10% THD+N). 10W × 2 @ 8 Ω (THD+N) W
Amplifier classification	Class T
Circuit topology	Tripath TA-2024 integrated circuit
Dimensions (mm)	90 x 53 mm
Distance between mounting holes	2.88" x 1.81".

Efficiency

88 %

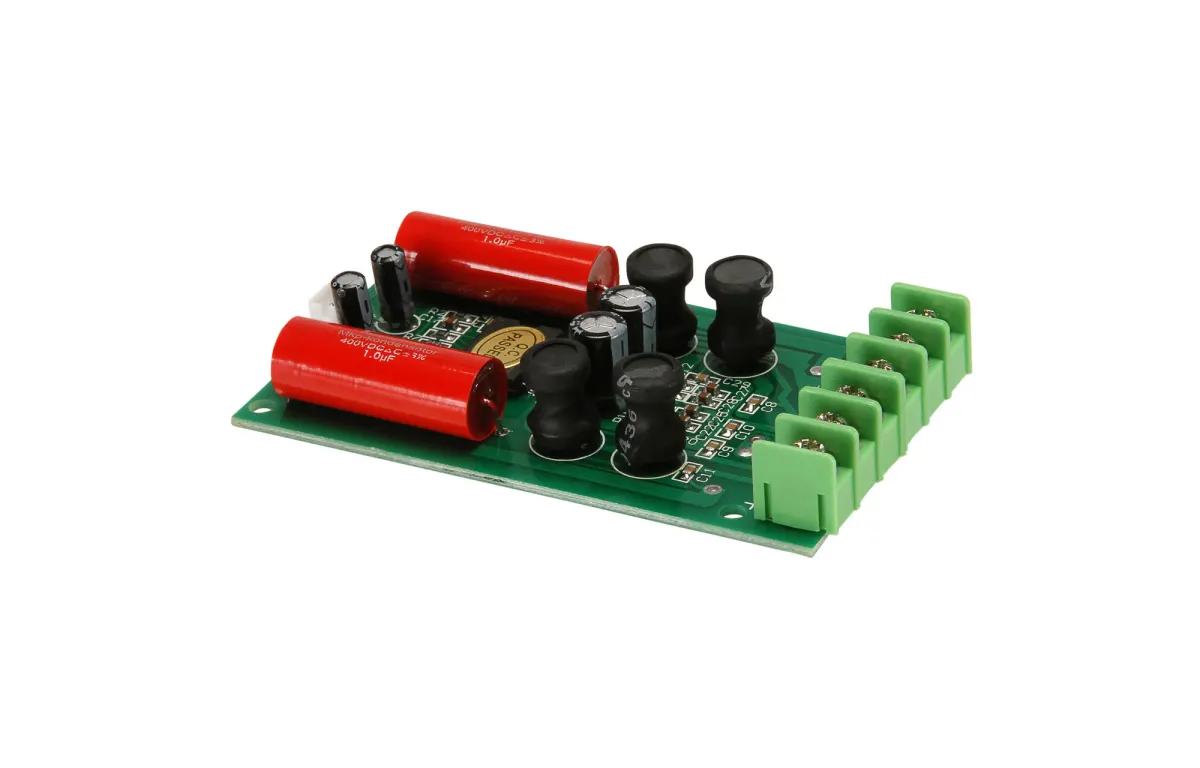

The T-Amp Tripath TA2024 Amplifier Module offers a compact and highly efficient solution for integrating high-quality audio amplification into your projects. As a Class T amplifier, it combines the fidelity of Class A/B designs with the energy efficiency of Class D, making it an ideal choice for battery-powered or space-constrained applications. Whether you are building a portable speaker system, upgrading a vintage radio, or creating a custom desktop audio setup, this module delivers clean, powerful sound in a small footprint.

At its core, the module utilises the renowned Tripath TA-2024 integrated circuit, which ensures low distortion and high linearity. It delivers 9 watts per channel into 4 ohms with a total harmonic distortion plus noise (THD+N) of just 0.04%, rising to 11 watts per channel at 0.1% THD+N. Into 8 ohms, it provides 6 watts per channel at 0.1% THD+N, with an impressive efficiency rating of 88%. The module measures 90 x 53 mm, with mounting hole distances of 2.88 by 1.81 inches, allowing for straightforward integration into enclosures or onto chassis.

With its robust performance and minimal heat generation, this amplifier module is a reliable choice for audio enthusiasts and makers seeking a high-fidelity, low-power amplification solution.
