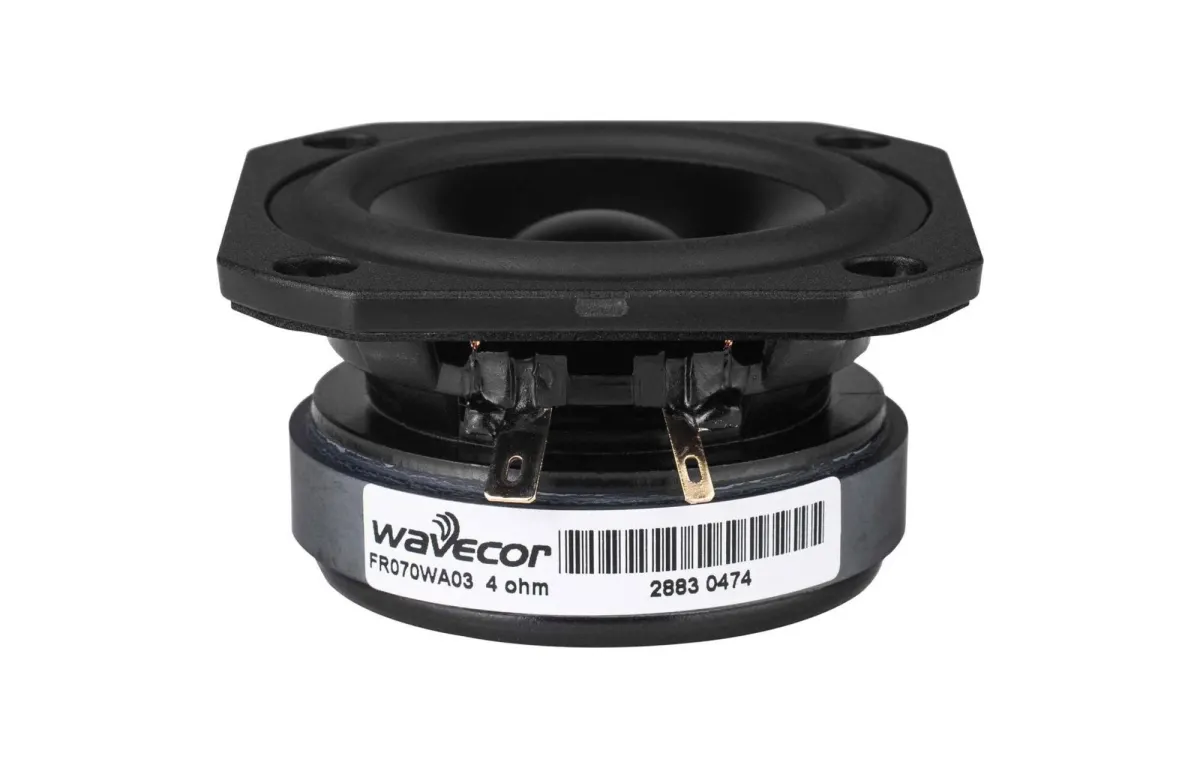

Wavecor FR070WA03 Full-range Woofer

Name: Wavecor FR070WA03 mélysugárzó | HQ AudioParts
Brand: Wavecor
SKU: FR070WA03
Price: 22290.00 HUF
Availability: InStock

SKU: FR070WA03

60 mm 4 Ω

Achieve clear, full-range audio in compact designs with this full-range driver, ideal for small speakers and DIY projects. It features a 4-ohm impedance and a total Q factor of 0.87 for controlled bass response.

22 290 Ft

(17 551 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10+ pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	60 mm
Impedance	4 Ω
Sensitivity (SPL at 1 m / 2.83 V)	86 dB
Resonance frequency (Fs)	114 Hz
Total Q (Qts)	0.87

Electromagnetic Q (Qes)	0.94
Mechanical Q (Qms)	13.1
DC resistance (Re)	3.45 Ω
Voice coil inductance (L_e)	0.71 mH
BL product (BL)	2.3 T·m
The surface area of the cone (Sd)	21 cm²
Equivalent volume (Iron)	0.61 l
Moving mass with air load (Mms)	2 g
Mechanical compliance of the suspension (Cms)	0.97 mm/N
Drive mechanical losses (RMS)	0.11 kg/s
Woofer type	DS2 Audio DAC
Voice coil diameter	22 mm
Dimensions (mm)	70.3 mm
Diameter of the baffle cutout	62.5 mm
# Mounting holes	4
Diameter of the access opening	4.5 mm
Depth	37.5 mm

The Wavecor FR070WA03 Full-range Woofer is a meticulously engineered broadband driver that delivers impressively clear and coherent audio across the frequency spectrum, all within a remarkably compact footprint. Designed for those who demand high-quality sound without sacrificing space, this 60mm nominal diameter unit is the perfect solution for a wide array of audio applications.

This versatile woofer excels in small-scale speaker designs, making it an ideal choice for desktop monitors, portable Bluetooth enclosures, or high-fidelity multimedia systems. It is equally at home in bespoke DIY projects, such as custom soundbars or miniature bookshelf speakers, where its full-range capability eliminates the need for a separate tweeter in many configurations. With a mounting hole diameter of 62.5mm and a depth of just 37.5mm, it integrates seamlessly into tight enclosures.

Technically, the FR070WA03 is defined by a 4-ohm impedance and a total Q factor (Qts) of 0.87, which ensures controlled, well-damped bass response in small sealed or ported boxes. Its sensitivity of 86dB SPL (1m/2.83V) provides efficient output, while the low DC resistance (Re) of 3.45 ohms and a voice coil inductance (Le) of 71µH contribute to excellent transient response and detail retrieval. The robust mechanical design, featuring a Qms of 13.1 and a Qes of 0.94, guarantees reliable performance.

In summary, the Wavecor FR070WA03 offers a compelling blend of compact dimensions and full-range audio fidelity, making it a superb choice for discerning audio enthusiasts and DIY builders alike.
