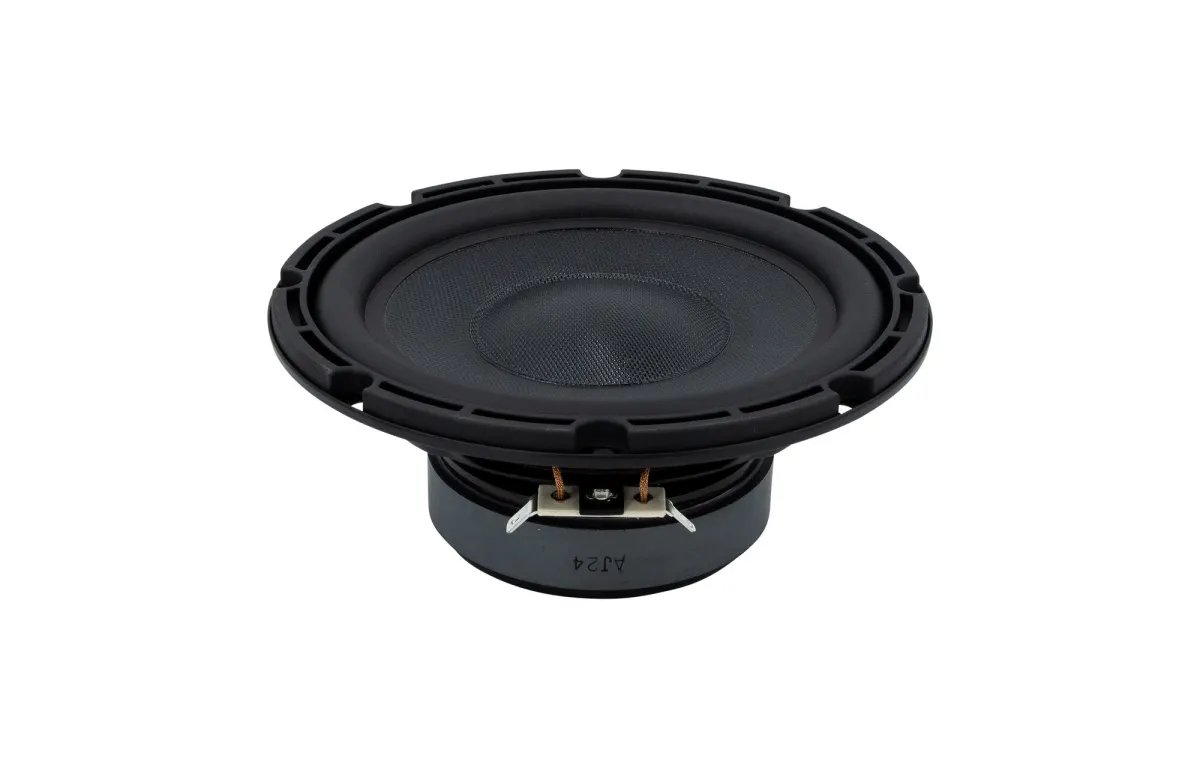

Visaton WF 130 ND Bass-midwoofer

The Visaton WF 130 ND Bass-midwoofer is a high-quality 127 mm driver engineered to deliver precise, articulate bass and midrange performance within compact loudspeaker enclosures. As part of Visaton’s renowned range, this unit combines German engineering with reliable construction, making it an excellent choice for discerning audio enthusiasts and custom speaker builders alike.

This versatile driver is ideally suited for use in two-way bookshelf speakers, small floor-standing designs, or as a dedicated mid-bass unit in multi-way systems. Its controlled response and dynamic capability make it perfect for both home hi-fi setups and professional monitoring applications where clarity and detail are paramount. Whether you are upgrading an existing design or building from scratch, the WF 130 ND offers a balanced foundation for accurate sound reproduction.

Technically, the WF 130 ND features an 8 ohm impedance and a sensitivity of 84 dB (SPL 1m/2.83V), ensuring efficient power handling. With a total Q factor (Qts) of 0.69, it is well-suited for sealed or ported enclosures. The 8.1 mm linear excursion (Xmax) allows for controlled, deep bass extension, while the 0.76 mH voice coil inductance contributes to smooth midrange performance. The driver’s compact 32.8 mm depth and 148.5 mm overall diameter facilitate integration into space-constrained designs.

In summary, the Visaton WF 130 ND is a refined bass-midwoofer that combines technical precision with practical versatility, delivering clear, detailed sound across the lower frequencies for a wide range of audio applications.
