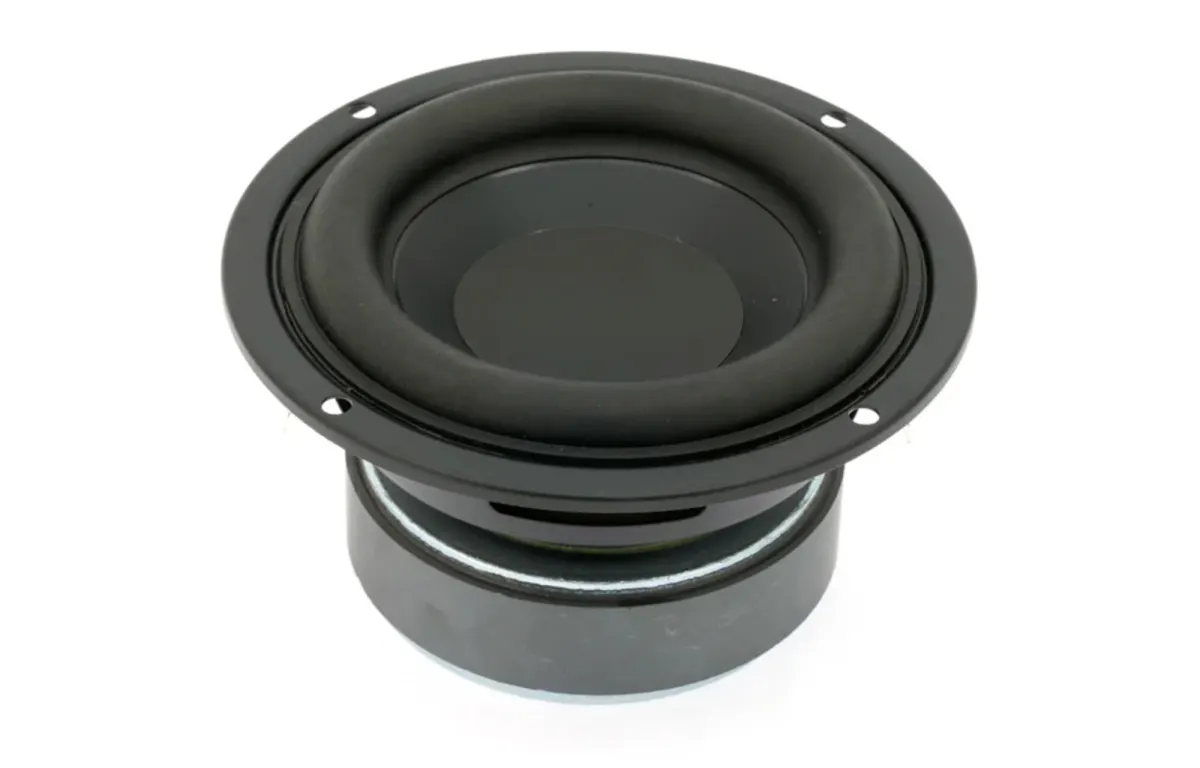

Visaton W 100 X Bass-midwoofer

The Visaton W 100 X Bass-midwoofer is a precision-engineered driver designed to deliver deep, controlled bass from compact enclosures. As part of Visaton’s renowned range, this 4-inch woofer combines high excursion capability with a carefully optimised motor system, making it an ideal choice for audiophiles and DIY speaker builders seeking accurate low-frequency reproduction in space-constrained designs.

This versatile driver excels in sealed and ported cabinets for bookshelf speakers, satellite systems, or small subwoofer applications. Its low impedance and high sensitivity allow it to pair effectively with modern Class D amplifiers, while the generous linear excursion supports punchy, articulate bass even at moderate power levels. Whether used in a two-way design or as a dedicated bass module, the W 100 X brings clarity and depth to music and home cinema setups.

Technically, the Visaton W 100 X features a 7.5 mm linear excursion (Xmax) for robust cone movement, a total Q factor (Qts) selectable between 0.73, 0.42, and 0.37 via impedance options, enabling precise tuning to enclosure type. The 2-ohm impedance and 3.6-ohm DC resistance ensure efficient power transfer, while a resonance frequency of 63 Hz supports extended bass response. With a 97 mm cut-out diameter and four mounting holes, installation is straightforward in standard baffles.

Combining German engineering with practical performance, the Visaton W 100 X offers a compelling solution for achieving authoritative bass in compact loudspeaker projects.
