VISATON | Mid-bass driver

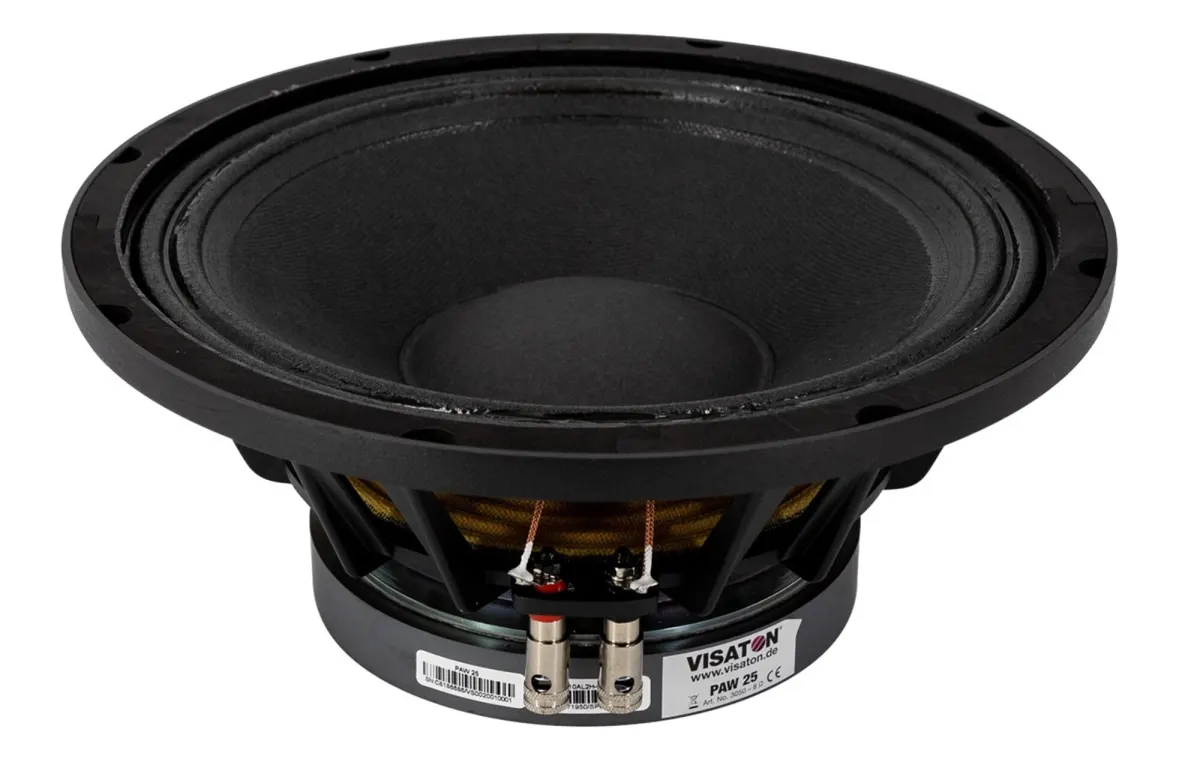

Visaton PAW 25 - 8 Bass-midwoofer

Name: Visaton PAW mélysugárzó | HQ AudioParts
Brand: Visaton
SKU: PAW 25 - 8
Price: 48690.00 HUF
Availability: OutOfStock

SKU: PAW 25 - 8

254 mm 8 Ω

Achieve clear, dynamic bass and midrange in your speaker builds with this 10-inch driver. Its low total Q factor of 0.33 ensures tight, controlled response in sealed enclosures. The 8-ohm impedance and 92 dB sensitivity rating simplify system matching.

48 690 Ft

(38 339 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	254 mm
Impedance	8 Ω
Resonance frequency (Fs)	52 Hz
Sensitivity (SPL at 1 m / 2.83 V)	92 dB
Power tolerance (max)	45 W

Maximum linear deflection (Xmax)	3.5 mm
Total Q (Qts)	0.33
Electromagnetic Q (Qes)	0.34
Mechanical Q (Qms)	9.5
DC resistance (Re)	6.5 Ω
Voice coil inductance (L_e)	0.9 mH
The surface area of the cone (Sd)	353 cm²
Equivalent volume (Iron)	44 l
Mechanical compliance of the suspension (Cms)	0.24 mm/N
Voice coil diameter	65 mm
Diameter of the baffle cutout	23 mm

The Visaton PAW 25 - 8 Bass-midwoofer is a high-quality 10-inch driver designed to deliver clear, dynamic bass and midrange performance in a variety of speaker builds. Engineered for audiophiles and DIY enthusiasts alike, this unit excels in applications where precise, controlled low-frequency reproduction is essential, making it an ideal choice for sealed enclosures, two-way systems, or as a dedicated mid-bass driver in multi-way designs.

Technically, the PAW 25 - 8 features a low total Q factor (Qts) of 0.33, ensuring tight, well-damped response that minimises boominess and enhances transient accuracy. With a sensitivity of 92 dB SPL at 1m/2.83V, it offers efficient power handling, while its 8-ohm impedance simplifies integration with a wide range of amplifiers. The driver’s mechanical Q (Qms) of 9.5 and electromagnetic Q (Qes) of 0.34 contribute to its controlled behaviour, and a maximum linear excursion (Xmax) of 3.5 mm allows for respectable output levels. The 65 mm voice coil diameter and 0.9 mH inductance support reliable performance, while the resonance frequency (Fs) of 52 Hz and equivalent volume (Vas) of 44 litres provide flexibility for enclosure design. With a power handling capacity of 45 watts RMS and a DC resistance (Re) of 6.5 ohms, this Visaton driver is a robust, versatile component for achieving articulate, impactful sound in your projects.
