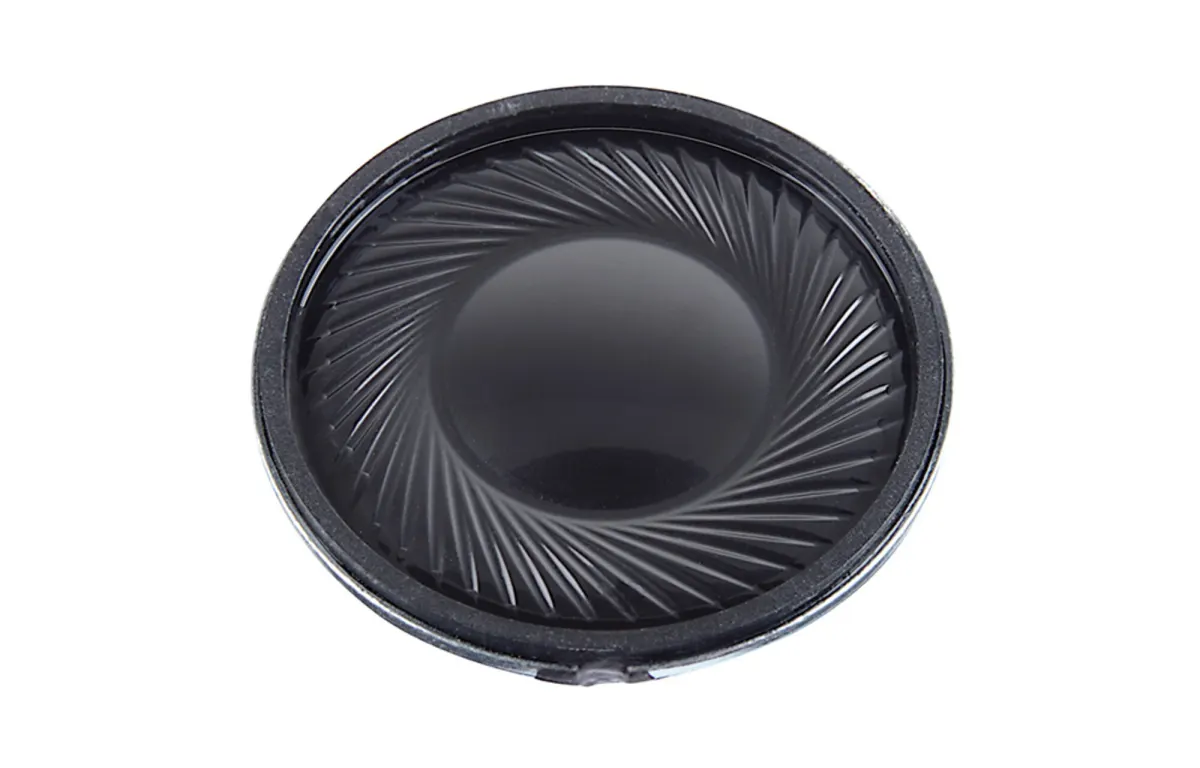

Visaton K 28 WP - 8 Micro Speaker

The Visaton K 28 WP - 8 Micro Speaker is a compact yet capable audio component designed to deliver clear sound reproduction in space-constrained applications. This 28 mm driver is an ideal choice for engineers and hobbyists seeking a reliable miniature speaker for portable electronics, alarm systems, or small-scale audio projects where size is at a premium but audio quality cannot be compromised.

This micro speaker excels in scenarios where traditional larger drivers cannot fit, such as in handheld devices, compact radios, or embedded audio modules. Its small footprint makes it particularly suitable for DIY electronics, model building, or as a replacement speaker in tight enclosures where efficient sound projection is required.

Technically, the Visaton K 28 WP - 8 offers a sensitivity of 75 dB SPL at 1 metre with 2.83V input, ensuring adequate volume for its size. It can handle a maximum power of 2 W and features an impedance of 8 ohms, making it compatible with a wide range of low-power amplifiers. The speaker has a resonance frequency of 6 Hz, a linear excursion (Xmax) of 0.5 mm, and a voice coil diameter of 13.5 mm. The cut-out diameter for the baffle is 24 mm, facilitating straightforward integration into custom enclosures.

This Visaton micro speaker combines compact dimensions with dependable performance, offering a practical solution for achieving clear audio in the most space-limited designs.
