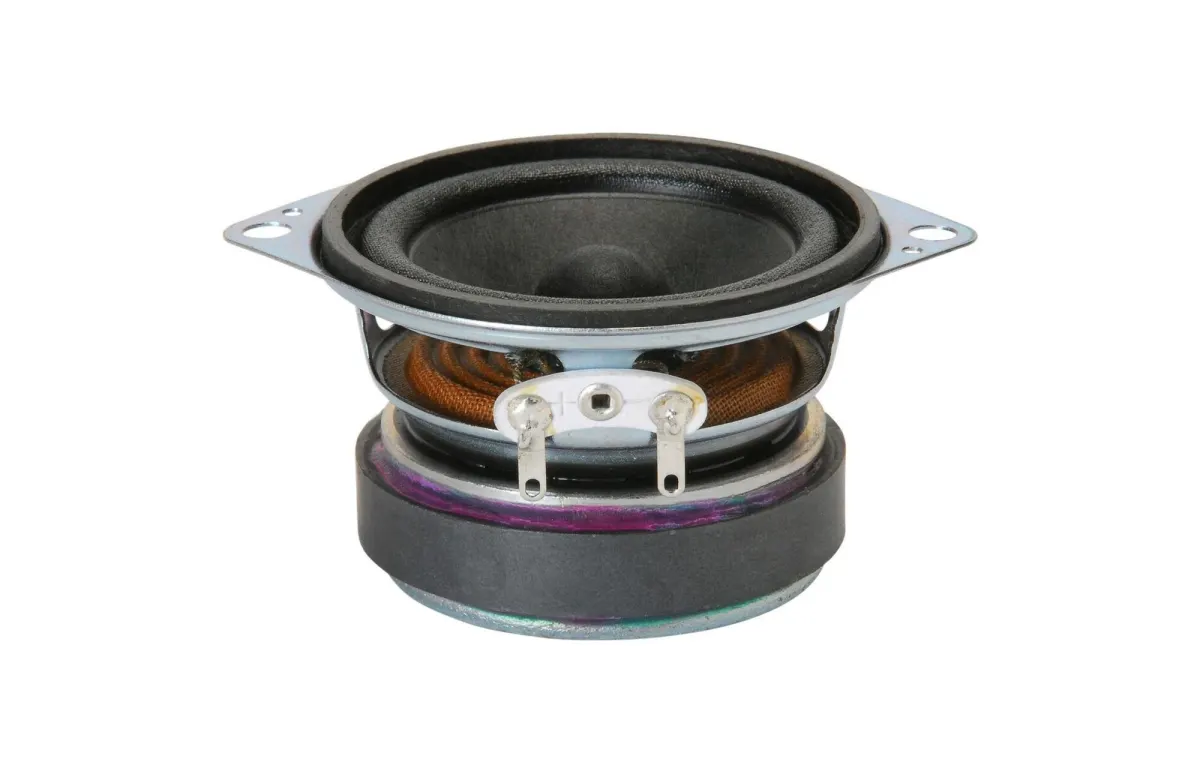

Visaton FRS 5 - 8 Full-range Woofer

Name: Visaton FRS mélysugárzó | HQ AudioParts
Brand: Visaton
SKU: FRS 5 - 8
Price: 5190.00 HUF
Availability: LimitedAvailability

SKU: FRS 5 - 8

50.8 mm 8 Ω

Achieve clear, natural full-range sound in compact speaker designs with this broadband woofer. It features a 50.8mm nominal diameter and 8-ohm impedance for straightforward integration. The total Q factor (Qts) is 1.15, ensuring controlled bass response in small enclosures.

5 190 Ft

(4 087 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 8 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	50.8 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	84 dB
Power tolerance (max)	8 W
Resonance frequency (Fs)	27 Hz

Maximum linear deflection (Xmax)	2 mm
Total Q (Qts)	1.15
Electromagnetic Q (Qes)	1.81
Mechanical Q (Qms)	3.19
DC resistance (Re)	7.2 Ω
Voice coil inductance (L_e)	0.2 mH
BL product (BL)	1.6 T·m
The surface area of the cone (Sd)	12 cm²
Equivalent volume (Iron)	0.16 l
Moving mass with air load (Mms)	0.5 g
Mechanical compliance of the suspension (Cms)	0.783 mm/N
Woofer type	DS2 Audio DAC
Voice coil diameter	14 mm
Dimensions (mm)	68 mm
Screw head diameter	60 mm
Diameter of the baffle cutout	46 mm
# Mounting holes	4
Diameter of the access opening	4.2 mm

The Visaton FRS 5 - 8 Full-range Woofer is a compact broadband driver designed to deliver clear, natural sound across the frequency spectrum, making it an ideal choice for space-conscious audio projects. This versatile unit excels in applications such as portable Bluetooth speakers, desktop monitors, or small-scale home theatre systems where a single driver must handle both midrange and treble duties without the need for a separate tweeter. Its full-range capability ensures coherent sound reproduction, while the 8-ohm impedance simplifies integration into existing amplifier circuits.

Technically, the FRS 5 - 8 features a nominal diameter of 50.8mm and a mounting cut-out of just 46mm, allowing for straightforward installation in compact enclosures. The driver offers a sensitivity of 84 dB SPL at 1m/2.83V, with a total Q factor (Qts) of 1.15, indicating suitability for sealed or infinite baffle designs. The voice coil inductance is a low 0.2 mH, contributing to extended high-frequency response, while the maximum linear excursion (Xmax) of 2mm ensures controlled bass output. With a DC resistance of 7.2 ohms and four mounting holes on a 60mm bolt circle, this woofer is both practical and reliable for DIY enthusiasts and professional integrators alike. Experience the clarity and convenience of a true full-range driver with the Visaton FRS 5 - 8.
