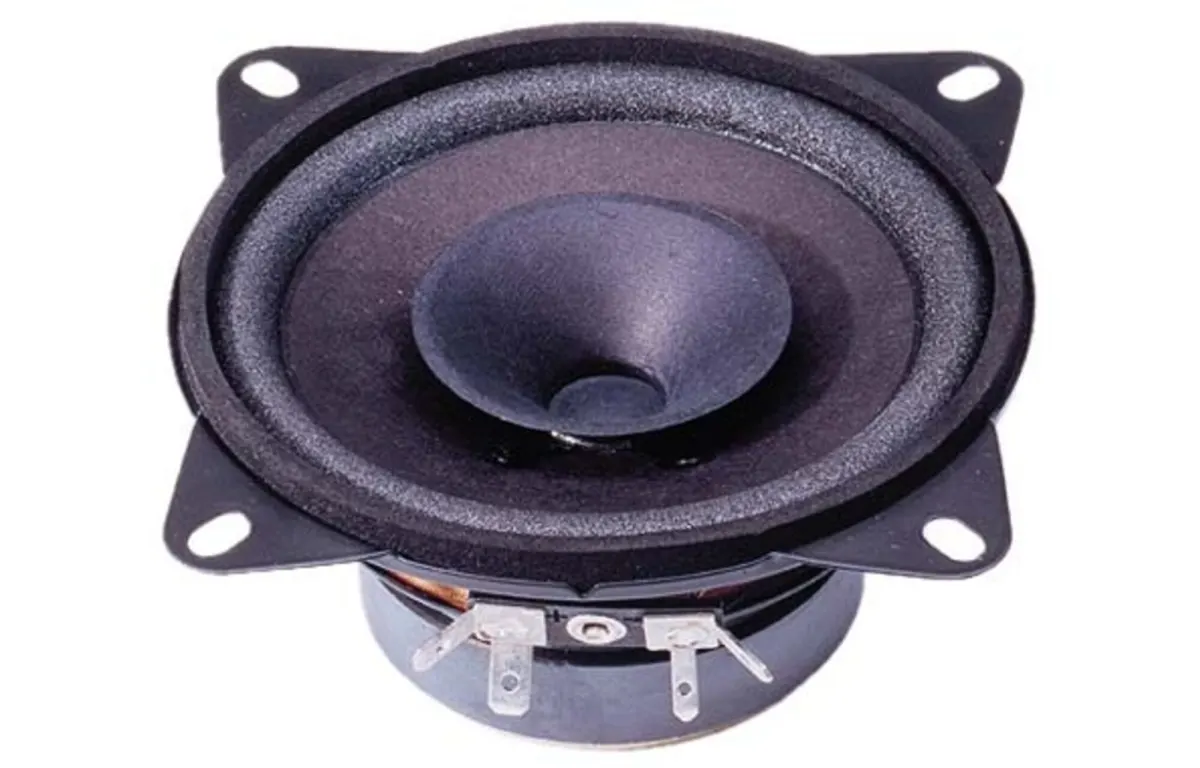

Visaton FR 10 HM - 8 Full-range Woofer

Name: Visaton FR mélysugárzó | HQ AudioParts
Brand: Visaton
SKU: FR 10 HM - 8
Price: 3990.00 HUF
Availability: LimitedAvailability

SKU: FR 10 HM - 8

101.6 mm 8 Ω

Achieve deep, full-range bass response in compact speaker designs with this broadband woofer. It features a 101.6mm nominal diameter and a total Q factor of 1.44 for controlled low-frequency performance.

3 990 Ft

(3 142 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	101.6 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	86 dB
Power tolerance (max)	30 W
Resonance frequency (Fs)	12000 Hz

Maximum linear deflection (Xmax)	2 mm
Total Q (Qts)	1.44
Electromagnetic Q (Qes)	1.91
Mechanical Q (Qms)	5.89
DC resistance (Re)	7.2 Ω
Voice coil inductance (L_e)	0.2 mH
BL product (BL)	2.9 T·m
The surface area of the cone (Sd)	50 cm²
Equivalent volume (Iron)	2 l
Mechanical compliance of the suspension (Cms)	0.564 mm/N
Woofer type	DS2 Audio DAC
Voice coil diameter	14 mm
Dimensions (mm)	100 mm + 116.5 mm holes mm
Diameter of the baffle cutout	94 mm
# Mounting holes	2x4 HD Boxed USB DAC Digital Signal Processor

The Visaton FR 10 HM - 8 is a full-range broadband woofer engineered to deliver impressively deep and articulate bass response from a compact chassis. Designed for audio enthusiasts and DIY speaker builders, this driver excels in applications where space is limited but sonic quality cannot be compromised. It is ideally suited for small to medium-sized sealed or ported enclosures, making it an excellent choice for bookshelf speakers, multimedia systems, or custom audio projects that require a single driver capable of handling a wide frequency range with authority.

Technically, the FR 10 HM - 8 features a nominal diameter of 101.6 mm and an impedance of 8 ohms, with a maximum power handling of 30 watts. Its low resonance frequency of just 12 Hz, combined with a total Q factor (Qts) of 1.44, ensures controlled, extended low-frequency performance. The driver boasts a mechanical Q (Qms) of 5.89 and an electrical Q (Qes) of 1.91, with a linear excursion (Xmax) of 2 mm. The voice coil inductance is a mere 0.2 mH, and the DC resistance measures 7.2 ohms. A sensitivity of 86 dB (1m/2.83V) provides efficient output. The chassis requires a cut-out diameter of 94 mm and is secured via four mounting holes (4.8 × 7.8 mm), with overall dimensions of 100 mm plus a 116.5 mm hole spacing. This robust construction ensures reliable, full-range sound reproduction in a variety of compact designs.
