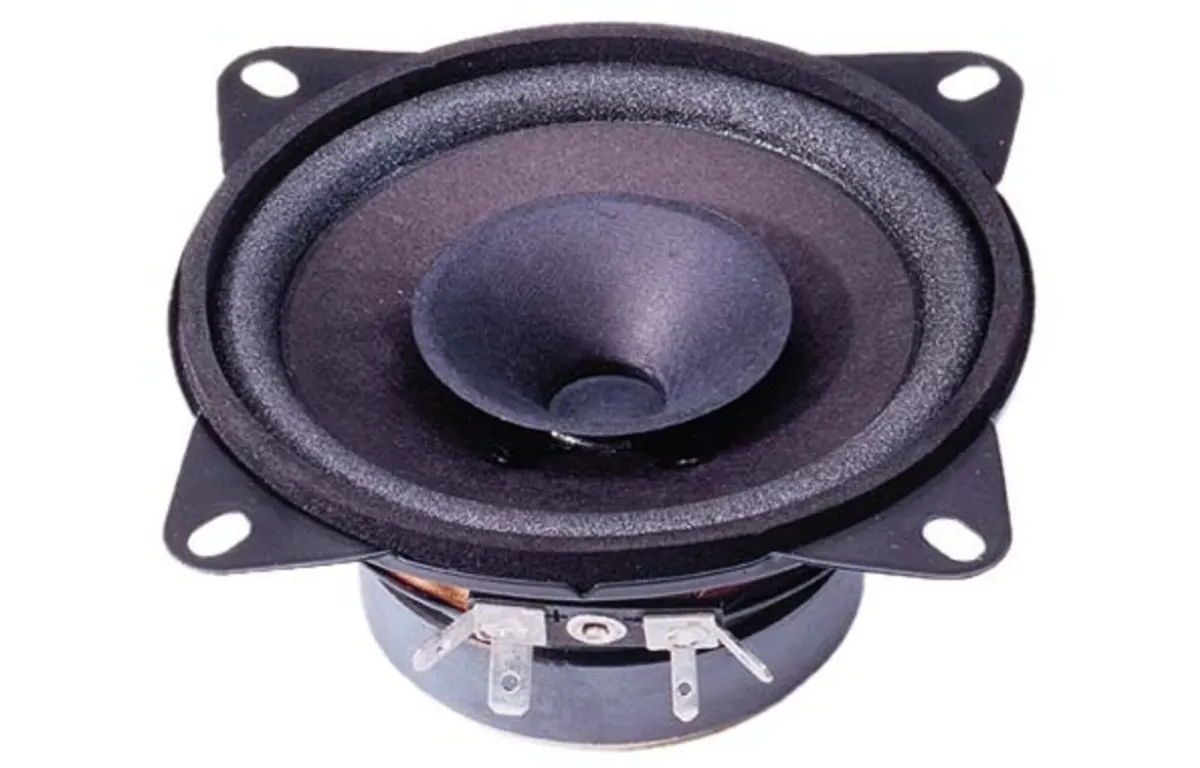

Visaton FR 10 HM - 4 Full-range Woofer

Name: Visaton FR mélysugárzó | HQ AudioParts
Brand: Visaton
SKU: FR 10 HM - 4
Price: 3990.00 HUF
Availability: InStock

SKU: FR 10 HM - 4

101.6 mm 4 Ω

Achieve deep, full-range audio in compact designs with this broadband woofer. It delivers a wide frequency response from a 12 Hz resonance frequency. The total Q factor of 1.13 supports open-baffle or sealed enclosure use.

3 990 Ft

(3 142 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10+ pcs Aug 6.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	101.6 mm
Impedance	4 Ω
Sensitivity (SPL at 1 m / 2.83 V)	86 dB
Power tolerance (max)	30 W
Resonance frequency (Fs)	12000 Hz

Maximum linear deflection (Xmax)	2 mm
Total Q (Qts)	1.13
Electromagnetic Q (Qes)	1.44
Mechanical Q (Qms)	5.35
DC resistance (Re)	3.2 Ω
Voice coil inductance (L_e)	0.2 mH
BL product (BL)	2.1 T·m
The surface area of the cone (Sd)	50 cm²
Equivalent volume (Iron)	2.1 l
Mechanical compliance of the suspension (Cms)	0.592 mm/N
Woofer type	DS2 Audio DAC
Voice coil diameter	14 mm

The Visaton FR 10 HM - 4 is a full-range broadband woofer engineered to deliver impressively deep and coherent audio from a compact footprint. As a versatile driver, it excels in applications where space is limited but sound quality cannot be compromised. Ideal for use in open-baffle loudspeakers, small bookshelf designs, or custom audio projects, this unit provides a natural, uncoloured reproduction across a wide frequency spectrum, making it suitable for both music and voice reproduction in home or professional settings.

Technically, this woofer boasts a remarkably low resonance frequency of just 12 Hz, enabling it to produce profound bass extension despite its modest 101.6 mm nominal diameter. The total Q factor (Qts) of 1.13, combined with a mechanical Q (Qms) of 5.35 and an electrical Q (Qes) of 1.44, indicates a driver well-suited to open-baffle or infinite baffle enclosures, where its high Qts allows for controlled low-frequency performance. With a maximum power handling of 30 watts and a sensitivity of 86 dB SPL (1m/2.83V), it offers efficient operation. The 4-ohm impedance and 3.2-ohm DC resistance ensure compatibility with a wide range of amplifiers. Additional features include a 14 mm voice coil, a linear excursion (Xmax) of 2 mm, and an equivalent volume (Vas) of 2.1 litres, all contributing to its precise and dynamic sound. This Visaton driver is a superb choice for audiophiles seeking full-range clarity in compact, open designs.
