T1-1942SB Speaker Module 2-5/16" x 2-5/16"

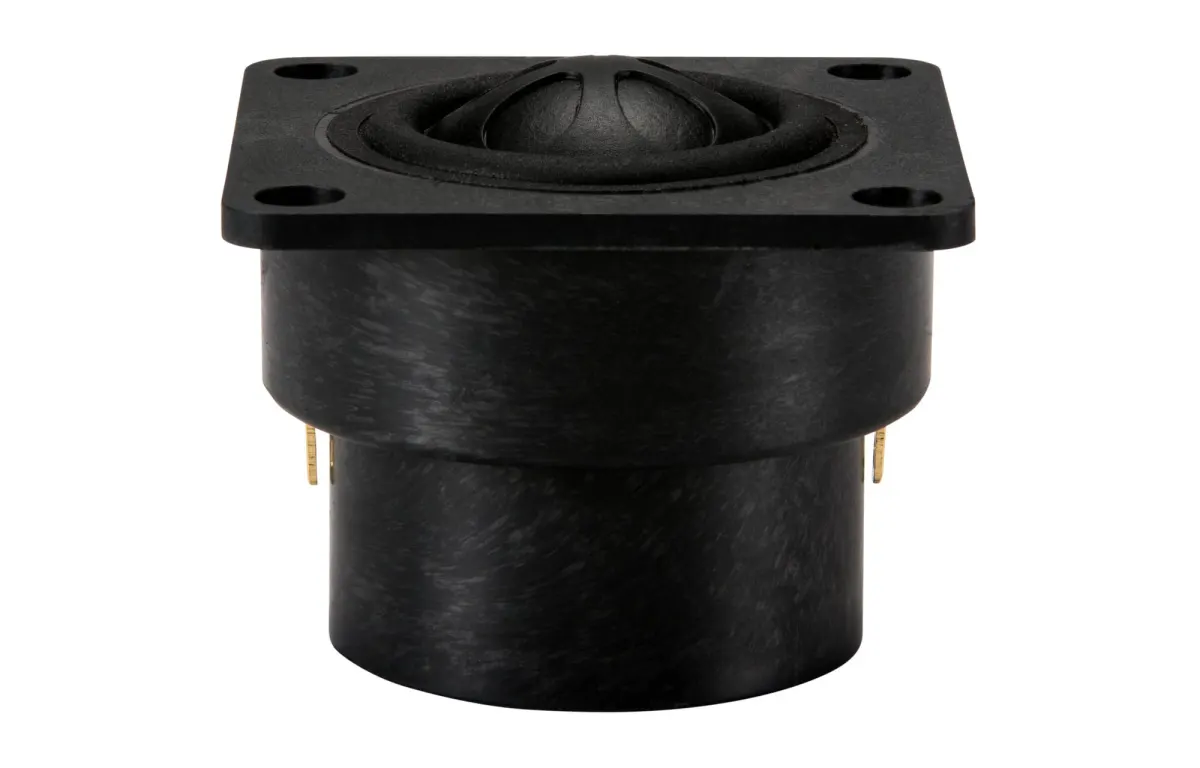

The Tang Band T1-1942SB Speaker Module is a compact yet powerful full-range audio solution, engineered to deliver clear and detailed sound reproduction within space-constrained enclosures. Measuring just 59 x 59 mm with a slim 50.2 mm depth, this module is ideally suited for bespoke audio projects, portable speaker builds, multimedia systems, and custom installations where high-quality sound must be achieved without sacrificing valuable real estate. Its robust polypropylene composite cone and rubber surround ensure durable, low-distortion performance across a wide frequency range.

Technically, the module features a neodymium magnet for exceptional efficiency, yielding a sensitivity of 82 dB SPL at 1 metre with 2.83 V input. The 4-ohm impedance and maximum power handling of 8 watts allow for straightforward integration with compact amplifiers. The polymer basket and frame contribute to a lightweight yet rigid structure, while the 55.9 mm cut-out diameter and 66 mm screw circle accommodate standard mounting. Four fixing points secure the module firmly, and the passive radiator design enhances low-frequency extension without requiring a ported enclosure. With an EAN of 848864015118, this Tang Band speaker module is a refined choice for discerning audio enthusiasts seeking premium performance in a miniature footprint.
