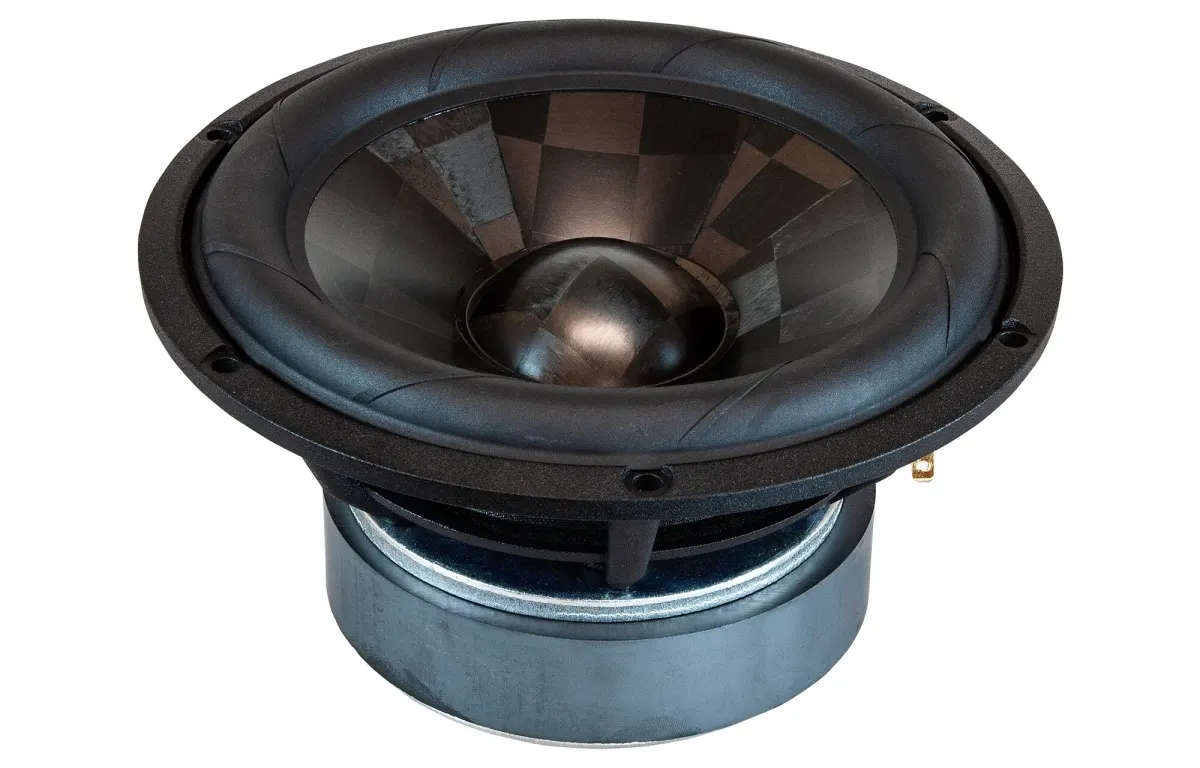

SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

SEAS | Bass mid-bass subwoofer

SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

Name: SEAS TPCD mélysugárzó | HQ AudioParts
Brand: SEAS
SKU: W19NX004
Price: 221990.00 HUF
Availability: LimitedAvailability

SKU: W19NX004

177.8 mm 8 Ω

Achieve precise mid-bass reproduction with exceptional transient response, thanks to the rigid TPCD cone and steel basket construction. This 6.5-inch driver from the SEAS Excel series delivers a linear excursion of 14 mm for dynamic, controlled low frequencies. Total Q factor is 0.39, ensuring accurate alignment in sealed or vented enclosures.

221 990 Ft

(174 795 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. 4 pcs júl. 9.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	177.8 mm
Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	86 dB
Power tolerance (max)	34 W
Maximum linear deflection (Xmax)	14 mm

Total Q (Qts)	0.39
Electromagnetic Q (Qes)	0.42
Mechanical Q (Qms)	4.81
DC resistance (Re)	6 Ω
Voice coil inductance (L_e)	0.38 mH
BL product (BL)	7.9 T·m
The surface area of the cone (Sd)	146 cm²
Equivalent volume (Iron)	33 l
Mechanical compliance of the suspension (Cms)	1.06 mm/N
Woofer type	VMV D1se MQA Hi-End Audio DAC with Bluetooth 5.0 AptX
Membrane material	TPCD
Voice coil diameter	39 mm
Voice coil carrier	Titanium
Basket / frame material	Steel
Subwoofer Series	SEAS Excel Series
# Mounting holes	6

The SEAS TPCD W19NX004 - E0117-08 Mid-bass driver represents a pinnacle of engineering from the renowned SEAS Excel series, designed for audiophiles who demand uncompromising sound quality. This 6.5-inch driver excels in delivering precise mid-bass reproduction with exceptional transient response, making it ideal for high-fidelity two-way or three-way loudspeaker systems. Whether you are building a dedicated studio monitor, a home cinema setup, or a high-end stereo pair, this driver ensures every note is rendered with clarity and authority.

At the heart of this driver lies a rigid TPCD (Thermoplastic Composite Diaphragm) cone, which combines low mass with high stiffness to minimise breakup and distortion. The robust steel basket provides a stable foundation, reducing unwanted resonances and ensuring consistent performance. With an impedance of 8 ohms, a DC resistance of 6 ohms, and a sensitivity of 86 dB (SPL 1m/2.83V), it pairs well with a variety of amplifiers. The total Q factor of 0.39, along with a mechanical Q of 4.81 and an electrical Q of 0.42, indicates controlled damping for accurate bass response. A maximum linear excursion of 14 mm and a power handling of 34 watts allow for dynamic playback without compression. The voice coil inductance of 0.38 mH further enhances transient speed.

This driver is a superb choice for those seeking authentic, detailed low-frequency performance in a compact form factor.
