SB Audience ROSSO-10CX300 Coaxial Woofer

SB AUDIENCE | Coaxial subwoofer

SB Audience ROSSO-10CX300 Coaxial Woofer

Name: SB Audience Audience mélysugárzó 10' | HQ AudioParts
Brand: SB Audience
SKU: ROSSO-10CX300
Price: 107990.00 HUF
Availability: OutOfStock

SKU: ROSSO-10CX300

254 mm 96 dB

Achieve powerful, low-distortion bass in compact enclosures with this 10-inch coaxial subwoofer, designed for high-output car audio and home theatre systems. Its integrated tweeter simplifies installation while maintaining a wide frequency response. The subwoofer delivers a sensitivity of 96 dB SPL at 1m/2.83V.

107 990 Ft

(85 031 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	254 mm
Sensitivity (SPL at 1 m / 2.83 V)	96 dB
Power tolerance (max)	7 W
Resonance frequency (Fs)	49 Hz
Maximum linear deflection (Xmax)	8.2 mm

Total Q (Qts)	0.49
Electromagnetic Q (Qes)	0.52
Mechanical Q (Qms)	6.99
DC resistance (Re)	6.2 Ω
Voice coil inductance (L_e)	0.58 mH
BL product (BL)	12.1 T·m
The surface area of the cone (Sd)	530.9 cm²
Equivalent volume (Iron)	90.4 l
Drive mechanical losses (RMS)	2.07 kg/s
Voice coil diameter	60.6 mm
Magnetic material	Ferrite / Neodymium
Basket / frame material	Aluminum
Subwoofer Series	SB Audience Rosso Series
Dimensions (mm)	322.5 mm
Screw head diameter	306.5 mm
Diameter of the baffle cutout	287 mm
# Mounting holes	8
Diameter of the access opening	6.9 mm
Depth	173.5 mm

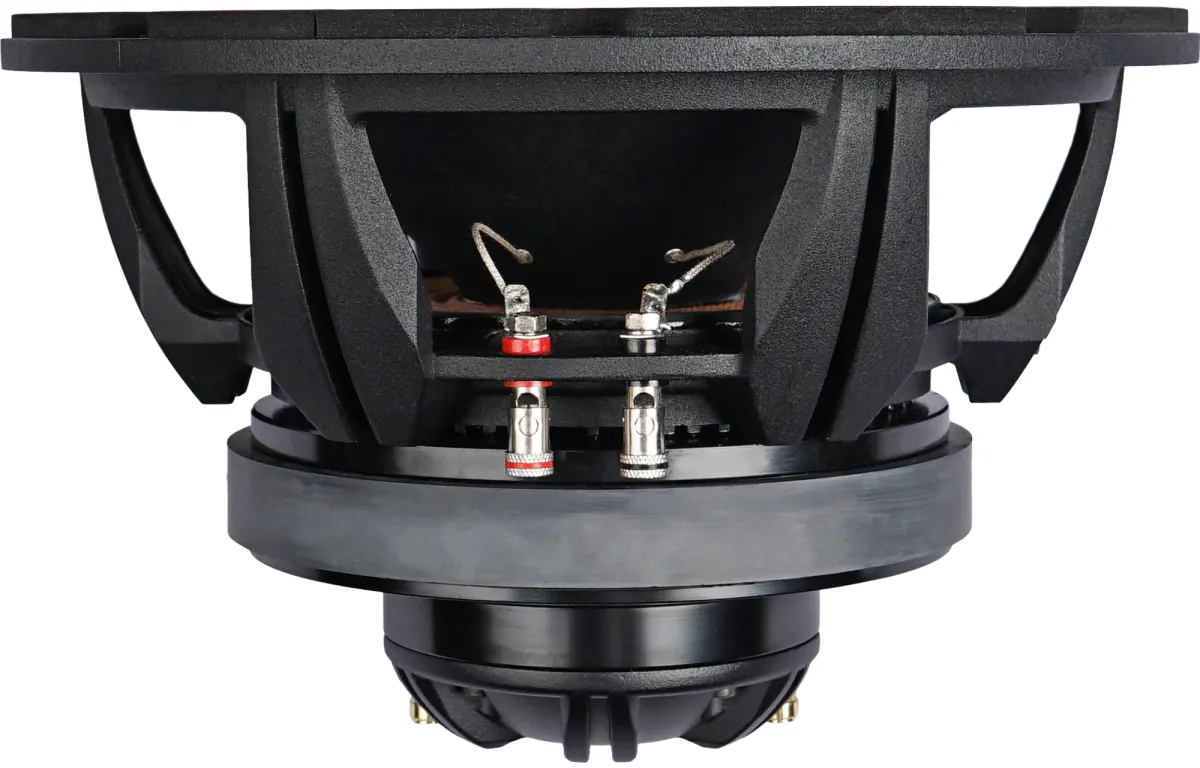

The SB Audience ROSSO-10CX300 is a 10-inch coaxial subwoofer engineered to deliver powerful, low-distortion bass without compromising on space. Combining a dedicated low-frequency driver with an integrated tweeter, this unit simplifies installation while maintaining exceptional audio clarity, making it an ideal choice for discerning audiophiles.

This versatile subwoofer excels in high-output car audio systems, where its compact design allows for seamless integration into tight enclosures. It is equally at home in home theatre setups, providing the deep, controlled low-end required for immersive cinematic experiences. The coaxial configuration ensures a cohesive soundstage, perfect for both music and film enthusiasts who demand precision.

Technically, the ROSSO-10CX300 features a 254mm nominal diameter with a maximum linear excursion of 8.2mm, ensuring robust bass response. Its sensitivity of 96dB (SPL 1m/2.83V) guarantees high efficiency, while the total Q factor (Qts) of 0.49 balances transient speed and extension. The 6.2-ohm DC resistance and 0.58mH voice coil inductance contribute to stable performance, and the 173.5mm mounting depth facilitates flexible installation.

With a 322.5mm overall diameter and eight mounting holes on a 306.5mm bolt circle, this subwoofer is built for straightforward integration. The SB Audience ROSSO-10CX300 delivers authoritative, articulate bass in a compact, coaxial package.
