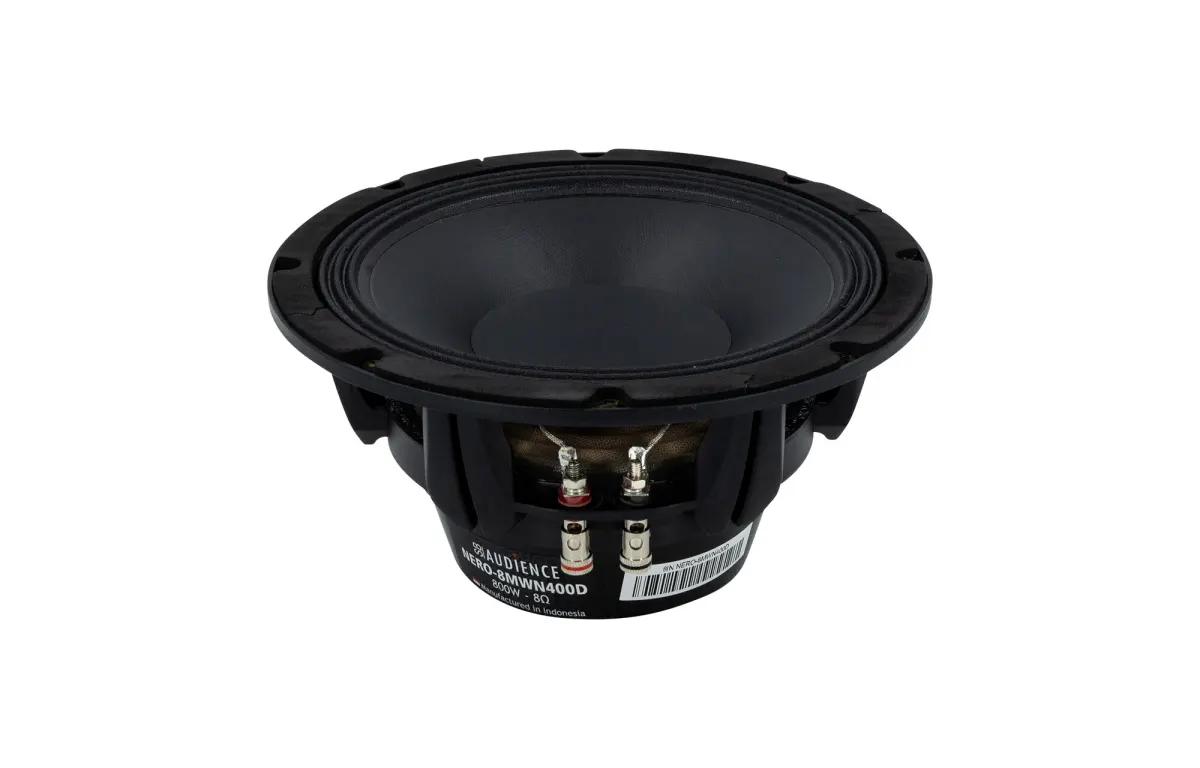

SB Audience NERO-8MWN400D Mid-range Woofer

SB AUDIENCE | Bass mid-bass subwoofer

SB Audience NERO-8MWN400D Mid-range Woofer

Name: SB Audience Audience mélysugárzó | HQ AudioParts
Brand: SB Audience
SKU: NERO-8MWN400D
Price: 70990.00 HUF
Availability: OutOfStock

SKU: NERO-8MWN400D

203.2 mm 8 Ω

Deliver clean, articulate midrange and powerful sub-bass response with this versatile 8-inch driver, ideal for high-fidelity multi-way speaker designs. Its copper voice coil and robust motor system ensure controlled, low-distortion performance across a wide frequency range. The driver achieves a total Q factor (Qts) of 0.38 for flexible enclosure tuning.

70 990 Ft

(55 898 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	203.2 mm
Impedance	8 Ω
Resonance frequency (Fs)	63 Hz
Sensitivity (SPL at 1 m / 2.83 V)	93.5 dB
Power tolerance (max)	800 W

Maximum linear deflection (Xmax)	6.7 mm
Total Q (Qts)	0.38
Electromagnetic Q (Qes)	0.41
Mechanical Q (Qms)	4.07
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	0.25 mH
BL product (BL)	11.9 T·m
The surface area of the cone (Sd)	208.7 cm²
Equivalent volume (Iron)	13.9 l
Mechanical compliance of the suspension (Cms)	0.23 mm/N
Drive mechanical losses (RMS)	2.75 kg/s
Woofer type	DL200 Audio DAC
Surround material	Fabric
Voice coil diameter	60.6 mm
Voice coil carrier	Till
Voice coil wire material	Copper
Basket / frame material	Aluminum
Subwoofer Series	SB Audience Nero Series
Dimensions (mm)	208 mm
Screw head diameter	195 mm
Diameter of the baffle cutout	177.2 mm
# Mounting holes	8
Diameter of the access opening	5.5 mm
Depth	106.8 mm

The SB Audience NERO-8MWN400D is a meticulously engineered 8-inch driver that seamlessly bridges the gap between articulate midrange reproduction and authoritative sub-bass performance. Designed for discerning audio enthusiasts, this versatile transducer excels in high-fidelity multi-way loudspeaker systems, delivering a level of clarity and dynamic impact that elevates any listening experience.

Ideal for use in both two-way and three-way designs, the NERO-8MWN400D serves as a dedicated midrange driver or a capable subwoofer in compact enclosures. Its balanced performance makes it equally suited to home hi-fi setups, studio monitors, and custom automotive audio installations where space is at a premium but sonic accuracy is paramount. Whether reproducing delicate vocal nuances or driving the low-end foundation of a track, this driver maintains composure and precision.

At the heart of the NERO-8MWN400D lies a copper voice coil wound on a robust former, ensuring efficient heat dissipation and low power compression. With a sensitivity of 93.5 dB and a total Q factor of 0.38, it offers excellent transient response and controlled bass extension. The generous 6.7 mm linear excursion (Xmax) allows for high output levels, while the low voice coil inductance of 0.25 mH preserves detail across the frequency range. The driver’s mechanical design, featuring eight mounting holes and a 177.2 mm cutout diameter, simplifies integration into existing baffles.

Combining refined engineering with versatile application, the SB Audience NERO-8MWN400D is a compelling choice for builders seeking a driver that delivers both musicality and power.
