SB Acoustics SB17NRX2L35-8 Bass-midwoofer

SB ACOUSTICS | Mid-bass driver

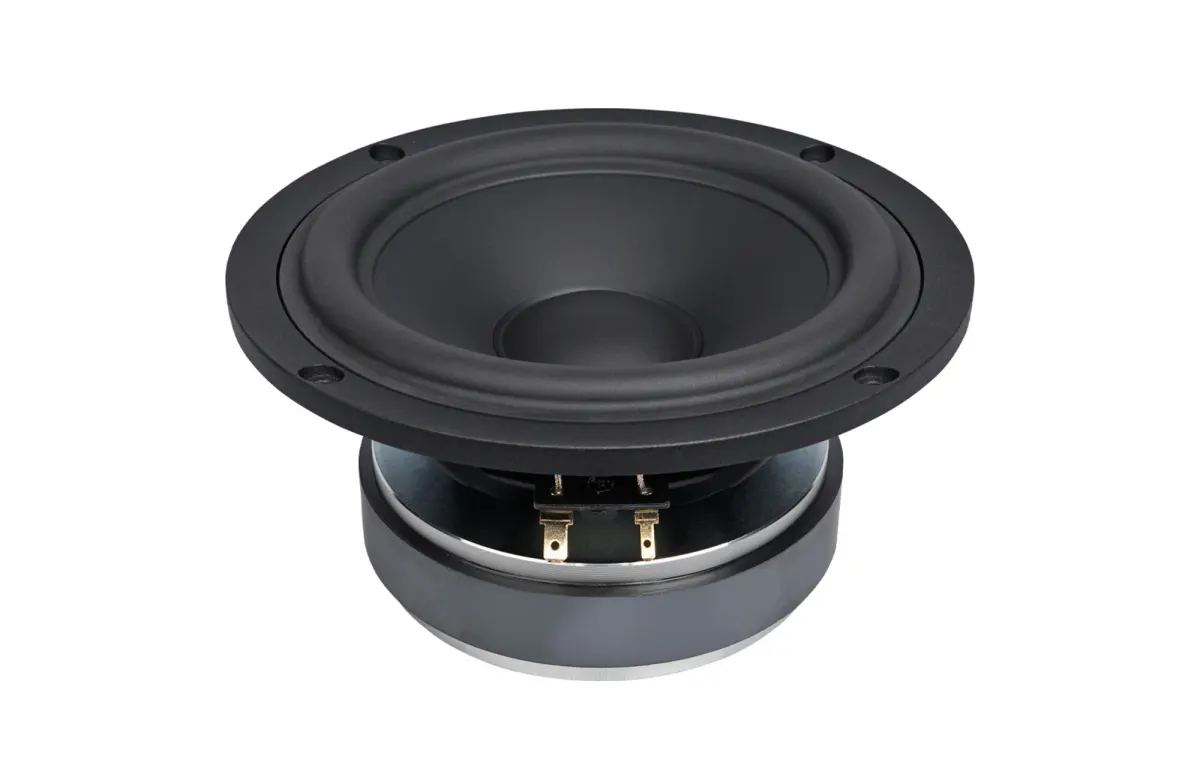

SB Acoustics SB17NRX2L35-8 Bass-midwoofer

Name: SB Acoustics Acoustics mélysugárzó | HQ AudioParts
Brand: SB Acoustics
SKU: SB17NRX2L35-8
Price: 31990.00 HUF
Availability: LimitedAvailability

SKU: SB17NRX2L35-8

37.8 Hz 4.8 mm

Achieve tight, controlled bass in a compact sealed or vented enclosure with this versatile 8-inch subwoofer/midrange driver. It combines a low 37.8 Hz resonance frequency with a total Q factor of 0.28 for accurate, low-distortion performance.

31 990 Ft

(25 189 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 2 pcs Aug 6.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Resonance frequency (Fs)	37.8 Hz
Maximum linear deflection (Xmax)	4.8 mm
Total Q (Qts)	0.28
Electromagnetic Q (Qes)	0.3
Mechanical Q (Qms)	4.55

DC resistance (Re)	5.7 Ω
Voice coil inductance (L_e)	0.16 mH
BL product (BL)	7.84 T·m
The surface area of the cone (Sd)	118 cm²
Equivalent volume (Iron)	26.1 l
Mechanical compliance of the suspension (Cms)	1.32 mm/N

The SB Acoustics SB17NRX2L35-8 is a versatile 8-inch subwoofer and midrange driver engineered to deliver exceptional performance across a wide frequency range. This driver is ideal for audiophiles and DIY enthusiasts seeking tight, controlled bass in compact sealed or vented enclosures, as well as those building high-quality two-way or three-way speaker systems where accurate midbass reproduction is essential. Its low resonance frequency and precise transient response make it equally suited for home theatre subwoofers or high-fidelity stereo setups.

Technically, this driver features a low resonance frequency of 37.8 Hz and a total Q factor of 0.28, ensuring excellent low-frequency extension and damping for clean, articulate bass. The mechanical Q of 4.55 and electrical Q of 0.3 contribute to a well-controlled response, while the 4.8 mm linear excursion (Xmax) allows for significant output without distortion. With a DC resistance of 5.7 ohms and a BL product of 7.84, the motor system provides strong, efficient power handling. The equivalent volume (Vas) of 26.1 litres and cone area (Sd) of 118 cm² further define its suitability for compact enclosures. The SB Acoustics SB17NRX2L35-8 combines precision engineering with robust build quality, making it a reliable choice for demanding audio applications.
