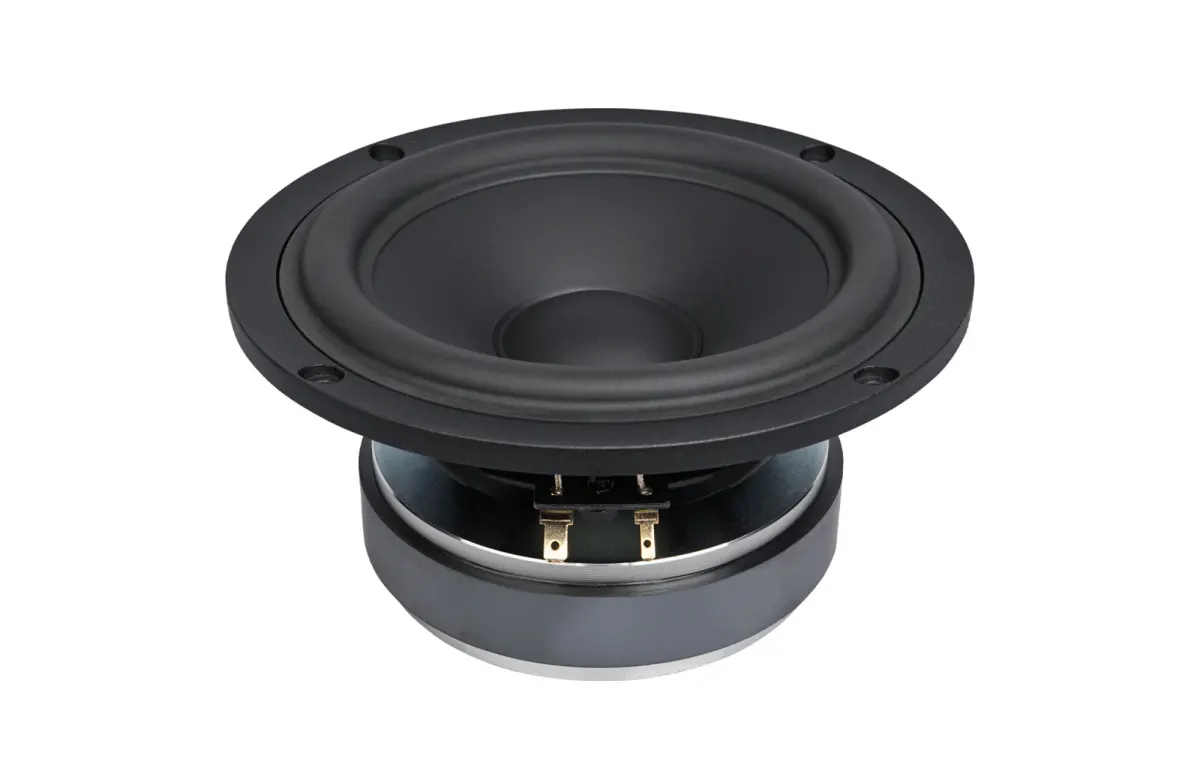

SB Acoustics SB17NRX2L35-4 Bass-midwoofer

SB ACOUSTICS | Bass mid-bass subwoofer

SB Acoustics SB17NRX2L35-4 Bass-midwoofer

Name: SB Acoustics Acoustics mélysugárzó | HQ AudioParts
Brand: SB Acoustics
SKU: SB17NRX2L35-4
Price: 31990.00 HUF
Availability: LimitedAvailability

SKU: SB17NRX2L35-4

41 Hz 4.8 mm

Achieve tight, controlled bass in your compact enclosure with this high-performance subwoofer. It delivers a low total Q factor of 0.25 for accurate transient response. The maximum linear excursion is 4.8 mm.

31 990 Ft

(25 189 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Resonance frequency (Fs)	41 Hz
Maximum linear deflection (Xmax)	4.8 mm
Total Q (Qts)	0.25
Electromagnetic Q (Qes)	0.26
Mechanical Q (Qms)	4.97

DC resistance (Re)	3.1 Ω
Voice coil inductance (L_e)	0.14 mH
BL product (BL)	6.45 T·m
The surface area of the cone (Sd)	118 cm²
Moving mass with air load (Mms)	13.5 g
Mechanical compliance of the suspension (Cms)	1.1 mm/N

The SB Acoustics SB17NRX2L35-4 is a high-performance bass and mid-bass subwoofer engineered to deliver tight, controlled low-frequency reproduction. Designed for audiophiles and DIY enthusiasts, this driver excels in compact sealed enclosures where precise, articulate bass is paramount. Its low total Q factor of 0.25 ensures exceptional transient response, making it ideal for critical listening environments such as home theatre systems, high-fidelity stereo setups, or custom loudspeaker projects where accuracy and speed are valued over sheer boom.

Technically, the SB17NRX2L35-4 features a maximum linear excursion of 4.8 mm, supported by a robust motor system with a BL product of 6.45. The resonance frequency sits at 41 Hz, while the moving mass of 13.5 grams and suspension compliance of 1.1 mm/N contribute to its agile performance. Electrical parameters include a DC resistance of 3.1 ohms and a voice coil inductance of just 0.14 mH, ensuring minimal distortion. The total Q of 0.25, combined with a mechanical Q of 4.97 and electrical Q of 0.26, guarantees excellent damping and control. With an effective cone area of 118 cm², this subwoofer delivers authoritative, clean bass that integrates seamlessly into any high-quality audio system.
