PURIFI | Bass mid-bass subwoofer

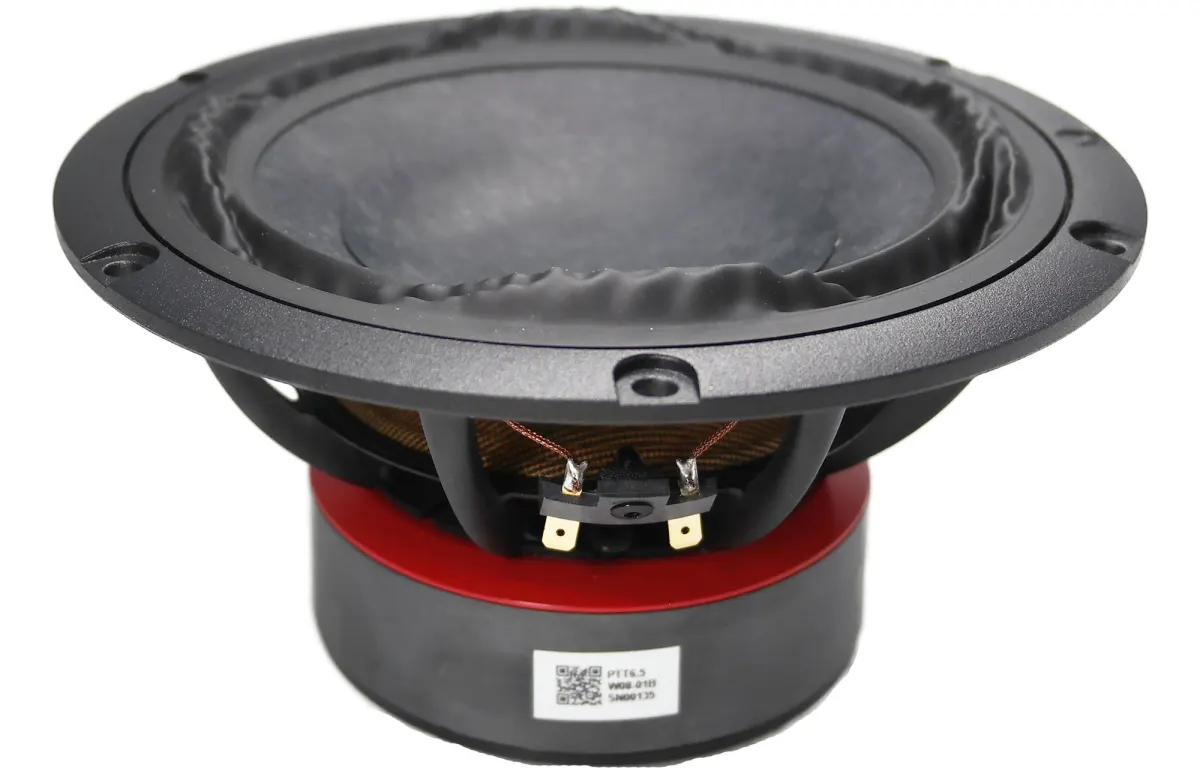

PURIFI PTT6.5X08-NFA-01 Bass-midwoofer

Name: PURIFI PTT6.5X08-NFA-06 mélysugárzó 5″ | HQ AudioParts
Brand: PURIFI
SKU: PTT6.5X08-NFA-06
Price: 167890.00 HUF
Availability: LimitedAvailability

SKU: PTT6.5X08-NFA-06

165.1 mm 8 Ω

Achieve exceptionally clean bass and midrange reproduction with vanishingly low distortion, thanks to the advanced motor and cone design. This 6.5-inch long-throw driver delivers a linear excursion of 10 millimetres and a total Q factor of 0.34 for precise, controlled response.

167 890 Ft

(132 197 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. 2 pcs júl. 9.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	165.1 mm
Impedance	8 Ω
Resonance frequency (Fs)	31 Hz
Sensitivity (SPL at 1 m / 2.83 V)	86.9 dB
Power tolerance (max)	250 W

Continuous program performance	80 W
Maximum linear deflection (Xmax)	10 mm
Total Q (Qts)	0.34
Electromagnetic Q (Qes)	0.32
Mechanical Q (Qms)	6.6
DC resistance (Re)	6 Ω
Voice coil inductance (L_e)	0.53 mH
BL product (BL)	9.5 T·m
The surface area of the cone (Sd)	132.7 cm²
Equivalent volume (Iron)	26.4 l
Moving mass with air load (Mms)	24.4 g
Mechanical compliance of the suspension (Cms)	1.06 mm/N
Drive mechanical losses (RMS)	0.72 kg/s
Volume of displacement (Vd)	132.7 cm³
Woofer type	VMV D1se MQA Hi-End Audio DAC with Bluetooth 5.0 AptX
Membrane material	Proprietary fiber blend
Surround material	Rubber
Voice coil diameter	39 mm
Voice coil carrier	Fiberglass
Voice coil wire material	Aluminum
Magnetic material	Ferromagnetic
Basket / frame material	Cast aluminum
Dimensions (mm)	176 mm
Screw head diameter	166 mm
Diameter of the baffle cutout	145 mm
# Mounting holes	6
Diameter of the access opening	5.1 mm
Depth	90.2 mm

The PURIFI PTT6.5X08-NFA-06 6.5-inch ultra-low-distortion long-throw driver represents a significant leap forward in transducer engineering, delivering exceptionally clean bass and midrange reproduction with vanishingly low distortion. Designed for the most discerning audio enthusiasts, this 8-ohm driver excels in both two-way and multi-way loudspeaker systems, as well as dedicated subwoofer applications where precision and clarity are paramount.

This driver is ideally suited for high-end home audio, studio monitoring, and custom installation projects where accurate sound reproduction is non-negotiable. Its extended linear excursion and advanced motor system make it particularly effective in sealed and ported enclosures, providing deep, articulate bass that remains controlled even at high output levels. The midrange performance is equally impressive, offering a natural and detailed presentation that brings vocals and instruments to life.

Technically, the PTT6.5X08-NFA-06 features a linear excursion (Xmax) of 10mm, with a displacement volume (Vd) of 132.7cc, ensuring substantial air movement. The total Q factor (Qts) of 0.34, combined with a low DC resistance (Re) of 6 ohms and a sensitivity of 86.9dB SPL at 2.83V/1m, allows for efficient power handling and seamless integration into a variety of crossover designs. The voice coil inductance (Le) of 0.53mH and low electromagnetic Q (Qes) of 0.32 contribute to its exceptional transient response and low distortion characteristics.

In summary, the PURIFI PTT6.5X08-NFA-06 is a reference-grade driver that sets new standards for low-distortion performance, making it an outstanding choice for those who demand the very best in audio reproduction.
