PRV AUDIO | Compression driver

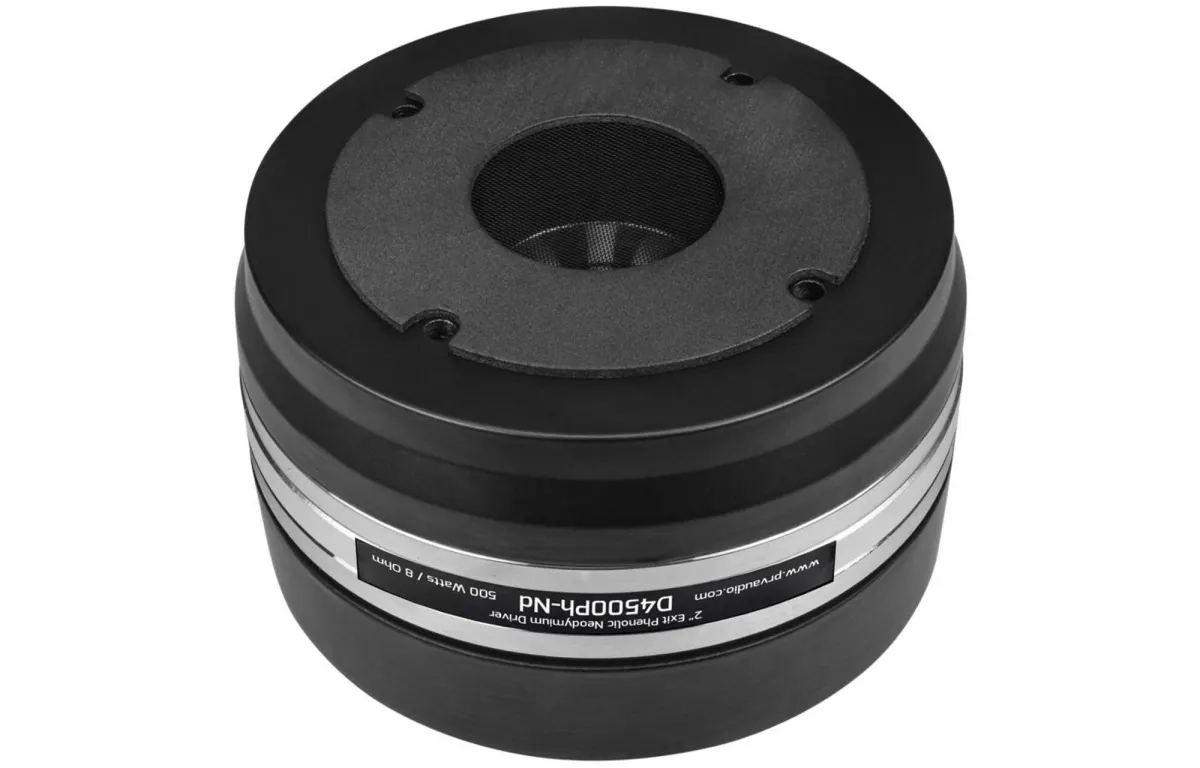

PRV Audio D4500Ph-Nd Compression Driver

Name: PRV Audio PRV Audio D4500Ph-Nd kompressziós | HQ AudioParts
Brand: PRV Audio
SKU: D4500Ph-Nd
Price: 122990.00 HUF
Availability: LimitedAvailability

SKU: D4500Ph-Nd

8 Ω 11 dB

Achieve high-output professional sound reinforcement with this 8-ohm compression driver, designed for demanding mid-range and high-frequency applications. Its 50 mm phenolic resin diaphragm delivers clear, articulate audio reproduction. The recommended crossover frequency is 6 kHz.

122 990 Ft

(96 843 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 4 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Impedance	8 Ω
Sensitivity (SPL at 1 m / 2.83 V)	11 dB
Tweeter type	Compression drive
Membrane material	Phenolic resin
Diameter of the cone / dome	50 mm

Dimensions (mm)	155 mm
Depth	112.5 mm
Mounting type	M6 x 102 mm
Recommended cutting frequency	6 Hz

The PRV Audio D4500Ph-Nd Compression Driver is a high-performance compression driver engineered for professional sound reinforcement. Designed to deliver exceptional output and clarity, this driver is ideal for demanding mid-range and high-frequency applications, including live sound systems, fixed installations, and custom speaker arrays. Its robust construction ensures reliable performance in both touring and permanent setups, making it a versatile choice for audio professionals seeking consistent, high-quality sound.

Featuring a 50 mm phenolic resin diaphragm, the D4500Ph-Nd provides a smooth, natural response with excellent transient detail. With an impedance of 8 ohms and a sensitivity of 111 dB SPL at 1 metre with 2.83V input, it achieves high output levels with modest amplifier power. The recommended crossover frequency of 6 kHz ensures seamless integration into multi-way systems. The driver’s mounting type uses M6 x 102 mm bolts, and its overall dimensions are 155 mm in diameter with a depth of 112.5 mm, allowing for straightforward installation in compatible horns and waveguides.

Built with precision and durability in mind, this compression driver from PRV Audio is a reliable choice for engineers and installers who demand uncompromising performance in professional audio environments.
