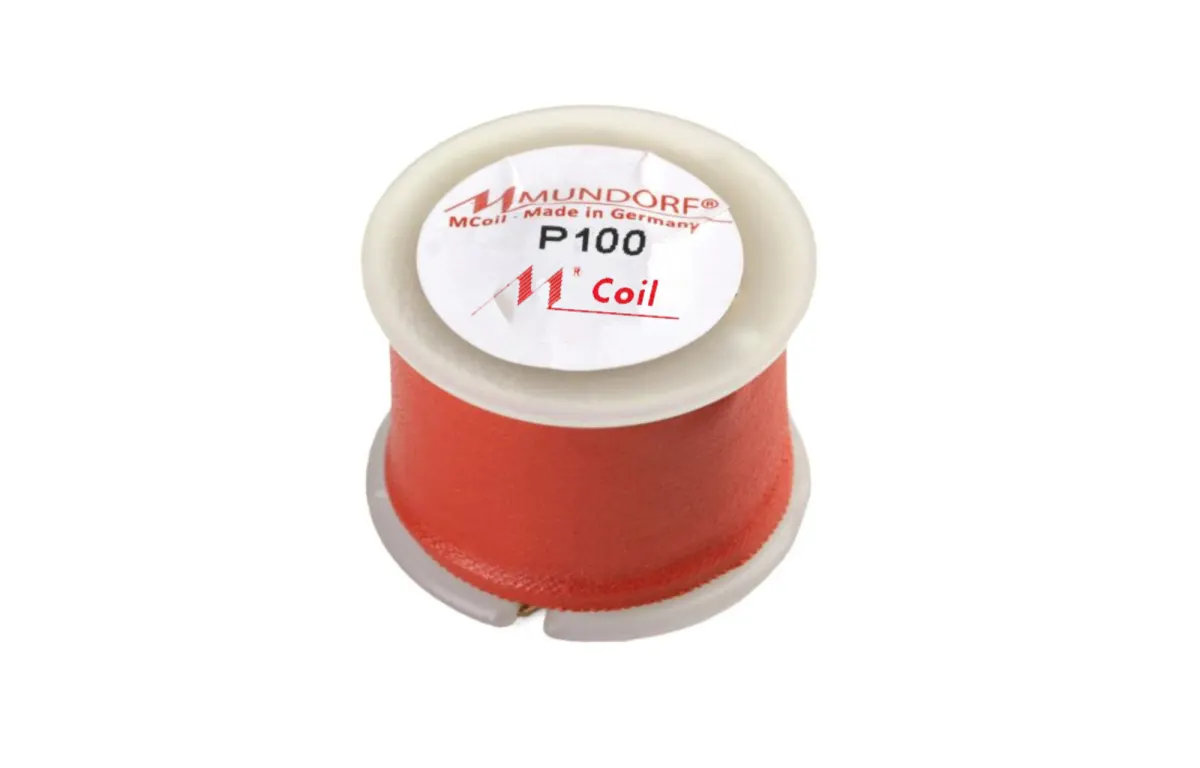

Mundorf P100-4,7 | 4,7 mH | 0,80 Ω | 3% | 18 AWG

MUNDORF | Iron core rolls

Mundorf P100-4,7 | 4,7 mH | 0,80 Ω | 3% | 18 AWG

Name: Mundorf tekercs 4,7 mH | HQ AudioParts
Brand: Mundorf
SKU: VP100-4,7
Availability: LimitedAvailability

SKU: VP100-4,7

4.7 mH 0.8 Ω

Achieve precise crossover filtering in high-end loudspeaker designs with this ferrite-core coil. The Mundorf P100-4.7 offers reliable performance for audio applications. It features a 4.7 mH inductance with a ±3% tolerance and a DC resistance of 0.80 Ω.

10 990 Ft

(8 654 Ft + VAT)

Saját raktár Out of stock

Külső raktár 2. 9 pcs júl. 9.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Induktivitás

4.7

0.27 17 / 17 4.7

0.27 0.33 0.39 0.47 0.56 0.68 0.82 1 1.2 1.5 1.8 2 2.2 2.7 3.3 3.9 4.7

Technical data

Inductance	4.7 mH
DC Resistance (DCR)	0.8 Ω
Power Handling (RMS)	3 W
Dimensions (mm)	45 x 30 mm
Tolerance	±3%

Wire diameter	1.02 mm
Coil type	Ferrite-core

The Mundorf P100-4.7 is a premium ferrite-core coil engineered to deliver precise and reliable crossover filtering in high-end loudspeaker designs. As part of Mundorf’s renowned P100 series, this component is ideal for audiophiles and DIY enthusiasts seeking to refine their sound systems with accurate frequency separation and minimal signal degradation. Whether you are building custom speakers, upgrading existing crossovers, or restoring vintage audio equipment, this coil ensures consistent performance across demanding applications.

Technically, the coil offers an inductance of 4.7 mH with a tight tolerance of ±3%, guaranteeing dependable filtering accuracy. It features a DC resistance of just 0.80 Ω, which helps maintain efficiency and reduce power loss in the circuit. The 18 AWG wire (1.02 mm diameter) is wound on a ferrite core, providing excellent magnetic properties and compact dimensions of 45 x 30 mm for easy integration into tight enclosures. With an RMS power tolerance of 3, it handles moderate power levels without overheating, making it suitable for a wide range of speaker configurations.

In summary, the Mundorf P100-4.7 combines robust construction with precise electrical characteristics, offering a reliable solution for achieving clean, natural sound reproduction in your audio projects.
