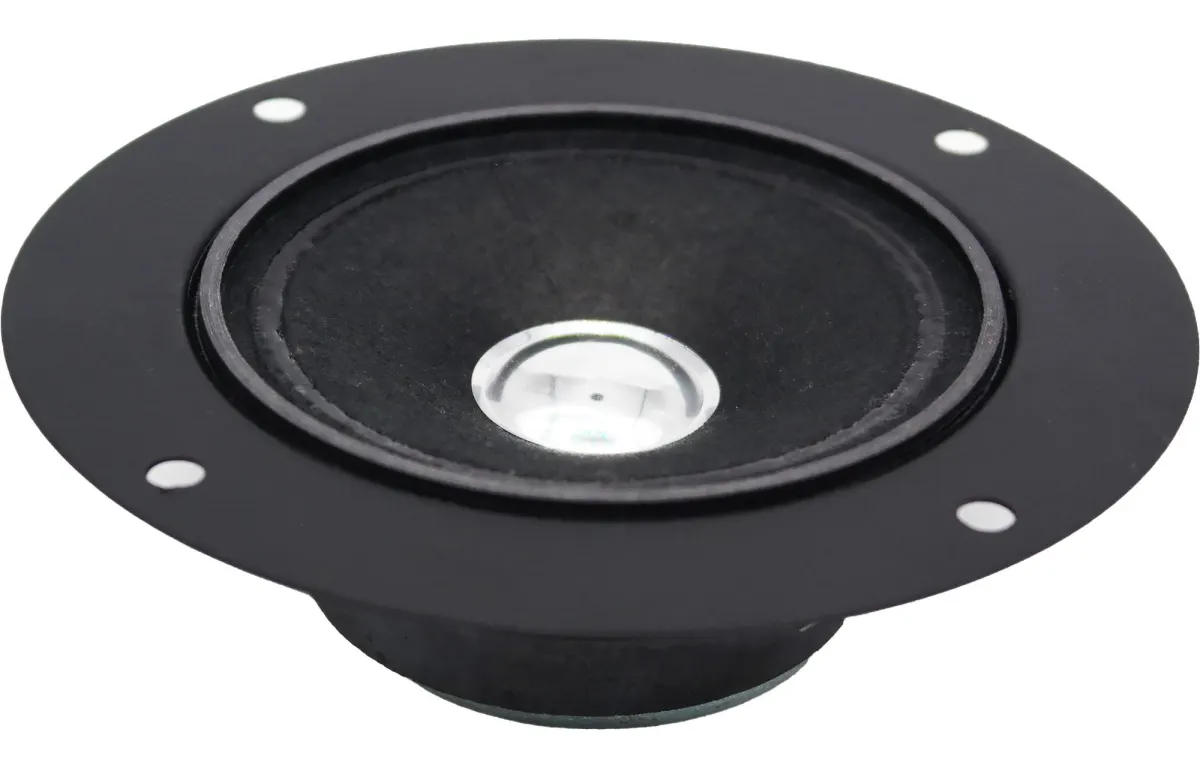

HT-22/8 2'' Replacement Cone Tweeter

The Monacor HT-22/8 2'' Replacement Cone Tweeter is a high-quality dome tweeter designed to restore and enhance the high-frequency performance of your speaker systems. Whether you are repairing vintage loudspeakers, upgrading existing designs, or building custom enclosures, this tweeter delivers the clarity and detail needed for accurate sound reproduction. It is particularly well-suited for hi-fi applications, studio monitors, and public address systems where reliable treble extension is essential.

Featuring a 51mm (2-inch) cone dome diameter, the HT-22/8 offers a sensitivity of 91 dB SPL at 1 metre with a 2.83V input, ensuring efficient power handling and clear output even at moderate amplifier levels. With an impedance of 8 ohms and a maximum power tolerance of 20 watts, it integrates seamlessly into a wide range of crossover designs. The recommended crossover frequency is 2,500 Hz with a 12 dB/octave slope, providing a smooth transition from midrange drivers. Its resonance frequency (Fs) of 15 Hz and a depth of just 28 mm allow for flexible mounting in compact cabinets. The cut-out diameter is 80 mm, with overall dimensions of 90 mm, making installation straightforward in most standard tweeter housings.

This replacement tweeter is a practical and cost-effective solution for restoring high-frequency clarity to your speaker system, delivering reliable performance and consistent sound quality.
