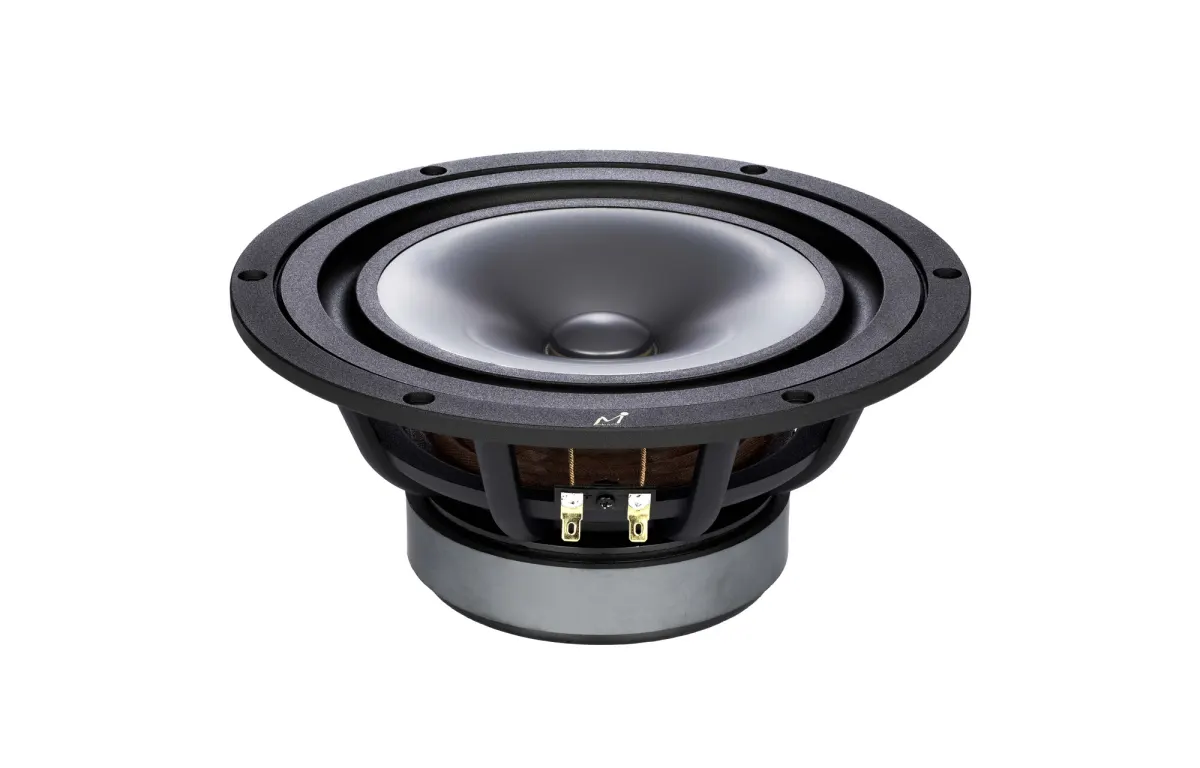

Markaudio MA200-M Grey Fullrange Driver

The Markaudio MA200-M Grey Fullrange Driver represents a masterful fusion of engineering precision and sonic purity, designed to deliver a coherent, full-bandwidth listening experience from a single drive unit. By eliminating the need for separate tweeters and woofers, this full-range driver simplifies speaker construction while maintaining exceptional audio integrity.

Ideal for compact speaker designs, high-fidelity home audio systems, and bespoke DIY projects, the MA200-M Grey excels in applications where space is at a premium but sound quality cannot be compromised. It is particularly suited to open-baffle enclosures, small ported cabinets, and even horn-loaded configurations, offering remarkable versatility for the discerning audiophile or professional installer.

Technically, this driver features a nominal diameter of 203.2 mm with a mounting cut-out of 189 mm and a depth of just 97 mm, ensuring straightforward integration. The total Q factor of 0.3455, derived from a mechanical Q of 2.239 and an electromagnetic Q of 0.4086, provides controlled, well-damped bass response. With a sensitivity of 90.26 dB SPL at 1m/2.83V and a maximum linear excursion of 9 mm, it delivers dynamic, articulate sound across the frequency range. The 6.8 ohm DC resistance and low voice coil inductance of 0.2283 mH further enhance clarity and efficiency.

In summary, the Markaudio MA200-M Grey Fullrange Driver offers a refined, single-driver solution for those seeking uncompromised full-range audio in a compact, high-performance package.
