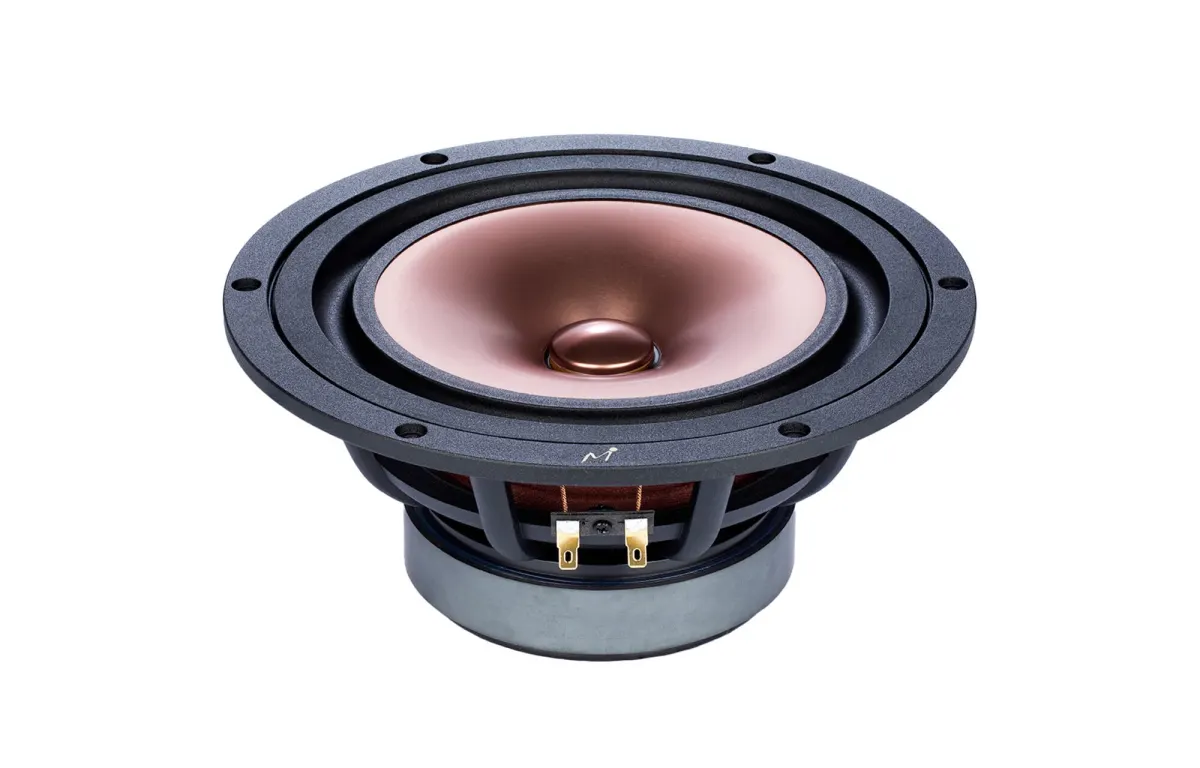

Markaudio MA200-M Copper Fullrange Driver

The Markaudio MA200-M Copper Fullrange Driver represents a masterful blend of engineering and material science, delivering authentic full-range audio from a single, elegantly designed transducer. This full-range driver is the ideal solution for audiophiles and DIY enthusiasts seeking to construct compact loudspeakers, high-efficiency horn systems, or open-baffle designs without the complexity of multi-driver crossovers. Its versatility makes it equally suited for near-field monitoring, vintage radio restorations, or minimalist two-channel setups where space is at a premium.

At the heart of the MA200-M Copper lies a carefully optimised motor system, featuring a copper voice coil that ensures low inductance (0.2283 mH) and excellent thermal management. With a sensitivity of 90.26 dB SPL at 1m/2.83V, this driver pairs beautifully with low-power valve amplifiers. The total Q factor of 0.3455 indicates a well-damped response, while the mechanical Q of 2.239 and electromagnetic Q of 0.4086 combine to deliver controlled, articulate bass. An impressive 9 mm of linear excursion (Xmax) allows for dynamic playback, and the 203.2 mm nominal diameter fits neatly into a 189 mm cutout. The six-bolt fixing pattern on a 223.5 mm pitch circle ensures secure mounting, while the 97 mm depth accommodates compact enclosures. With a DC resistance of 6.8 ohms, this driver is a refined choice for purists seeking coherent, single-source sound.
