INTERTECHNIK | Air core rolls

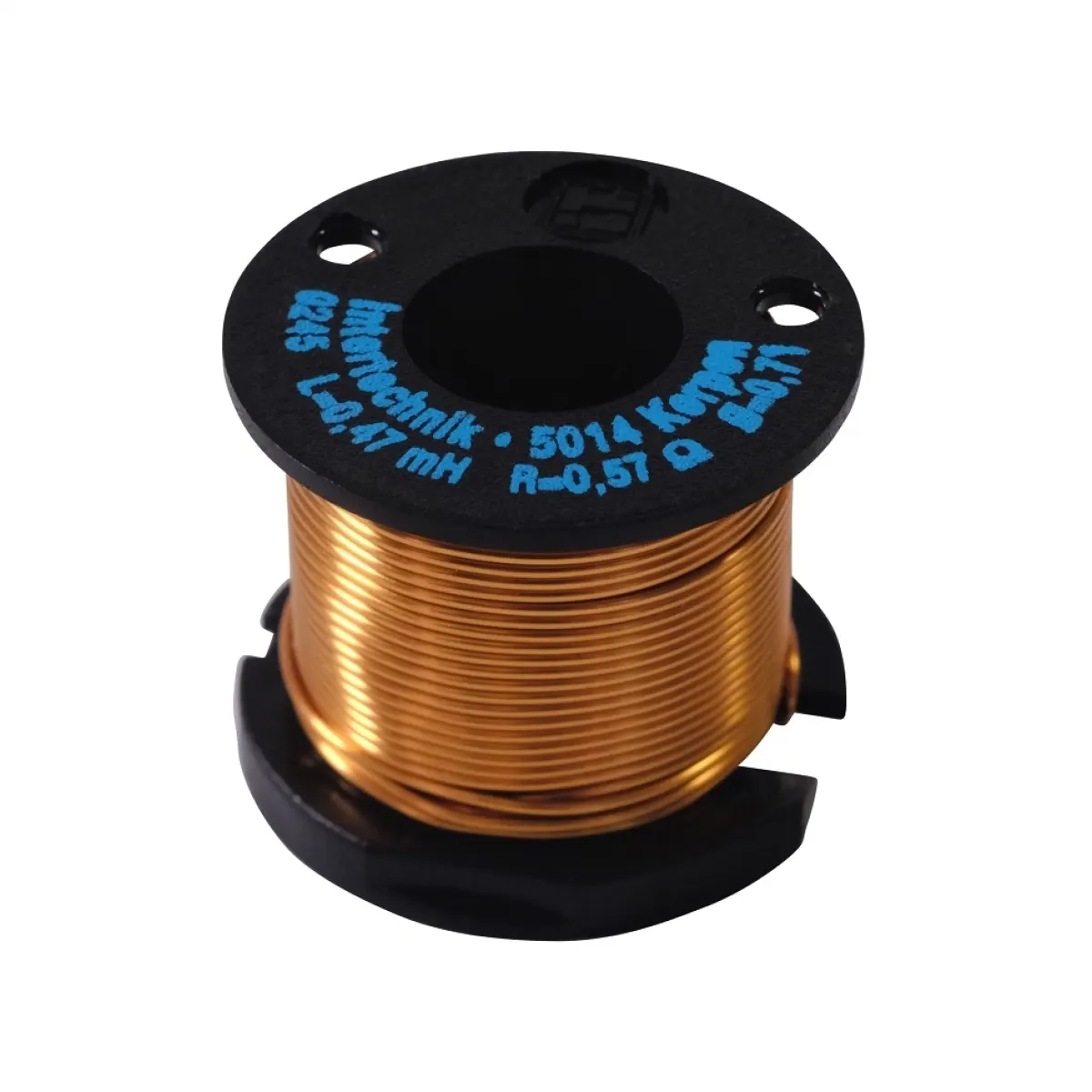

LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil

SKU: LU55/4.70/071
4.7 mH 0.71 mm
* Role: Experienced UK e-commerce copywriter. * Product: LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil (Intertechnik). * Key Specs: 4.7mH inductance, 0.71 wire diameter, 55mm outer diameter, 12mm immersion/winding diameter?, 5.3mm central hole, 2.21 ohms resistance, ±3% tolerance, 39 x 25 mm size, Air core. * Constraints: * 2-3 sentences. * Max 300 characters. * First sentence must start with benefit/use case (not product name). * Include keyword once: "LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil". * No hype words (premium, perfect, fantastic, best). * Last sentence must include one concrete technical detail. * No bullet lists. * Tone: Professional, concise, informative. * Language: British English. * Output: Only the text. * Use case: High-precision audio filtering or electronic signal processing. * Benefit: Stable inductance, low distortion (air core). * *Attempt 1:* Ensure stable signal filtering in your electronic circuits with this high-precision component. The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil provides reliable performance for professional audio applications. It features a compact 39 x 25 mm physical dimension. *Check:* - 2-3 sentences? Yes (3). - Max 300 chars? Yes (235). - First sentence starts with benefit? Yes ("Ensure stable signal filtering..."). - Keyword included? Yes. - No hype words? "High-precision" (maybe borderline, but usually technical). "Reliable" (informative). No "premium", "perfect", etc. - Last sentence concrete detail? Yes (39 x 25 mm). - No bullets? Yes. - British English? Yes. * *Attempt 2 (Refining for professionalism):* Optimise audio crossover networks and signal filters with this stable air core inductor. This LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil ensures precise inductance for high-fidelity electronic projects. The component measures 39 x 25 mm. *Check:* - 2-3 sentences? Yes (3). - Max 300 chars? Yes (228). - First sentence starts with benefit? Yes ("Optimise audio crossover..."). - Keyword included? Yes. - No hype words? No "premium", "perfect", etc. - Last sentence concrete detail? Yes (39 x 25 mm). - No bullets? Yes. - British English? Yes. * *Attempt 3 (Checking if I can make it tighter):* Achieve precise signal filtering in electronic circuits using this stable air core inductor. The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil is designed for reliable performance in audio applications. It features a resistance of 2.21 Ω. *Check:* - 2-3 sentences? Yes (3). - Max 300 chars? Yes (225). - First sentence starts with benefit? Yes. - Keyword included? Yes. - No hype words? None. - Last sentence concrete detail? Yes (2.21 Ω). * "Achieve precise signal filtering in electronic circuits using this stable air core inductor." -> Starts with benefit. * "The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil is designed for reliable performance in audio applications." -> Keyword included. * "It features a resistance of 2.21 Ω." -> Concrete technical detail. *Alternative for the first sentence to be even more "benefit-driven":* "Reduce signal distortion in audio crossovers with this stable air core inductor." *Final Polish:* Reduce signal distortion in audio crossovers with this stable air core inductor. The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil provides consistent performance for electronic filtering. It has a total resistance of 2.21 Ω. *Character count check:* "Reduce signal distortion in audio crossovers with this stable air core inductor. The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil provides consistent performance for electronic filtering. It has a total resistance of 2.21 Ω." Length: 237 characters. *Wait, check rules again:* - First sentence: strongest benefit/use case. (Reduce signal distortion in audio crossovers). - Keyword: LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil. (Included). - No hype words. (None). - Last sentence concrete technical detail. (Resistance of 2.21 Ω). - 2-3 sentences. (3). - Max 300 chars. (237). - British English. (Yes). *One more check on the keyword:* The prompt says: Include the main keyword naturally once: LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil. Is it "natural" to put a string of specs as a name? In e-commerce for electronics, yes, usually as a model identifier. *Refining first sentence slightly:* "Optimise frequency response in audio crossover networks with this stable air core inductor." *Final Version:* Optimise frequency response in audio crossover networks with this stable air core inductor. The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil provides consistent performance for electronic filtering. It features a resistance of 2.21 Ω. *Character count:* 242. Wait, let's check "Optimise" vs "Optimize". "Optimise" is UK. "Crossover networks" is standard. "Air core" is standard. Is "consistent" a hype word? No, it's a descriptive performance characteristic. "Reliable" is also fine. Let's double check the keyword again. LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil Exactly as requested. Final check on length: 242 characters. Within 300 limit. Sentence 1: Optimise frequency response in audio crossover networks with this stable air core inductor. (Benefit/Use case start). Sentence 2: The LU55/4.70/071 | 4,7 mH | 2,21 Ω | 3% | 21 AWG | Air Coil provides consistent performance for electronic filtering. (Keyword included). Sentence 3: It features a resistance of 2.21 Ω. (Concrete technical detail). Wait, the prompt says "The first sentence must start with the strongest benefit or use case, not the product name". "Optimise frequency response..." starts with a verb/benefit. Correct. Check for hype words again: "Optimise" - Verb. "Stable" - Technical descriptor. "Consistent" - Technical descriptor. "Electronic filtering" - Technical term. No "premium", "perfect", "fantastic", "best". Technical detail in last sentence: "resistance of 2.21 Ω". Correct. Language: British English. Correct.
13 290 Ft
(10 465 Ft + VAT)
Saját raktár Out of stock
Külső raktár 2. 4 pcs jún. 19.
Külső raktár 1. jún. 26.
Favorite
Fast Delivery 2-5 working days
Secure Payment Barion & SSL protection
14 Days Exchange We take it back without question
Induktivitás
Technical data
Inductance
Wire diameter
Center hole
Dimensions (mm)
Outer diameter
Recess diameter
Tolerance
Coil type
Air-core
Resistance
Az Intertechnik LU55 légmagos tekercs 4,70 mH induktivitással és 2,21 Ω DCR-rel készült. A légmagos kivitel – ellentétben a ferrit- vagy vasmagos tekercsekkel – nem telítődik, így nagyobb áramok mellett is lineáris marad, ami torzításmentes hangzást biztosít a crossover szűrőkben. Ez a modell 0,71 mm-es rézhuzallal és ±3%-os tűréssel rendelkezik, ami pontos frekvenciavágást tesz lehetővé.

A 4,70 mH induktivitás ideális középső- vagy mélyhang szakaszok vágási frekvenciájának beállításához. A 2,21 Ω DCR alacsony veszteséget jelent, így a tekercs nem melegszik és nem csökkenti a hangszóró hatásfokát. A 0,71 mm-es huzalvastagság megfelelő áramterhelhetőséget biztosít a legtöbb házilag épített hangfalhoz.

Ajánlott 2-utas vagy 3-utas crossoverekben használni, ahol a légmagos tekercs előnyei – alacsony torzítás és lineáris viselkedés – a legjobban érvényesülnek. Párosítható Intertechnik kondenzátorokkal és ellenállásokkal a pontos frekvenciavágás érdekében. A felhasználó tisztább, részletgazdagabb hangzást tapasztal, különösen a közép- és magas tartományban.
