Dayton Audio Signature SS15-22 DVC Subwoofer

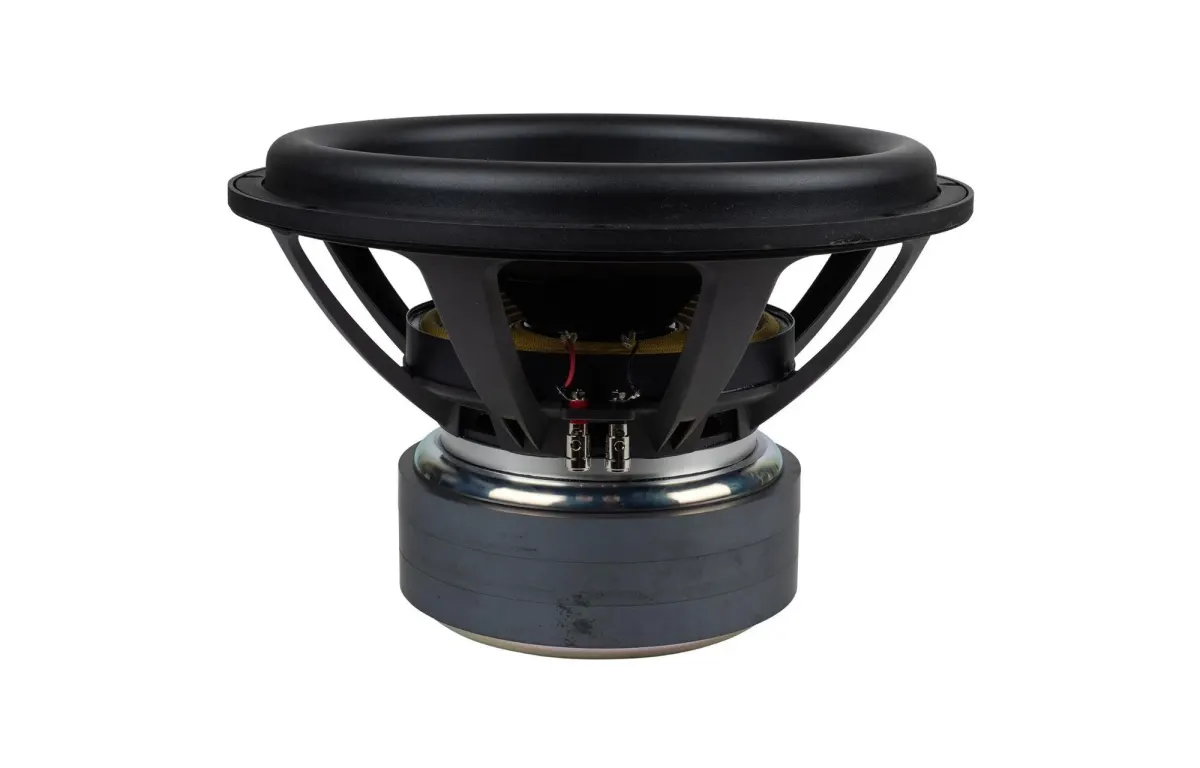

The Dayton Audio SS15-22 Signature Series 15-inch DVC subwoofer represents a formidable addition to any serious audio system, engineered to deliver deep, authoritative bass with exceptional control. With a robust dual voice coil configuration rated at 2 ohms per coil, this driver is ideally suited for high-performance home theatre installations, dedicated music systems, or custom car audio builds where low-frequency extension and accuracy are paramount. Its substantial 22mm linear excursion ensures powerful, distortion-free output, making it an excellent choice for enthusiasts seeking to reproduce the most demanding soundtrack passages or bass-heavy musical genres with precision and impact.

Technically, the SS15-22 is a marvel of engineering. It boasts a sensitivity of 90.6 dB (1m/2.83V) and a total Q factor (Qts) of 0.38, striking a fine balance between tight, controlled response and efficient power handling. The voice coil, wound with copper-clad aluminium wire (CCAW), exhibits a low inductance of 1.9 mH and a DC resistance of 5 ohms, contributing to excellent transient behaviour and thermal stability. The mechanical (Qms: 3.27) and electrical (Qes: 0.44) Q values further underscore its suitability for sealed or ported enclosures. With a displacement volume (Vd) of 1758 cm³ and a mounting depth of 233mm, this 15-inch subwoofer requires a cut-out diameter of 353mm and secures via eight mounting holes on a 371mm bolt circle. Whether for home or mobile use, the Dayton Audio SS15-22 delivers the low-end authority and refinement that discerning listeners demand.
