Dayton Audio MX6-22 Subwoofer
SKU:
MX6-22
165.1 mm
2 Ω
Achieve deep, accurate bass in compact enclosures with this dual voice coil subwoofer. Its 0.33 total Q factor ensures tight, controlled low-frequency response for car or home audio systems. The 151.6 cubic centimetre displacement volume delivers substantial output from a 165mm frame.
33 990 Ft
(26 764 Ft + VAT)
Own warehouse
Out of stock
Külső raktár 2.
Out of stock
Let me know when it's available!
We'll send you an email as soon as the product is back in stock.
Sign up for notifications
Fast Delivery
2-5 working days
Secure Payment
Barion & SSL protection
14 Days Exchange
We take it back without question
Technical data
| Nominal diameter | |
| Impedance | |
| Resonance frequency (Fs) | |
| Sensitivity (SPL at 1 m / 2.83 V) | |
| Total Q (Qts) |
| Electromagnetic Q (Qes) | |
| Mechanical Q (Qms) | |
| DC resistance (Re) | |
| Voice coil inductance (L_e) | |
| BL product (BL) | |
| The surface area of the cone (Sd) | |
| Equivalent volume (Iron) | |
| Mechanical compliance of the suspension (Cms) | |
| Volume of displacement (Vd) | |
| Woofer type | |
| Voice coil diameter | |
| Basket / frame material | |
| Subwoofer Series | |
| Dimensions (mm) | |
| Screw head diameter | |
| Diameter of the baffle cutout | |
| # Mounting holes | |
| Diameter of the access opening | |
| Depth |

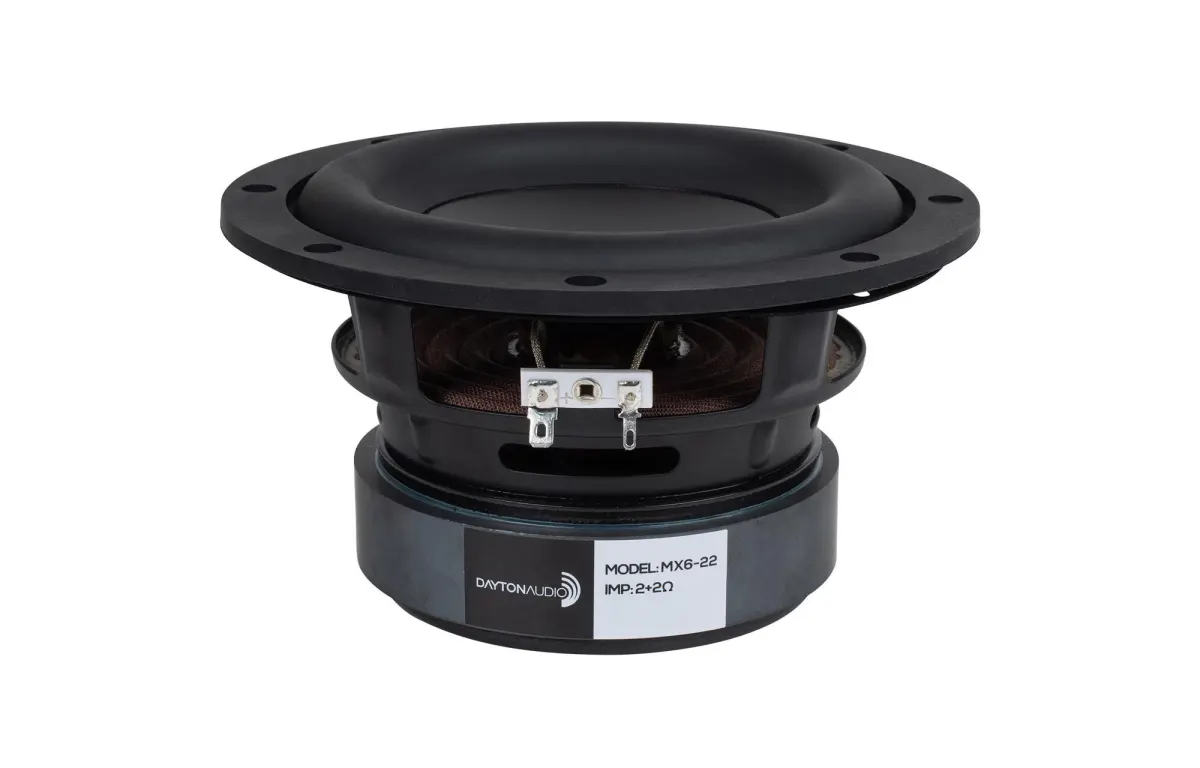

The Dayton Audio MX6-22 Max-X DVC Subwoofer is a precision-engineered bass driver designed to deliver deep, accurate low-frequency performance in compact enclosures. Ideal for both car audio installations and home theatre systems, this subwoofer excels in sealed and small ported cabinets where space is at a premium but bass quality cannot be compromised. Its dual voice coil configuration offers flexible wiring options, making it suitable for a wide range of amplifier setups and impedance matching requirements.
Technically, the MX6-22 features a total Q factor (Qts) of 0.33, ensuring tight, controlled response with minimal overhang—perfect for musical accuracy and impactful movie soundtracks. The mechanical Q (Qms) of 2.99 and electromagnetic Q (Qes) of 0.37 work together to deliver efficient power handling and precise cone control. With a sensitivity of 83 dB SPL at 1m/2.83V and a displacement volume (Vd) of 151.6, this driver moves substantial air for its 6.5-inch nominal diameter. The 4.7-ohm DC resistance and 1.5 mH voice coil inductance further contribute to stable performance. Built with an 8-hole mounting pattern and a 166 mm screw circle diameter, installation is straightforward, while the 107 mm depth and 182 mm overall dimensions allow integration into tight spaces. The Dayton Audio MX6-22 is a robust choice for enthusiasts seeking authoritative bass without sacrificing cabinet size.
Technically, the MX6-22 features a total Q factor (Qts) of 0.33, ensuring tight, controlled response with minimal overhang—perfect for musical accuracy and impactful movie soundtracks. The mechanical Q (Qms) of 2.99 and electromagnetic Q (Qes) of 0.37 work together to deliver efficient power handling and precise cone control. With a sensitivity of 83 dB SPL at 1m/2.83V and a displacement volume (Vd) of 151.6, this driver moves substantial air for its 6.5-inch nominal diameter. The 4.7-ohm DC resistance and 1.5 mH voice coil inductance further contribute to stable performance. Built with an 8-hole mounting pattern and a 166 mm screw circle diameter, installation is straightforward, while the 107 mm depth and 182 mm overall dimensions allow integration into tight spaces. The Dayton Audio MX6-22 is a robust choice for enthusiasts seeking authoritative bass without sacrificing cabinet size.
