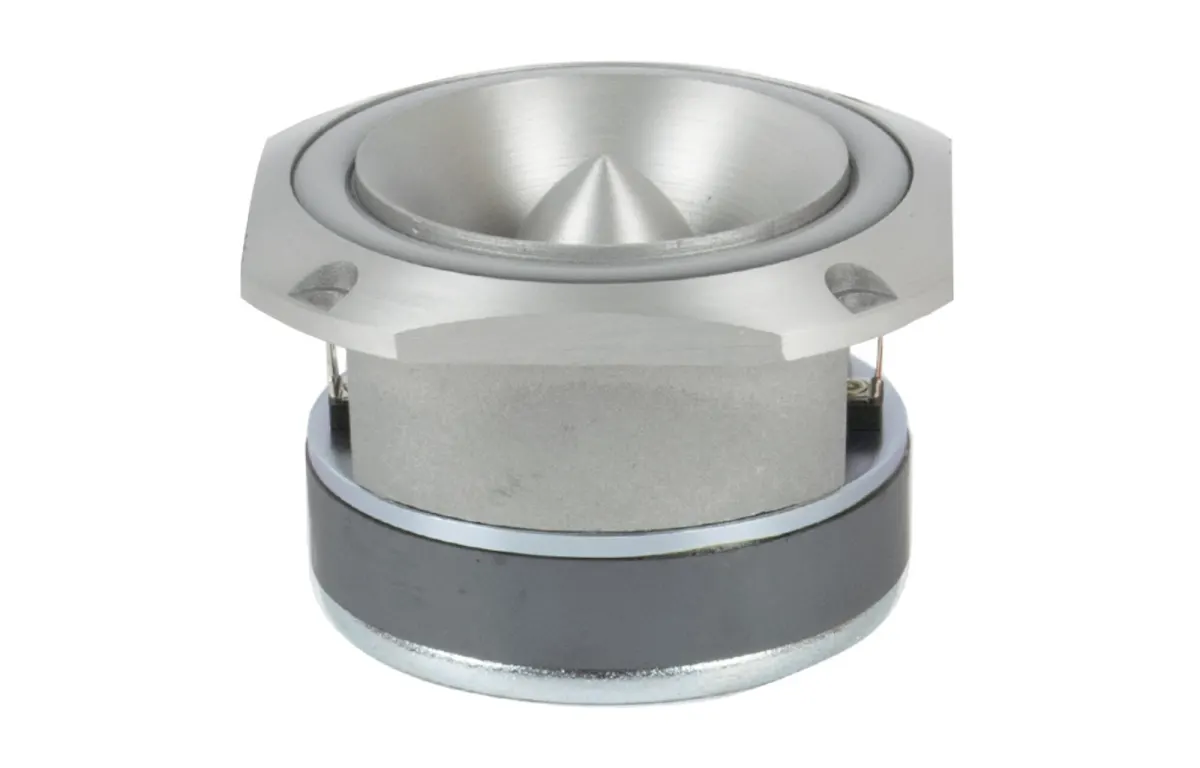

Beyma CP-22 Compression Tweeter

The Beyma CP-22 Compression Tweeter represents a superb choice for those seeking high-efficiency sound reproduction in professional audio systems. As a compression driver from the renowned Beyma brand, this dome tweeter is engineered to deliver exceptional clarity and power, making it an ideal component for demanding applications. Whether you are designing a high-quality public address system, a stage monitor, or a custom loudspeaker for live sound reinforcement, the CP-22 offers the performance and reliability required to meet professional standards. Its robust construction ensures consistent operation even under continuous use, making it a dependable addition to any serious audio setup.

From a technical standpoint, the Beyma CP-22 boasts an impressive sensitivity of 107 dB SPL at 1 metre with 2.83V input, ensuring that every watt of amplifier power is used efficiently to produce clear, detailed high frequencies. The tweeter features a 38.1 mm dome diameter and a nominal impedance of 8 ohms, with a DC resistance of 6.3 ohms. It can handle a maximum power of 50 watts, providing ample headroom for dynamic passages. The unit is designed for flush mounting with a cut-out diameter of 92 mm and an overall depth of 71 mm, secured by four 5.5 mm screws. With overall dimensions of 102 x 102 mm, this compression driver is compact yet powerful, offering a seamless integration into professional enclosures for superior sound projection.
