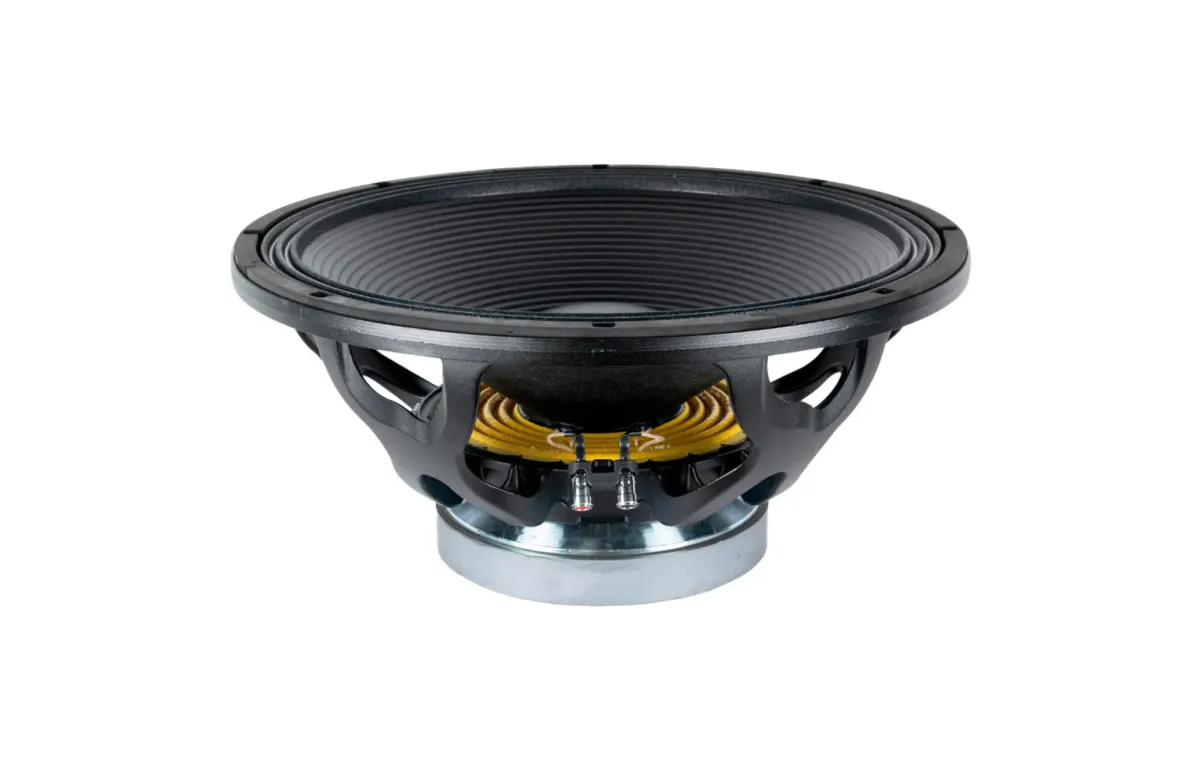

Beyma 18QLEX1600Fe Subwoofer
SKU:
18QLEX1600Fe
457.2 mm
8 Ω
Achieve deep, authoritative bass in large-format sound systems with this high-excursion 18-inch driver. Its 97 dB sensitivity ensures efficient power handling, while the total Q factor of 0.32 enables precise low-frequency control in vented enclosures.
148 390 Ft
(116 843 Ft + VAT)
Own warehouse
Out of stock
Külső raktár 2.
3 pcs
Aug 6.
Fast Delivery
2-5 working days
Secure Payment
Barion & SSL protection
14 Days Exchange
We take it back without question
Technical data
| Nominal diameter | |
| Impedance | |
| Resonance frequency (Fs) | |
| Sensitivity (SPL at 1 m / 2.83 V) | |
| Continuous program performance |
| Maximum linear deflection (Xmax) | |
| Total Q (Qts) | |
| Electromagnetic Q (Qes) | |
| Mechanical Q (Qms) | |
| DC resistance (Re) | |
| Voice coil inductance (L_e) | |
| BL product (BL) | |
| The surface area of the cone (Sd) | |
| Equivalent volume (Iron) | |
| Mechanical compliance of the suspension (Cms) | |
| Drive mechanical losses (RMS) | |
| Volume of displacement (Vd) | |
| Woofer type | |
| Voice coil diameter | |
| Dual voice coil | |
| Voice coil carrier | |
| Subwoofer Series | |
| Dimensions (mm) | |
| Screw head diameter | |
| Diameter of the baffle cutout | |
| # Mounting holes | |
| Diameter of the access opening | |
| Depth |
The Beyma 18QLEX1600Fe is a formidable 18-inch subwoofer driver engineered to deliver deep, authoritative bass for the most demanding professional audio environments. As a high-excursion transducer from a renowned Spanish manufacturer, it is ideally suited for large-format sound reinforcement systems, nightclubs, touring line arrays, and high-end home cinema installations where visceral low-frequency impact is paramount. Its robust construction and carefully optimised parameters make it an excellent choice for both vented and horn-loaded enclosures, providing the solid foundation required for live music, electronic dance events, and cinematic experiences.
Technically, this driver boasts a 97 dB sensitivity (1m/2.83V), ensuring efficient conversion of amplifier power into acoustic output. The total Q factor (Qts) of 0.32 indicates a well-damped alignment, enabling tight, controlled bass reproduction. With a maximum linear excursion (Xmax) of 13 mm and a displacement volume (Vd) of 1631 cm³, the 18QLEX1600Fe can move substantial air, generating impressive SPL levels. The voice coil inductance (Le) of 1.75 mH and a DC resistance (Re) of 5.2 ohms contribute to stable performance. A high mechanical Q (Qms) of 10.5 and low electromagnetic Q (Qes) of 0.33 further refine its response. Built to last, this subwoofer is the definitive choice for professionals seeking uncompromising low-end power and precision.
Technically, this driver boasts a 97 dB sensitivity (1m/2.83V), ensuring efficient conversion of amplifier power into acoustic output. The total Q factor (Qts) of 0.32 indicates a well-damped alignment, enabling tight, controlled bass reproduction. With a maximum linear excursion (Xmax) of 13 mm and a displacement volume (Vd) of 1631 cm³, the 18QLEX1600Fe can move substantial air, generating impressive SPL levels. The voice coil inductance (Le) of 1.75 mH and a DC resistance (Re) of 5.2 ohms contribute to stable performance. A high mechanical Q (Qms) of 10.5 and low electromagnetic Q (Qes) of 0.33 further refine its response. Built to last, this subwoofer is the definitive choice for professionals seeking uncompromising low-end power and precision.
