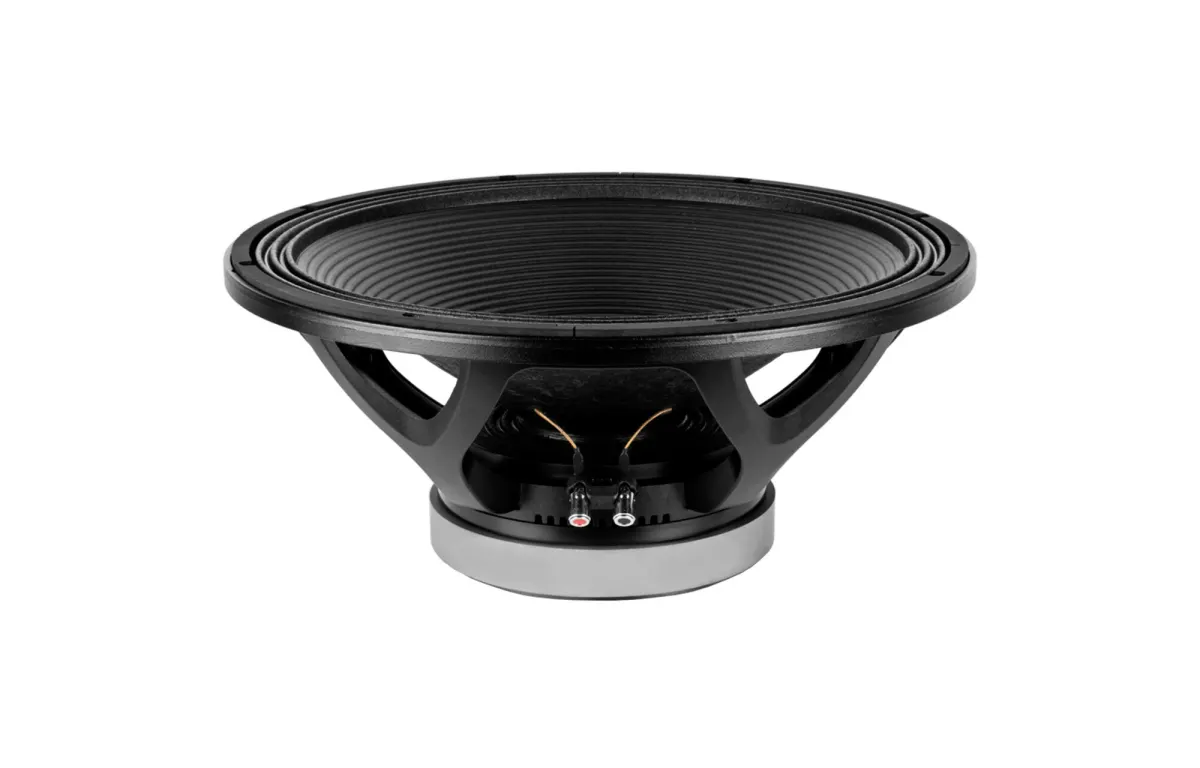

Beyma 18P1000FeV2/S Subwoofer

Name: Beyma 18P1000FeV2/S mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 18P1000FeV2/S
Price: 124690.00 HUF
Availability: LimitedAvailability

SKU: 18P1000FeV2/S

457.2 mm 8 Ω

Deliver deep, authoritative low-end response in large-format sound systems with this high-power subwoofer. Its 8mm linear excursion and 98dB sensitivity ensure efficient, controlled bass reproduction. The driver features a total Q factor of 0.32 for precise, tight performance.

124 690 Ft

(98 181 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 3 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	457.2 mm
Impedance	8 Ω
Resonance frequency (Fs)	33 Hz
Sensitivity (SPL at 1 m / 2.83 V)	98 dB
Continuous program performance	24 W

Maximum linear deflection (Xmax)	8 mm
Total Q (Qts)	0.32
Electromagnetic Q (Qes)	0.33
Mechanical Q (Qms)	10.5
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	1.75 mH
BL product (BL)	26.8 T·m
The surface area of the cone (Sd)	125 cm²
Equivalent volume (Iron)	23 l
Moving mass with air load (Mms)	221 g
Mechanical compliance of the suspension (Cms)	0.105 mm/N
Drive mechanical losses (RMS)	4.4 kg/s
Volume of displacement (Vd)	1000 cm³
Voice coil diameter	101.6 mm
Voice coil carrier	Copper
Subwoofer Series	Beyma P1000 Series
Dimensions (mm)	461 mm
Screw head diameter	438 mm
Diameter of the baffle cutout	415 mm
# Mounting holes	8
Diameter of the access opening	7.5 mm
Depth	212 mm

The Beyma 18P1000FeV2/S Subwoofer represents a formidable addition to any professional sound reinforcement system, engineered to deliver deep, authoritative low-end response with exceptional efficiency. This high-power driver is ideally suited for large-format sound systems, including concert venues, nightclubs, and touring installations where robust, controlled bass reproduction is paramount. Its design also makes it an excellent choice for high-end home cinema setups seeking cinematic impact.

Technically, this subwoofer boasts a generous 8mm linear excursion (Xmax) and a displacement volume (Vd) of 1, enabling it to move substantial air for powerful, articulate bass. With a sensitivity of 98dB SPL (1m/2.83V), it converts amplifier power into acoustic output with impressive efficiency. The motor system is characterised by a low total Q (Qts) of 0.32, combining a mechanical Q (Qms) of 10.5 with an electromagnetic Q (Qes) of 0.33, ensuring tight, well-damped transient response. The voice coil inductance (Le) is 1.75mH, and the DC resistance (Re) is 5.2 ohms. The subwoofer features a nominal diameter of 457.2mm, a mounting cut-out diameter of 415mm, and a bolt circle diameter of 438mm with eight mounting holes. Its depth measures 212mm, and the mechanical losses (Rms) are rated at 4.4. This combination of features guarantees reliable, high-output performance for the most demanding bass applications.
