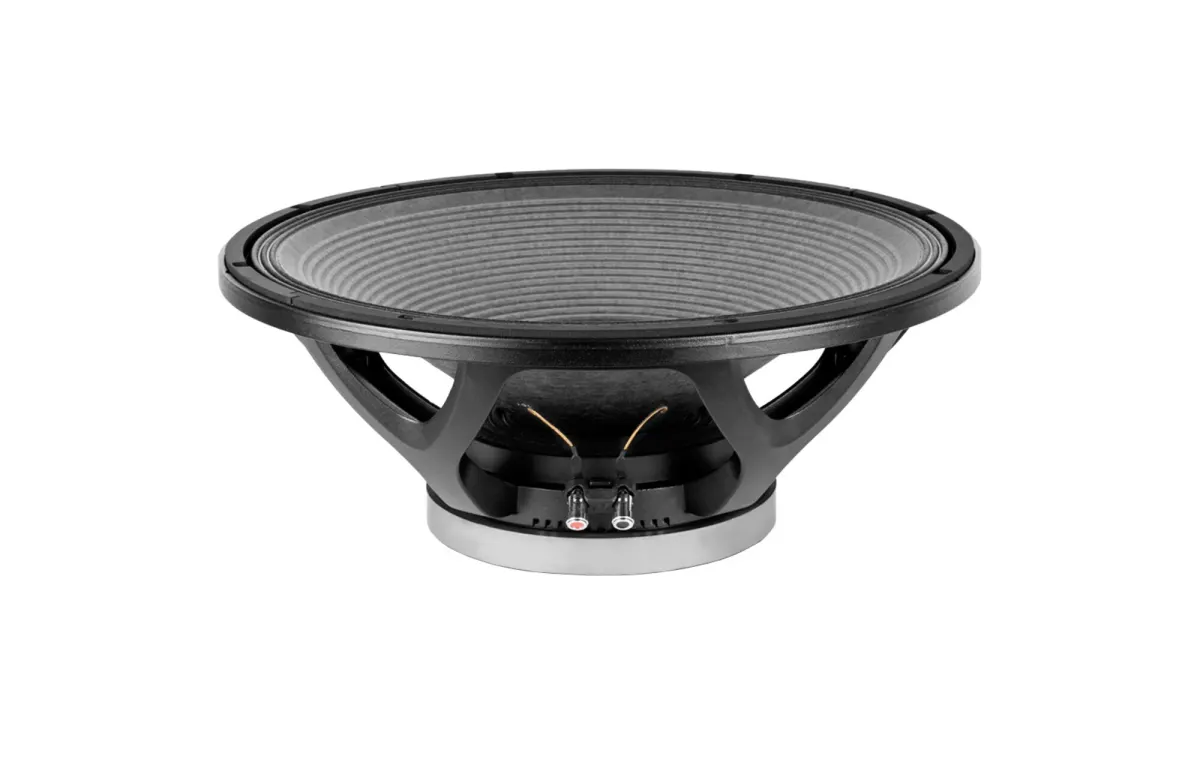

Beyma 18LX60V2/S Subwoofer
SKU:
18LX60V2/S
457.2 mm
8 Ω
Deliver deep, authoritative low-frequency response for professional sound reinforcement with this high-excursion subwoofer. Its 98 dB sensitivity ensures efficient power handling, while the total Q factor of 0.48 provides controlled, accurate bass reproduction.
105 890 Ft
(83 378 Ft + VAT)
Own warehouse
Out of stock
Külső raktár 2.
6 pcs
Aug 6.
Fast Delivery
2-5 working days
Secure Payment
Barion & SSL protection
14 Days Exchange
We take it back without question
Technical data
| Nominal diameter | |
| Impedance | |
| Resonance frequency (Fs) | |
| Sensitivity (SPL at 1 m / 2.83 V) | |
| Power tolerance (max) |
| Maximum linear deflection (Xmax) | |
| Total Q (Qts) | |
| Electromagnetic Q (Qes) | |
| Mechanical Q (Qms) | |
| DC resistance (Re) | |
| Voice coil inductance (L_e) | |
| BL product (BL) | |
| The surface area of the cone (Sd) | |
| Equivalent volume (Iron) | |
| Moving mass with air load (Mms) | |
| Mechanical compliance of the suspension (Cms) | |
| Drive mechanical losses (RMS) | |
| Volume of displacement (Vd) | |
| Woofer type | |
| Voice coil diameter | |
| Subwoofer Series | |
| Dimensions (mm) | |
| Screw head diameter | |
| Diameter of the baffle cutout | |
| # Mounting holes | |
| Diameter of the access opening | |
| Depth |
The Beyma 18LX60V2/S Subwoofer represents a formidable choice for those seeking deep, authoritative low-frequency response in professional sound reinforcement applications. Engineered to deliver exceptional performance, this high-excursion driver is ideally suited for use in high-quality PA systems, nightclubs, and touring installations where robust and articulate bass is paramount. Its design also lends itself well to custom enclosure builds for audiophiles demanding precise, room-filling low-end reproduction.
Technically, the 18LX60V2/S boasts a 98 dB sensitivity (1m/2.83V), ensuring efficient power handling and impressive output from modest amplifier power. The driver features a total Q (Qts) of 0.48, with a mechanical Q (Qms) of 15.7 and an electromagnetic Q (Qes) of 0.5, offering a well-damped response suitable for both ported and sealed enclosures. A maximum linear excursion (Xmax) of 8 mm and a displacement volume (Vd) of 1056 cm³ allow for significant air movement, delivering the deep, controlled bass required for impactful sound. The 5.1 ohm DC resistance (Re) and 2.1 mH voice coil inductance (Le) contribute to stable performance, while the robust construction, with a nominal diameter of 457.2 mm and eight mounting holes on a 438 mm bolt circle, ensures secure integration. This subwoofer is a reliable foundation for any serious low-frequency system.
Technically, the 18LX60V2/S boasts a 98 dB sensitivity (1m/2.83V), ensuring efficient power handling and impressive output from modest amplifier power. The driver features a total Q (Qts) of 0.48, with a mechanical Q (Qms) of 15.7 and an electromagnetic Q (Qes) of 0.5, offering a well-damped response suitable for both ported and sealed enclosures. A maximum linear excursion (Xmax) of 8 mm and a displacement volume (Vd) of 1056 cm³ allow for significant air movement, delivering the deep, controlled bass required for impactful sound. The 5.1 ohm DC resistance (Re) and 2.1 mH voice coil inductance (Le) contribute to stable performance, while the robust construction, with a nominal diameter of 457.2 mm and eight mounting holes on a 438 mm bolt circle, ensures secure integration. This subwoofer is a reliable foundation for any serious low-frequency system.
