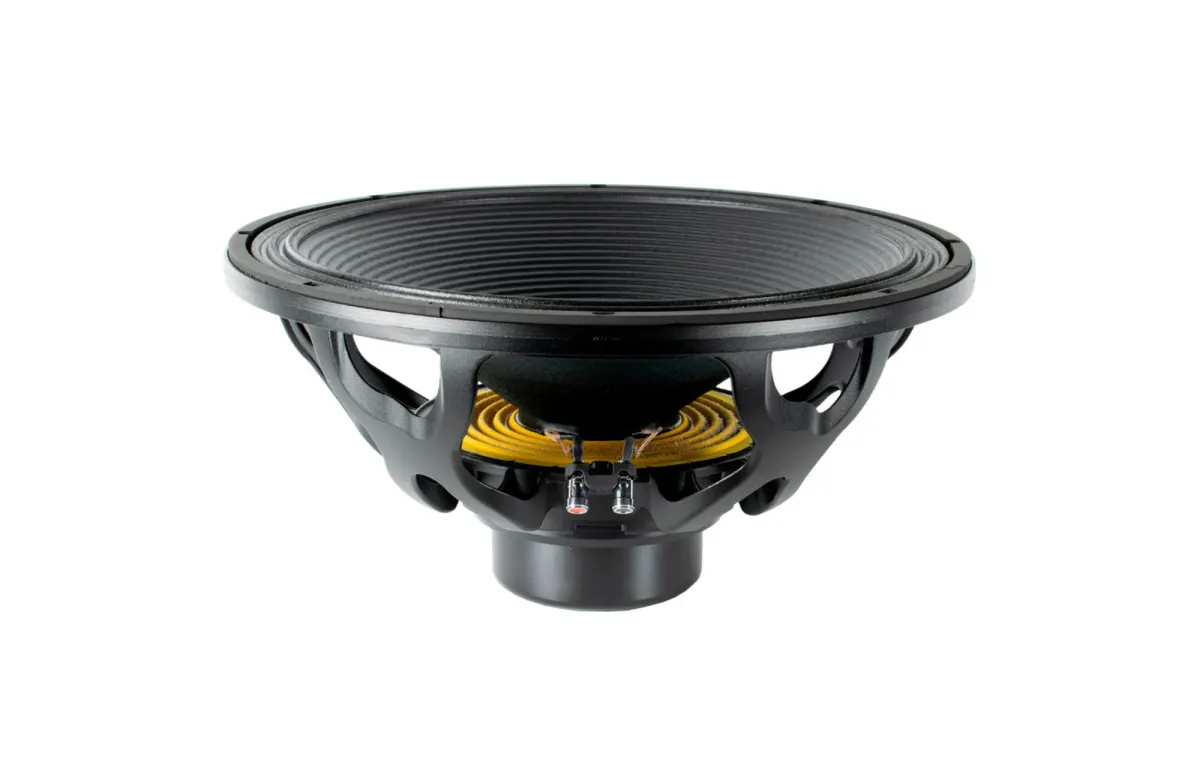

Beyma 18LEX1200Nd Subwoofer

Name: Beyma 18LEX1200Nd mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 18LEX1200Nd
Price: 134590.00 HUF
Availability: LimitedAvailability

SKU: 18LEX1200Nd

457.2 mm 8 Ω

Deliver deep, authoritative low-end response in large enclosures with this high-excursion subwoofer. Its robust design ensures high power handling and controlled bass reproduction. The total Q factor (Qts) of 0.33 makes it suitable for vented or bandpass designs.

134 590 Ft

(105 976 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 7 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	457.2 mm
Impedance	8 Ω
Resonance frequency (Fs)	36 Hz
Sensitivity (SPL at 1 m / 2.83 V)	98 dB
Power tolerance (max)	24 W

Maximum linear deflection (Xmax)	11 mm
Total Q (Qts)	0.33
Electromagnetic Q (Qes)	0.35
Mechanical Q (Qms)	10.9
DC resistance (Re)	5.3 Ω
Voice coil inductance (L_e)	1.7 mH
BL product (BL)	26.4 T·m
The surface area of the cone (Sd)	1255 cm²
Equivalent volume (Iron)	219 l
Moving mass with air load (Mms)	2 g
Mechanical compliance of the suspension (Cms)	0.1 mm/N
Drive mechanical losses (RMS)	4.1 kg/s
Volume of displacement (Vd)	1300 cm³
Woofer type	D6S Audio DAC
Voice coil diameter	101.6 mm
Magnetic material	Neodymium
Subwoofer Series	Beyma LEX Series
Dimensions (mm)	462 mm
Screw head diameter	44 mm
Diameter of the baffle cutout	415 mm
Depth	225 mm

The Beyma 18LEX1200Nd Subwoofer represents a pinnacle of low-frequency engineering, designed to deliver deep, authoritative bass with exceptional clarity and control. This high-excursion driver is purpose-built for demanding audio applications where uncompromising performance is required. Whether you are constructing a high-end home cinema system, a professional sound reinforcement rig for live events, or a competition-grade car audio installation, this subwoofer excels in large enclosures where its powerful motor system can truly shine. Its robust construction ensures reliable operation even under sustained high-power conditions, making it an ideal choice for both bass enthusiasts and audio professionals seeking reference-level low-end reproduction.

Technically, the 18LEX1200Nd features a substantial 457.2 mm nominal diameter with a maximum linear excursion (Xmax) of 11 mm, resulting in a displacement volume (Vd) of 13 litres. The driver achieves a sensitivity of 98 dB SPL (1m/2.83V) and exhibits a total Q factor (Qts) of 0.33, with a low electrical Q (Qes) of 0.35 and a high mechanical Q (Qms) of 10.9. The voice coil inductance (Le) is 1.7 mH, while the DC resistance (Re) measures 5.3 ohms. With a mounting depth of 225 mm and a baffle cut-out diameter of 415 mm, this subwoofer is engineered for precise integration into custom enclosures, delivering controlled, high-impact bass that defines the listening experience.
