BEYMA | Subwoofer

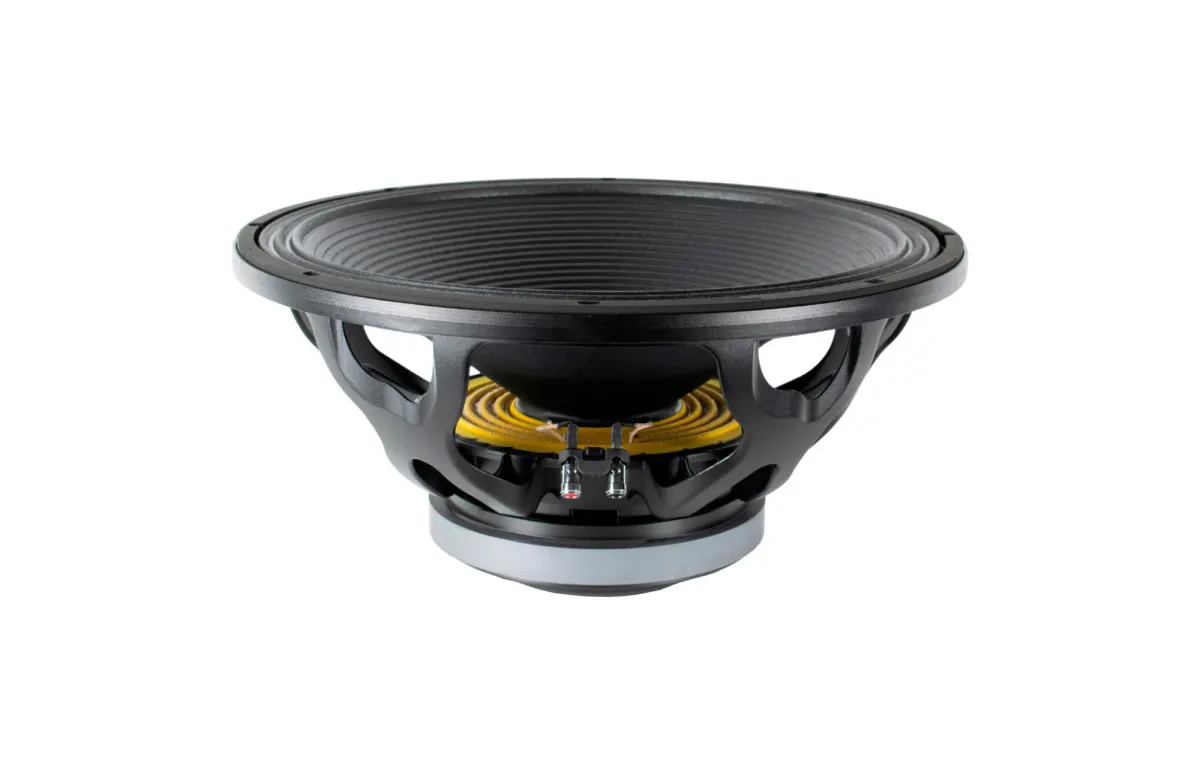

Beyma 18LEX1200Fe Subwoofer

Name: Beyma 18LEX1200Fe mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 18LEX1200Fe
Price: 114790.00 HUF
Availability: LimitedAvailability

SKU: 18LEX1200Fe

457.2 mm 8 Ω

Deliver powerful, low-distortion bass for professional sound reinforcement with this high-excursion subwoofer. It features a total Q factor of 0.38 and a sensitivity of 97 dB SPL at 1 metre with 2.83V input.

114 790 Ft

(90 386 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 2 pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	457.2 mm
Impedance	8 Ω
Resonance frequency (Fs)	32 Hz
Sensitivity (SPL at 1 m / 2.83 V)	97 dB
Continuous program performance	24 W

Maximum linear deflection (Xmax)	11 mm
Total Q (Qts)	0.38
Electromagnetic Q (Qes)	0.39
Mechanical Q (Qms)	12.2
DC resistance (Re)	5.3 Ω
Voice coil inductance (L_e)	1.21 mH
BL product (BL)	23.2 T·m
The surface area of the cone (Sd)	1255 cm²
Equivalent volume (Iron)	277 l
Moving mass with air load (Mms)	2 g
Mechanical compliance of the suspension (Cms)	0.124 mm/N
Drive mechanical losses (RMS)	3.2 kg/s
Volume of displacement (Vd)	1300 cm³
Woofer type	D6S Audio DAC
Voice coil diameter	101.6 mm
Dual voice coil	DUO dual-layer inner/outer copper voice coil
Voice coil carrier	Copper
Magnetic material	Ceramic ferrite
Subwoofer Series	Beyma LEX Series
Dimensions (mm)	462 mm
Screw head diameter	44 mm
Diameter of the baffle cutout	415 mm
Depth	225 mm

The Beyma 18LEX1200Fe Subwoofer represents a formidable choice for those seeking authoritative, low-distortion bass reproduction in professional sound reinforcement environments. Engineered to deliver exceptional performance, this driver is ideally suited for high-demand applications such as live concert systems, nightclubs, and touring installations where clean, powerful low-end is essential. Its robust construction also makes it a compelling option for custom high-end home cinema setups, providing the visceral impact required for modern film soundtracks.

At the heart of this subwoofer lies a high-excursion design, boasting a maximum linear excursion (Xmax) of 11 mm and a displacement volume (Vd) of 13 litres, ensuring substantial air movement for deep, articulate bass. The driver exhibits a total Q factor (Qts) of 0.38, striking an excellent balance between transient response and low-frequency extension, making it suitable for both sealed and vented enclosures. With a sensitivity of 97 dB SPL at 1 metre with 2.83V, it delivers impressive output efficiency. The 5.3 ohm DC resistance (Re) and 1.21 mH voice coil inductance (Le) contribute to controlled performance, while the mechanical Q (Qms) of 12.2 and electromagnetic Q (Qes) of 0.39 further refine its response characteristics. Built on a 457.2 mm nominal diameter frame with a 415 mm baffle cut-out diameter and a depth of 225 mm, this subwoofer is a serious tool for achieving professional-grade bass.
