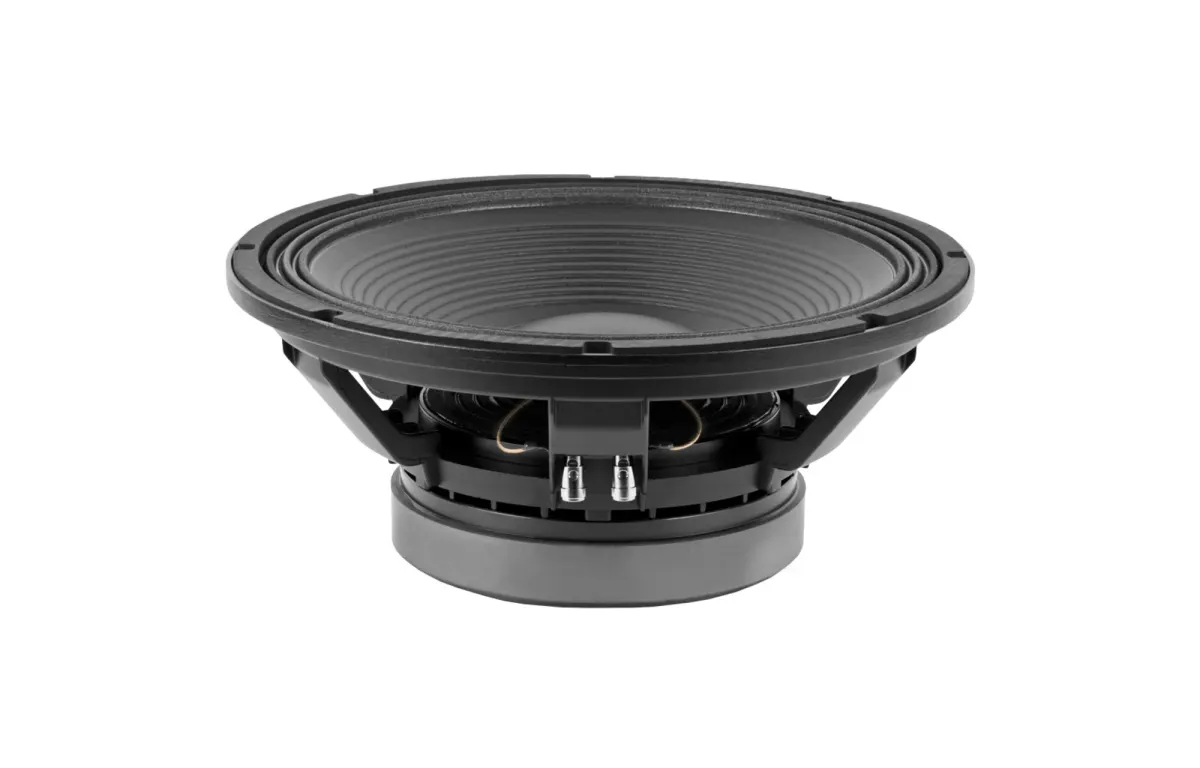

Beyma 15P1000Fe/V2 Subwoofer

Name: Beyma 15P1000Fe/V2 mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 15P1000Fe/V2
Price: 108790.00 HUF
Availability: InStock

SKU: 15P1000Fe/V2

381 mm 8 Ω

Deliver deep, authoritative low-end response in professional sound systems with this high-excursion 15-inch subwoofer. Its 98 dB sensitivity and 0.3 total Q factor ensure efficient, controlled bass reproduction. The driver achieves a maximum linear excursion of 8 mm.

108 790 Ft

(85 661 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10+ pcs Aug 6.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	381 mm
Impedance	8 Ω
Resonance frequency (Fs)	45 Hz
Sensitivity (SPL at 1 m / 2.83 V)	98 dB
Continuous program performance	2 W

Maximum linear deflection (Xmax)	8 mm
Total Q (Qts)	0.3
Electromagnetic Q (Qes)	0.31
Mechanical Q (Qms)	5.9
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	1.5 mH
BL product (BL)	27.4 T·m
The surface area of the cone (Sd)	855 cm²
Equivalent volume (Iron)	80.7 l
Moving mass with air load (Mms)	157 g
Mechanical compliance of the suspension (Cms)	0.078 mm/N
Drive mechanical losses (RMS)	7.6 kg/s
Volume of displacement (Vd)	684 cm³
Woofer type	D6S Audio DAC
Voice coil diameter	101.6 mm
Voice coil carrier	Copper
Magnetic material	FEA-optimized magnetic circuit
Dimensions (mm)	388 mm
Screw head diameter	37 mm
Diameter of the baffle cutout	352 mm
# Mounting holes	8
Diameter of the access opening	6.8 mm

The Beyma 15P1000Fe/V2 is a high-performance 15-inch subwoofer engineered to deliver deep, authoritative low-end response in professional sound reinforcement systems. With its robust construction and advanced design, this driver is ideally suited for demanding applications such as live concert venues, nightclubs, and installed sound systems where controlled, powerful bass is essential. Its high-excursion capability ensures it can reproduce the lowest frequencies with impressive impact and clarity, making it a reliable choice for both front-of-house and monitor configurations.

Technically, the 15P1000Fe/V2 boasts a sensitivity of 98 dB (1m/2.83V), ensuring efficient conversion of amplifier power into acoustic output. The total Q factor (Qts) of 0.3 indicates a well-damped response, ideal for sealed or vented enclosures requiring tight, accurate bass. With a maximum linear excursion (Xmax) of 8 mm and a displacement volume (Vd) of 684 cm³, this subwoofer can move substantial air for deep low-frequency reproduction. The 5.2 ohm DC resistance (Re) and 1.5 mH voice coil inductance (Le) contribute to stable electrical performance, while the 8-hole mounting pattern and 352 mm cutout diameter facilitate straightforward installation. Whether for touring systems or fixed installations, the Beyma 15P1000Fe/V2 offers the reliability and sonic authority demanded by audio professionals.
