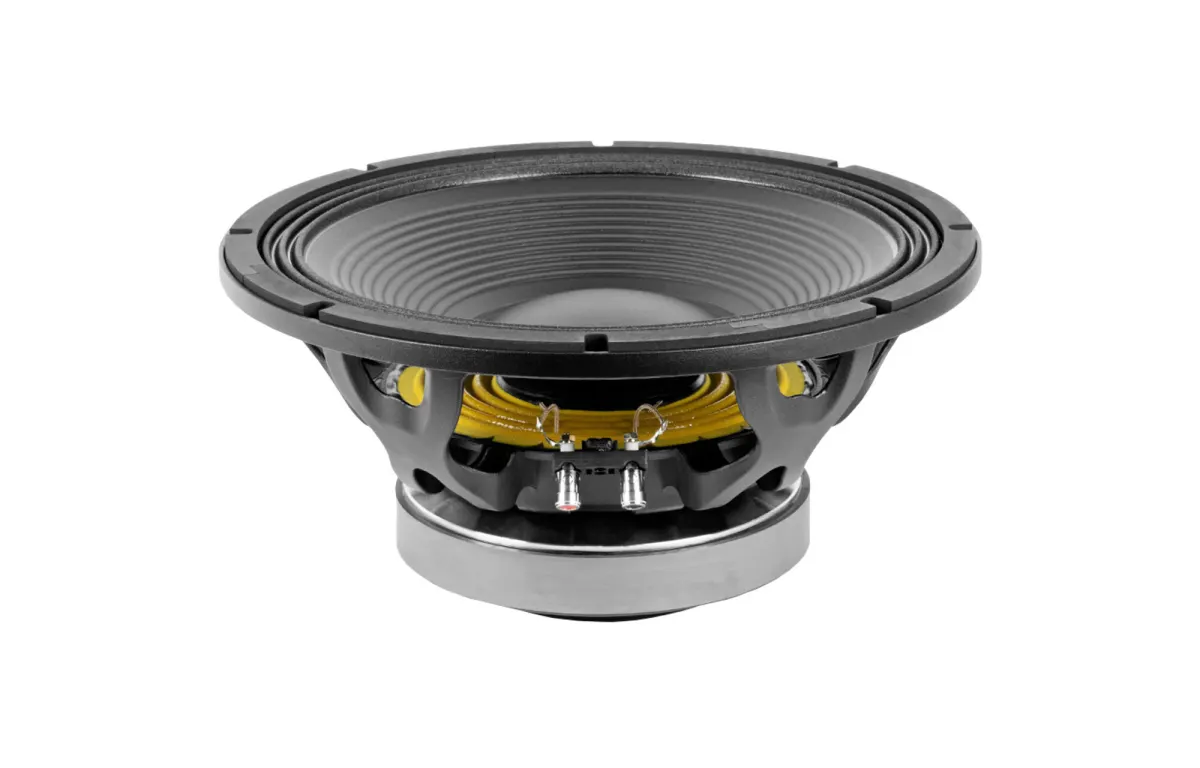

Beyma 15LEX1600Fe Subwoofer

Name: Beyma 15LEX1600Fe mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 15LEX1600Fe
Price: 124590.00 HUF
Availability: InStock

SKU: 15LEX1600Fe

381 mm 8 Ω

Achieve deep, accurate low-frequency reproduction in professional sound systems with this high-excursion driver. Its 96 dB sensitivity ensures efficient output, while the 0.33 total Q factor enables versatile enclosure design.

124 590 Ft

(98 102 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. 10+ pcs Aug 5.

Favorite

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	381 mm
Impedance	8 Ω
Resonance frequency (Fs)	38 Hz
Sensitivity (SPL at 1 m / 2.83 V)	96 dB
Continuous program performance	32 W

Maximum linear deflection (Xmax)	13 mm
Total Q (Qts)	0.33
Electromagnetic Q (Qes)	0.34
Mechanical Q (Qms)	6.9
DC resistance (Re)	5.3 Ω
Voice coil inductance (L_e)	1.7 mH
BL product (BL)	25.8 T·m
The surface area of the cone (Sd)	88 cm²
Equivalent volume (Iron)	106 l
Moving mass with air load (Mms)	179 g
Mechanical compliance of the suspension (Cms)	0.097 mm/N
Drive mechanical losses (RMS)	6.2 kg/s
Volume of displacement (Vd)	1144 cm³
Woofer type	D6S Audio DAC
Voice coil diameter	101.6 mm
Magnetic material	Ceramics
Dimensions (mm)	393 mm
Screw head diameter	373 mm
Diameter of the baffle cutout	352 mm
# Mounting holes	8
Diameter of the access opening	7 mm
Depth	19 mm

The Beyma 15LEX1600Fe Subwoofer represents a significant advancement in professional low-frequency reproduction, engineered to deliver exceptional depth and accuracy for demanding audio environments. This high-excursion driver is ideally suited for use in touring sound systems, fixed installations, and high-end home theatre setups where precise, powerful bass is essential. Its robust construction and carefully optimised parameters make it an excellent choice for both vented and sealed enclosure designs, offering versatility for system integrators and audio professionals alike.

Technically, the 15LEX1600Fe boasts a 96 dB sensitivity rating, ensuring efficient conversion of amplifier power into acoustic output. The driver features a total Q factor (Qts) of 0.33, which, combined with a mechanical Q (Qms) of 6.9 and an electromagnetic Q (Qes) of 0.34, allows for controlled, articulate bass response. With a maximum linear excursion (Xmax) of 13 mm and a displacement volume (Vd) of 1144, this subwoofer can move substantial air, producing deep, impactful low frequencies. The 1.7 mH voice coil inductance and 5.3 ohm DC resistance contribute to stable performance, while the 381 mm nominal diameter and 352 mm cutout diameter facilitate straightforward installation using eight mounting holes on a 373 mm bolt circle. This driver is a powerful, reliable foundation for any serious sound reinforcement system.
