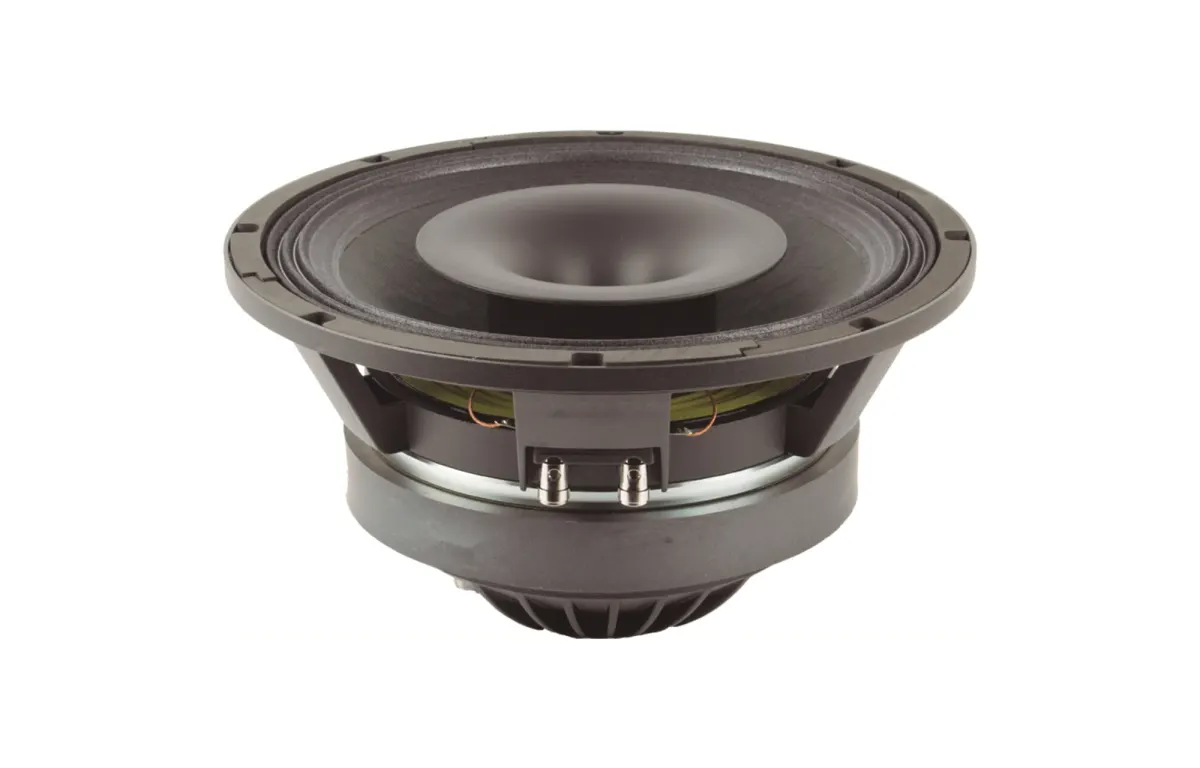

Beyma 12CXA400Fe Coaxial Woofer

The Beyma 12CXA400Fe Coaxial Woofer represents a masterful fusion of form and function, delivering exceptional audio performance in a space-efficient design. This professional-grade driver integrates a 254 mm bass woofer with a 44.5 mm compression driver on a single chassis, enabling powerful, coherent sound reproduction that eliminates the need for separate mounting and complex crossover alignment. Ideal for high-end sound reinforcement, fixed installations, and premium home theatre systems, this coaxial unit excels in applications where both clarity and low-end impact are paramount, from live music venues to dedicated listening rooms.

Technically, the 12CXA400Fe is engineered for precision and efficiency. With a sensitivity of 96 dB SPL at 1 metre for 2.83 V, it delivers impressive output with minimal amplifier power. The total Q factor of 0.25, combined with a mechanical Q of 7.2 and an electromagnetic Q of 0.26, ensures tight, controlled bass response. A maximum linear excursion of 6 mm and a displacement volume of 21 litres contribute to robust low-frequency performance, while the 1.1 mH voice coil inductance and 6.6 ohm DC resistance maintain stable operation. The woofer features an 8-hole mounting pattern with a cut-out diameter of 283 mm, facilitating straightforward installation. Combining high sensitivity with precise transient control, this coaxial driver is a superb choice for demanding audio professionals seeking uncompromising sound quality in a compact footprint.
