BEYMA | Coaxial driver

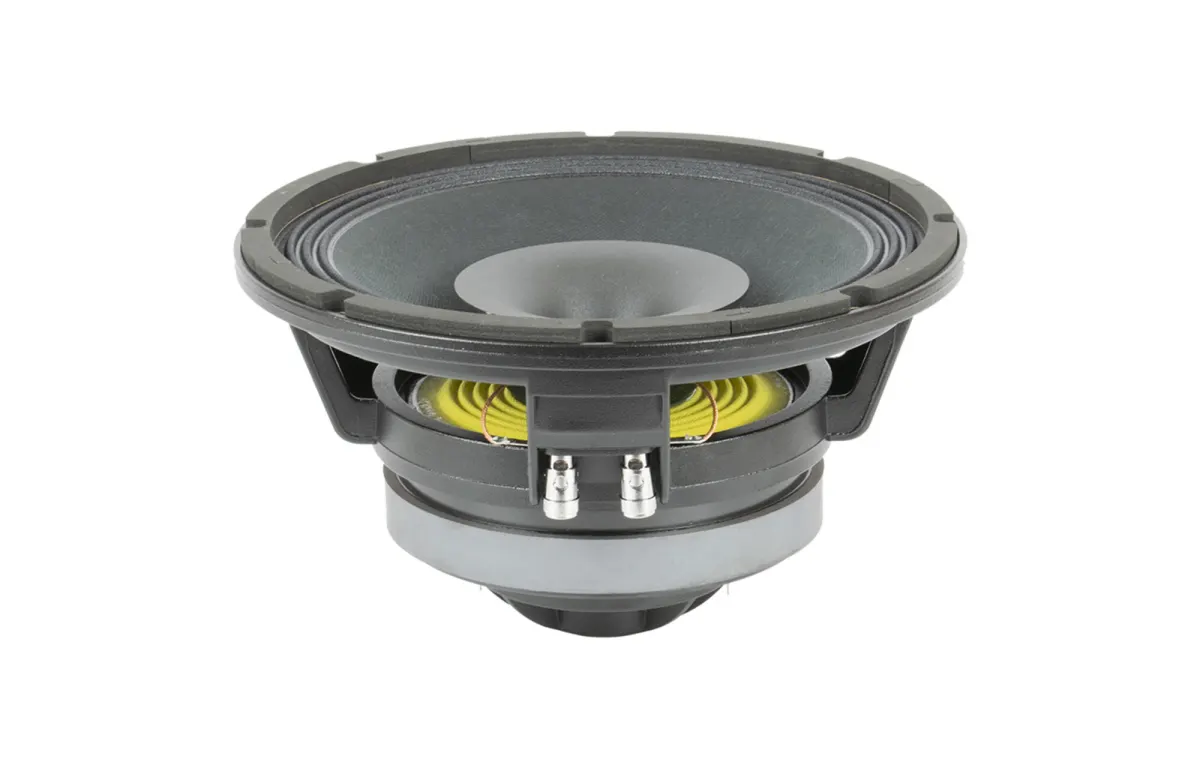

Beyma 10CX300/Fe Coaxial Woofer

Name: Beyma 10CX300/Fe mélysugárzó | HQ AudioParts
Brand: Beyma
SKU: 10CX300/Fe
Price: 111790.00 HUF
Availability: LimitedAvailability

SKU: 10CX300/Fe

254 mm subwoofer, 44.5 mm compression driver mm Woofer 8 Ω, Tweeter 16 Ω

Achieve clear, full-range sound in a compact two-way system with this coaxial driver. It integrates a 254 mm woofer and compression driver for coherent point-source output. The total Q factor is 0.38, ensuring controlled bass response in sealed or ported enclosures.

111 790 Ft

(88 024 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	254 mm subwoofer, 44.5 mm compression driver mm
Impedance	Woofer 8 Ω, Tweeter 16 Ω
Sensitivity (SPL at 1 m / 2.83 V)	96.5 dB
Continuous program performance	Subwoofer 600 W, Tweeter 100 W
Resonance frequency (Fs)	48 Hz

Maximum linear deflection (Xmax)	6.7 mm
Total Q (Qts)	0.38
Electromagnetic Q (Qes)	0.41
Mechanical Q (Qms)	5.3
DC resistance (Re)	5.2 Ω
Voice coil inductance (L_e)	0.4 mH
BL product (BL)	11.6 T·m
The surface area of the cone (Sd)	38 cm²
Equivalent volume (Iron)	63 l
Mechanical compliance of the suspension (Cms)	0.307 mm/N
Drive mechanical losses (RMS)	2 kg/s
Volume of displacement (Vd)	256 cm³
Woofer type	DL300 Audio DAC
Voice coil diameter	63.5 mm woofer, 44.5 mm compression driver mm
Magnetic material	Ferrite
Dimensions (mm)	260.5 mm
Screw head diameter	243.5 mm
Diameter of the baffle cutout	228 mm
# Mounting holes	8
Diameter of the access opening	5.5 mm
Depth	145 mm

The Beyma 10CX300/Fe Coaxial Woofer represents a sophisticated solution for those seeking exceptional full-range audio performance within a compact, two-way configuration. This driver seamlessly integrates a 254 mm woofer with a compression driver, delivering coherent point-source output that eliminates phase issues common in conventional designs. Ideal for professional sound reinforcement, high-end home cinema, and studio monitoring applications, this coaxial driver excels in environments where clarity and precise imaging are paramount. Its versatile design also suits custom installations and portable PA systems, offering robust performance across a wide frequency spectrum.

Technically, the 10CX300/Fe boasts a sensitivity of 96.5 dB SPL at 1m/2.83V, ensuring efficient power handling and impressive output. The total Q factor of 0.38, derived from a mechanical Q of 5.3 and an electromagnetic Q of 0.41, provides a well-damped response suitable for both sealed and vented enclosures. With a maximum linear excursion of 6.7 mm and a displacement volume of 256 cm³, this driver delivers authoritative low frequencies. The 0.4 mH voice coil inductance and 5.2 Ω DC resistance further contribute to its controlled performance. The 228 mm cutout diameter and eight mounting holes facilitate straightforward installation. Whether for stage monitoring or immersive listening, this coaxial woofer offers a refined, coherent soundstage with exceptional detail and dynamics.
